Chapter 4

Connecting Counter/Timer Signals

The DT3034 board with the DT740 screw terminal panel provides counter/timers that you can
use for the following operations:
• Event counting
• Frequency measurement
• Pulse output (rate generation, one-shot, and repetitive one-shot)
This section describes how to connect counter/timer signals to perform these operations.
Refer to

Connecting Event Counting Signals

Figure
DT740 screw terminal panel.
External
Gating
Switch
52
page 96 for more information on using the counter/timers.
13, Figure 14, and Figure 15
Signal Source
In this example, rising clock edges are
counted while the gate is active.

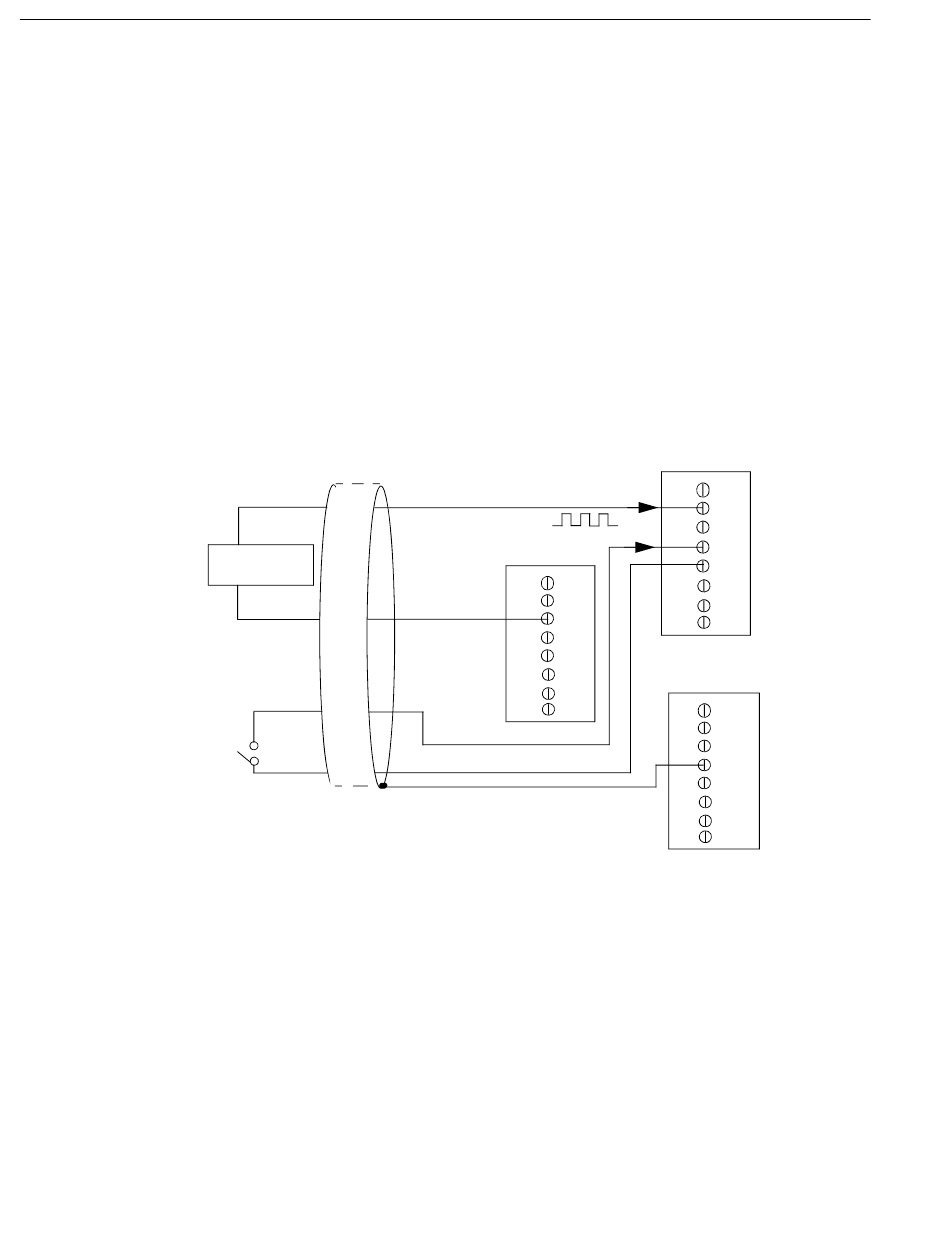

Figure 13: Connecting Event Counting Applications to the DT740
(Shown for Clock Input 0 and an External Gate 0)
show examples of connecting event counting signals to the
User Clock Input 0
TB83
Digital Ground
Gate 0
Digital Ground
Digital Shield
TB58
TB60
TB61
DT740
Panel
TB108
