Screw Terminal Assignments for the DT740
Table 32
panel.
TB
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
158

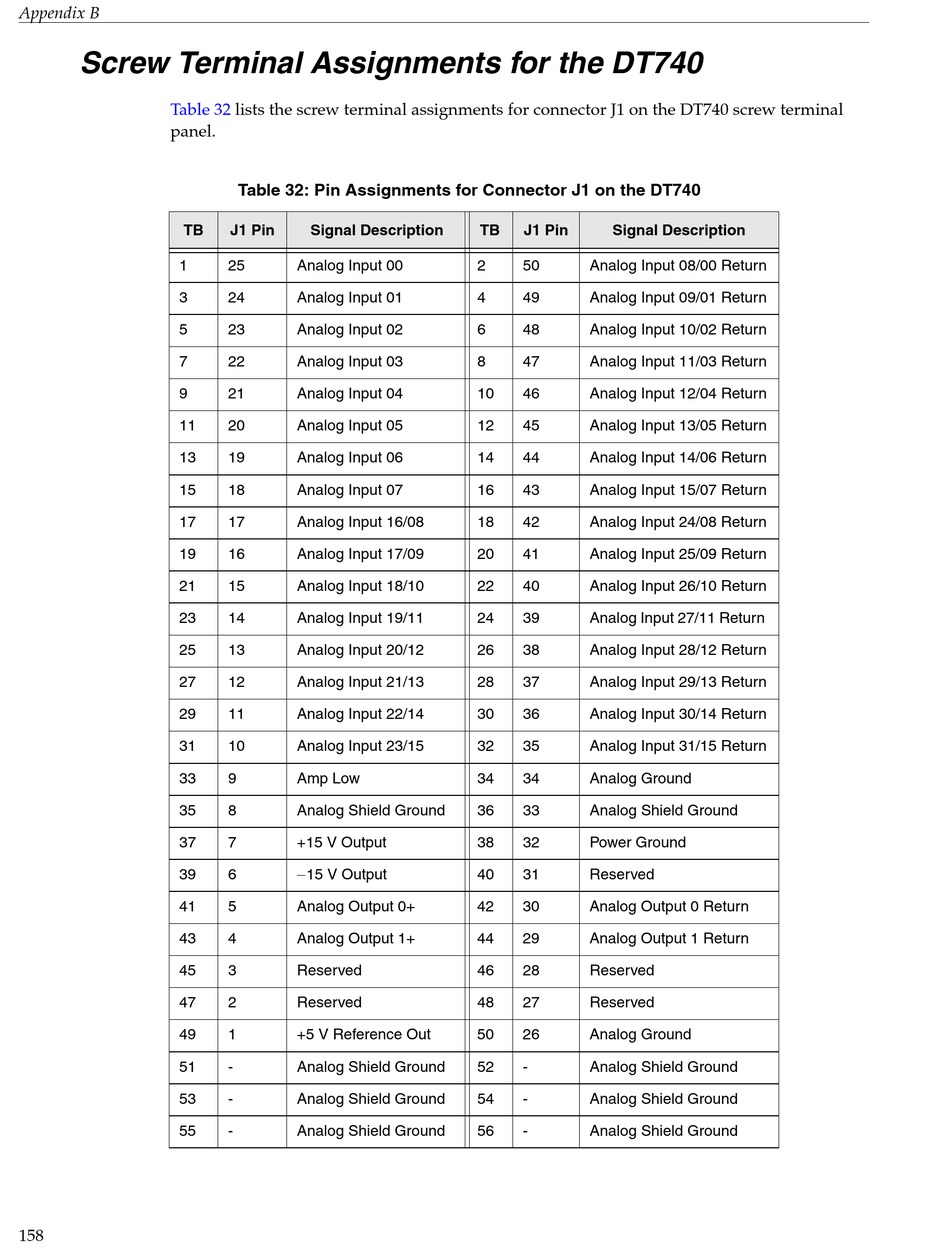

lists the screw terminal assignments for connector J1 on the DT740 screw terminal
Table 32: Pin Assignments for Connector J1 on the DT740
J1 Pin Signal Description
25 Analog Input 00
24 Analog Input 01
23 Analog Input 02
22 Analog Input 03
21 Analog Input 04
20 Analog Input 05
19 Analog Input 06
18 Analog Input 07
17 Analog Input 16/08
16 Analog Input 17/09
15 Analog Input 18/10
14 Analog Input 19/11
13 Analog Input 20/12
12 Analog Input 21/13
11 Analog Input 22/14
10 Analog Input 23/15
9 Amp Low
8 Analog Shield Ground
7 +15 V Output

6 15 V Output
5 Analog Output 0+
4 Analog Output 1+
3 Reserved
2 Reserved
1 +5 V Reference Out
- Analog Shield Ground
- Analog Shield Ground
- Analog Shield Ground
TB J1 Pin Signal Description
2 50 Analog Input 08/00 Return
4 49 Analog Input 09/01 Return
6 48 Analog Input 10/02 Return
8 47 Analog Input 11/03 Return
10 46 Analog Input 12/04 Return
12 45 Analog Input 13/05 Return
14 44 Analog Input 14/06 Return
16 43 Analog Input 15/07 Return
18 42 Analog Input 24/08 Return
20 41 Analog Input 25/09 Return
22 40 Analog Input 26/10 Return
24 39 Analog Input 27/11 Return
26 38 Analog Input 28/12 Return
28 37 Analog Input 29/13 Return
30 36 Analog Input 30/14 Return
32 35 Analog Input 31/15 Return
34 34 Analog Ground
36 33 Analog Shield Ground
38 32 Power Ground
40 31 Reserved
42 30 Analog Output 0 Return
44 29 Analog Output 1 Return
46 28 Reserved
48 27 Reserved
50 26 Analog Ground
52 - Analog Shield Ground
54 - Analog Shield Ground
56 - Analog Shield Ground
