Appendix B

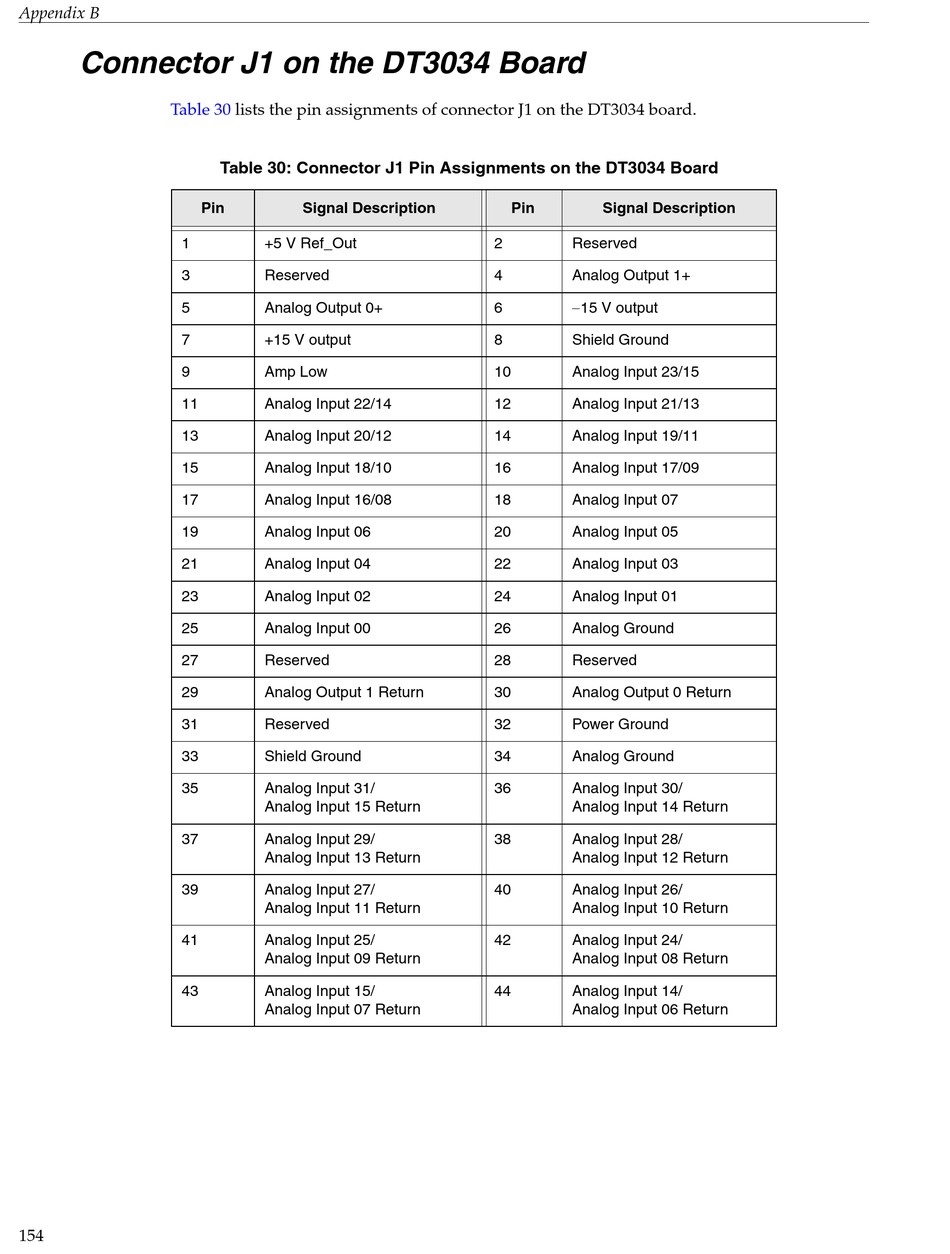

Connector J1 on the DT3034 Board
Table 30
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
154
lists the pin assignments of connector J1 on the DT3034 board.
Table 30: Connector J1 Pin Assignments on the DT3034 Board
Pin Signal Description
+5 V Ref_Out
Reserved
Analog Output 0+
+15 V output
Amp Low
Analog Input 22/14
Analog Input 20/12
Analog Input 18/10
Analog Input 16/08
Analog Input 06
Analog Input 04
Analog Input 02
Analog Input 00
Reserved
Analog Output 1 Return
Reserved
Shield Ground
Analog Input 31/
Analog Input 15 Return
Analog Input 29/
Analog Input 13 Return
Analog Input 27/
Analog Input 11 Return
Analog Input 25/
Analog Input 09 Return
Analog Input 15/
Analog Input 07 Return
Pin Signal Description
2 Reserved
4 Analog Output 1+
15 V output
6
8 Shield Ground
10 Analog Input 23/15
12 Analog Input 21/13
14 Analog Input 19/11
16 Analog Input 17/09
18 Analog Input 07
20 Analog Input 05
22 Analog Input 03
24 Analog Input 01
26 Analog Ground
28 Reserved
30 Analog Output 0 Return
32 Power Ground
34 Analog Ground
36 Analog Input 30/
Analog Input 14 Return
38 Analog Input 28/
Analog Input 12 Return
40 Analog Input 26/
Analog Input 10 Return
42 Analog Input 24/
Analog Input 08 Return
44 Analog Input 14/
Analog Input 06 Return
