Attaching and Configuring a Screw Terminal Panel

Attaching the DT740 Screw Terminal Panel

If you are using the DT3034 board, you first need to attach the DT740 screw terminal panel to
the board before you can wire signals.
Connector J1 on the screw terminal panel brings out all of the analog signals from connector J1
on the board; cable EP307 connects connector J1 on the screw terminal panel to the DT3034
board. Connector J2 on the screw terminal panel brings out all of the digital and
counter/timer signals from connector J2 on the board; cable EP308 connects connector J2 on
the screw terminal panel to the DT3034 board.

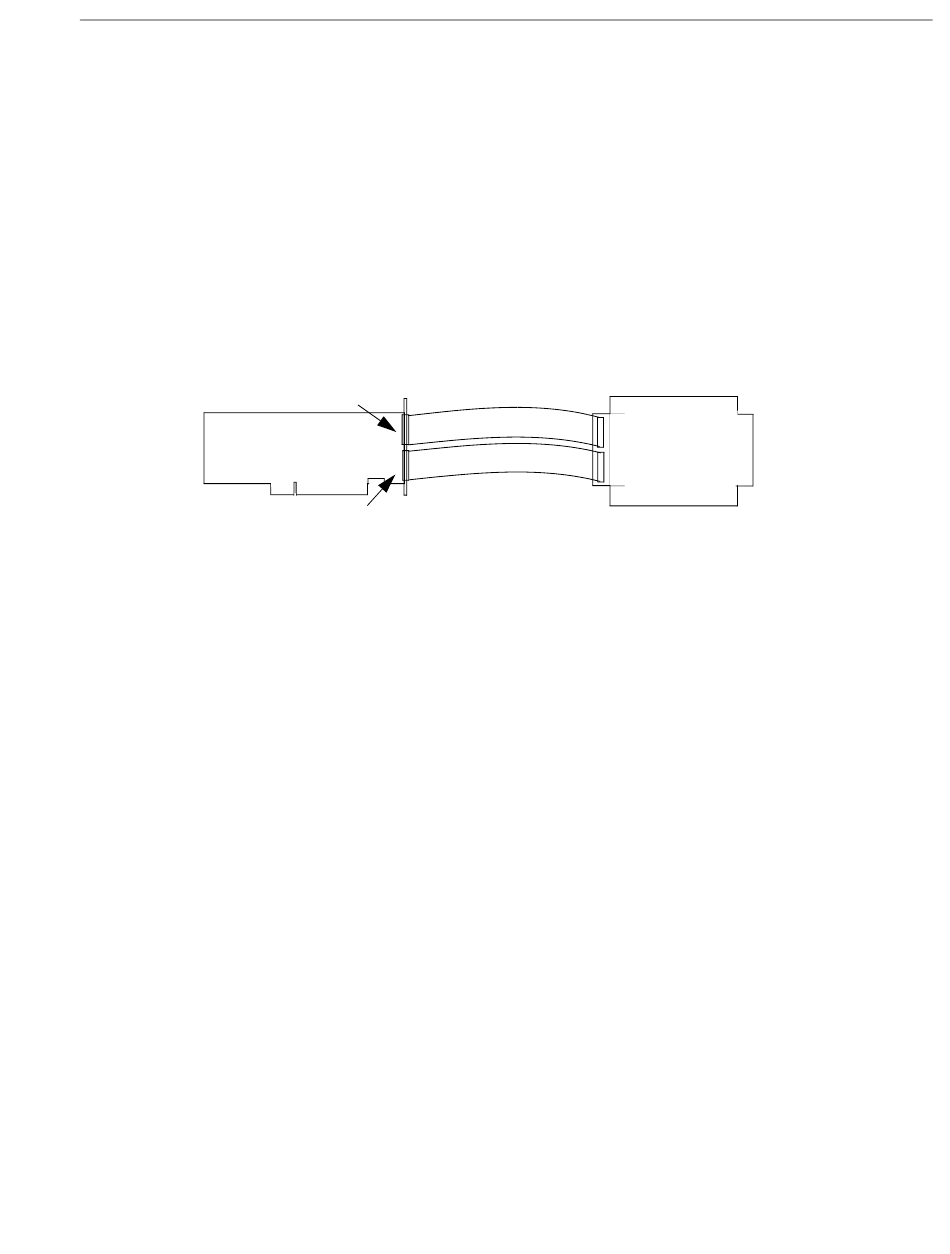

Figure 3 illustrates how to attach the DT740 screw terminal panel to the DT3034 board.
Analog I/O
Connector (J1)
EP307 Cable
DT3034 Board
J1
DT740 Screw
Terminal Panel
EP308 Cable
J2
Digital I/O
Connector (J2)
Figure 3: Attaching the DT740 Screw Terminal Panel to the DT3034 Board
35
