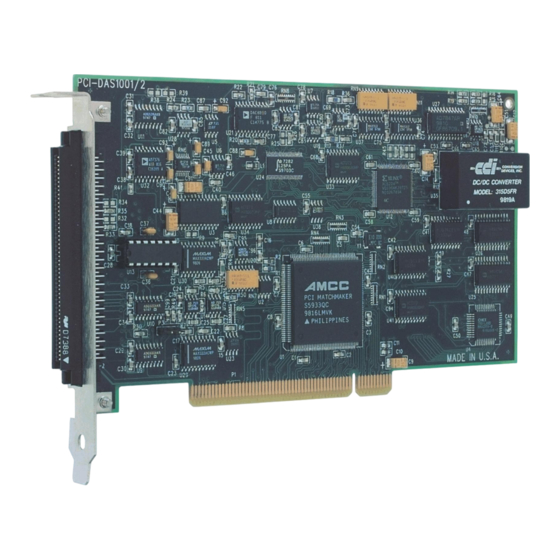

Find the Measurement Computing PCI-DAS1001 at our website:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-DAS1001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Measurement Computing PCI-DAS1001

  • Page 1 (217) 352-9330 | Click HERE Find the Measurement Computing PCI-DAS1001 at our website:...
  • Page 2 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 PCI-DAS1001 Multifunction Analog & Digital I/O User's Guide Document Revision 3A, March, 2009 © Copyright 2009, Measurement Computing Corporation Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 4 Other product and company names mentioned herein are trademarks or trade names of their respective companies. © 2000 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
  • Page 5 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
  • Page 6: Table Of Contents

    Software features ..............................7 PCI-DAS1001 block diagram ..........................8 Chapter 2 Installing the PCI-DAS1001 ........................9 What is included with your PCI-DAS1001 ......................9 Hardware ..................................9 Additional documentation ..............................9 Optional components ................................ 9 Unpacking the PCI-DAS1001 .......................... 10 Installing the software ............................
  • Page 7: Preface

    About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DAS1001 so that you get the most out of its analog, digital, and timing I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources that can also help you get the most out of your board.
  • Page 8: Register-Level Programming

    You should use the Universal Library to control your board. Only experienced programmers should perform register-level programming. If you need to program at the register level in your application, refer to the Register Map for the PCI-DAS1001 Series (available at www.mccdaq.com/registermaps/RegMapSTC1000.pdf).
  • Page 9: Introducing The Pci-Das1001

    Introducing the PCI-DAS1001 Overview: PCI-DAS1001 features This manual explains how to install and use the PCI-DAS1001. This board is a multifunction analog and digital I/O board designed for the PCI bus. The PCI-DAS1001 provides either 16 single-ended or eight differential analog inputs. Input ranges are software-selectable as either bipolar or unipolar.
  • Page 10: Pci-Das1001 Block Diagram

    PCI-DAS1001 User's Manual Introducing the PCI-DAS1001 PCI-DAS1001 block diagram PCI-DAS1001 functions are illustrated in the block diagram shown here. Figure 1. PCI-DAS1001 functional block diagram Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 11: Installing The Pci-Das1001

    C100FF-x cable  Signal termination and conditioning accessories MCC provides signal termination and conditioning products for use with the PCI-DAS1001. Refer to the "Field wiring and signal termination" section for a complete list of compatible accessory products. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 12: Unpacking The Pci-Das1001

    Quick-Start.pdf. Installing the hardware The PCI-DAS1001 board is completely plug-and-play. There are no switches or jumpers to set on the board. Configuration is controlled by your system's BIOS. To install your board, follow the steps below. Install the MCC DAQ software before you install your board The driver needed to run your board is installed with the MCC DAQ software.
  • Page 13: Differential Input Mode

    PCI-DAS1001 User's Manual Installing the PCI-DAS1001 Differential input mode When all channels are configured for differential input mode, eight analog input channels are available. In this mode, the input signal is measured with respect to the low input. The input signal is delivered through three wires: ...
  • Page 14: Pinout - Main I/O Connector

    PCI-DAS1001 User's Manual Installing the PCI-DAS1001 Pinout – main I/O connector 8-channel differential mode Signal Name Signal Name PC +5V A/D Int. Pacer Output A/D External Trigger PC -12V A/D External Pacer PC GND CTR4 OUT PC +12V CTR4 GATE...
  • Page 15 PCI-DAS1001 User's Manual Installing the PCI-DAS1001 16-channel single-ended mode Signal Name Signal Name PC +5V A/D Int. Pacer Output A/D External Trigger In PC -12V A/D External Pacer PC GND CTR4 OUT PC +12V CTR4 GATE PC GND CTR4 CLK...
  • Page 16: Cables

    PCI-DAS1001 User's Manual Installing the PCI-DAS1001 Cables Cable is labeled “Pins 1-50”. The red stripe identifies pin # 1 Cable is labeled “Pins 51-100”. The red stripe identifies pin # 51 Figure 2. C100FF-x cable Field wiring and signal termination The table below lists the MCC screw terminal and signal conditioning boards that are compatible with the PCI-DAS1000.
  • Page 17: Calibrating The Board

    Calibration theory PCI-DAS1001 series boards are shipped fully calibrated from the factory with calibration coefficients stored in nvRAM. When using Universal Library at run time, these calibration factors are loaded into system memory and are automatically retrieved each time a different DAC/ADC range is specified.
  • Page 18: Chapter 4 Specifications

    Chapter 4 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input Table 1. Analog input specifications Parameter Specification A/D converter type 7800 Resolution 12 bits Number of channels 8 differential or 16 single-ended, software selectable Input ranges ±10 V, ±1 V, ±0.1 V, ±0.01 V, 0 to 10 V, 0 to 1 V, 0 to 0.1 V, 0 to 0.01 V.
  • Page 19: Analog Output

    PCI-DAS1001 User's Manual Specifications Analog output Table 2. Analog output specifications Parameter Specification D/A type AD7847AR Resolution 12 bits Number of channels Output ranges ±10 V, ±5 V, 0 to 5 V, 0 to 10 V. Each channel independently programmable.
  • Page 20: Counter Section

    PCI-DAS1001 User's Manual Specifications Counter section Table 4. Counter specifications Parameter Specification Counter type 82C54 Configuration Two 82C54 devices. 3 down counters per 82C54, 16 bits each  Source: ADC Clock. 82C54A: Counter 0 - ADC residual sample  Gate: Internal programmable source.
  • Page 21: Main Connector And Pin Out

    PCI-DAS1001 User's Manual Specifications Environmental Table 6. Environmental specifications Parameter Specification Operating temperature range 0 to 70 °C Storage temperature range -40 to 100 °C Humidity 0 to 90% non-condensing Main connector and pin out Connector type 100-pin high density Robinson Nugent Compatible cable C100FF-x, unshielded ribbon cable.
  • Page 22: 8-Channel Differential Mode Pin Out

    PCI-DAS1001 User's Manual Specifications 8-channel differential mode pin out Signal Name Signal Name LLGND FIRSTPORTA Bit 0 CH0 IN HI FIRSTPORTA Bit 1 CH0 IN LO FIRSTPORTA Bit 2 CH1 IN HI FIRSTPORTA Bit 3 CH1 IN LO FIRSTPORTA Bit 4...
  • Page 23: 16-Channel Single-Ended Mode Pin Out

    PCI-DAS1001 User's Manual Specifications 16-channel single-ended mode pin out Signal Name Signal Name LLGND FIRSTPORTA Bit 0 CH0 IN FIRSTPORTA Bit 1 CH8 IN FIRSTPORTA Bit 2 CH1 IN FIRSTPORTA Bit 3 CH9 IN FIRSTPORTA Bit 4 CH2 IN FIRSTPORTA Bit 5...
  • Page 24: Declaration Of Conformity

    Suite 1008 Norton, MA 02766 Category: Information technology equipment. Measurement Computing Corporation declares under sole responsibility that the product PCI-DAS1001 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EC EMC Directive 2004/108/EC: Electromagnetic Compatibility, EN 61326-1:2006 (IEC 61326-1:2005) Emissions: Group 1, Class B ...
  • Page 25 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
