TROUBLESHOOTING AND ELECTRICAL SYSTEM: FE400, KEY-START ENGINE
WIRING DIAGRAM
DRIVER SIDE
HEADLIGHT
Page 11a-8
2001/2002 Turf/Carryall 272 Gasoline Vehicle Maintenance and Service Manual
PASSENGER SIDE
HEADLIGHT

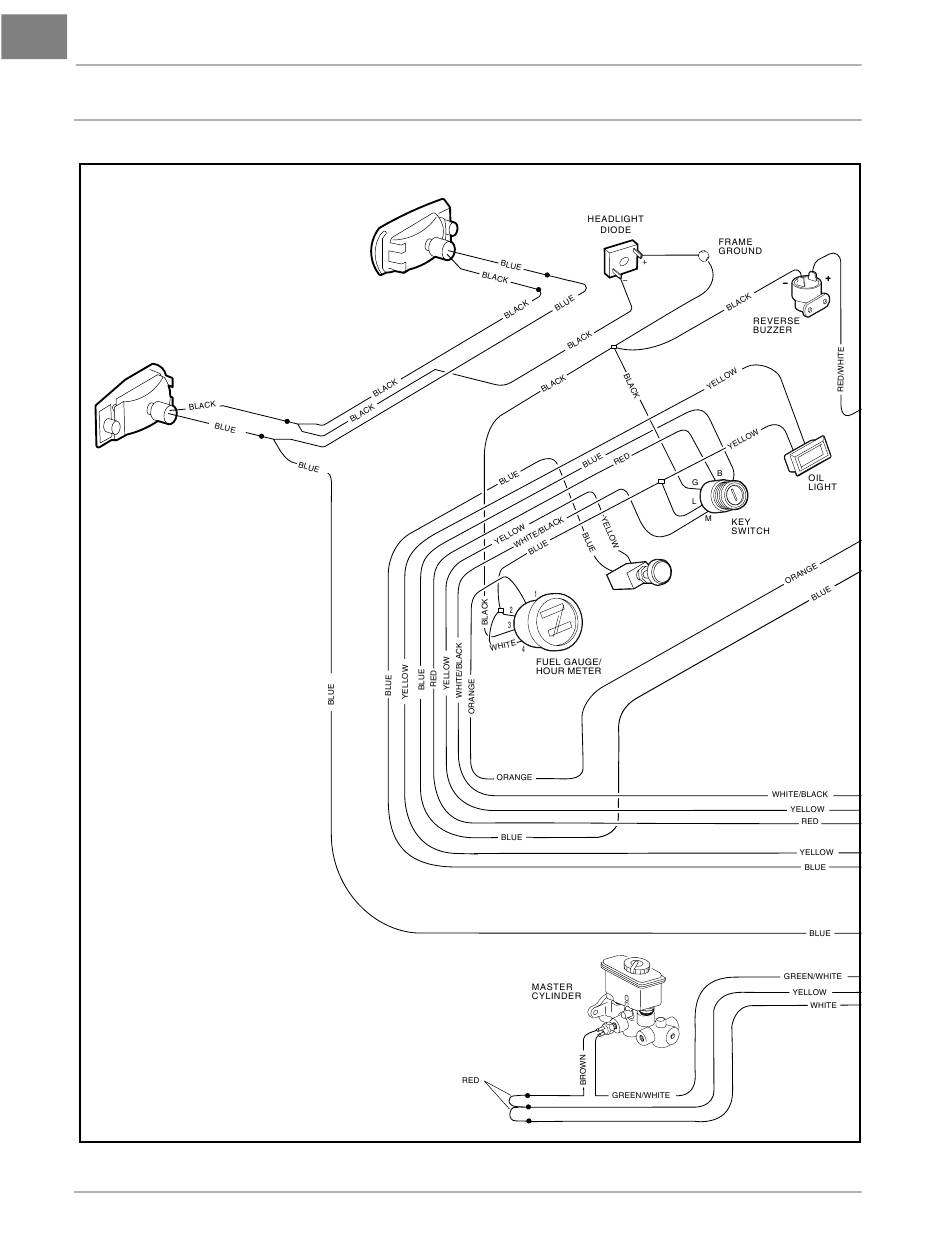

Figure 11a-2 Wiring Diagram for FE400 Key-Start Vehicles (Front)
Wiring Diagram
SONIC
WELD
SONIC
S
WELD
LIGHT
SWITCH
