V3800-CR-TE4,V3800-CR-TIE4, DM
5. Check the Fuel System
1. Check in accordance with "6.[2] FUEL SYSTEM INSPECTION
PROCEDURE". (Refer to page 1-S287)
OK
Go to "6. Check the Crankshaft Position Sensor".
NG
Repair in accordance with "6.[2] FUEL SYSTEM INSPECTION
PROCEDURE". (Refer to page 1-S287)

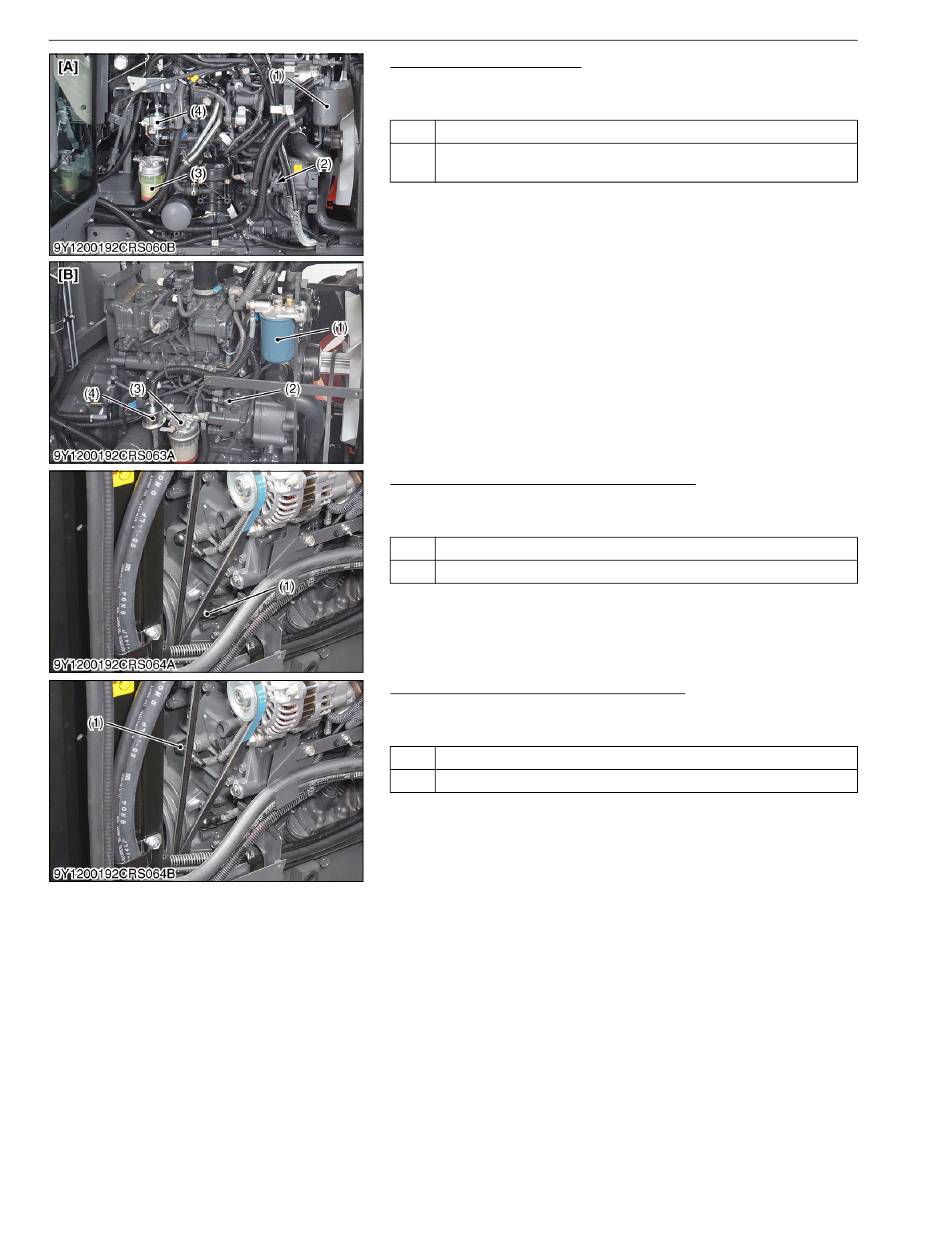

(1) Fuel Filter
(2) Supply Pump
(3) Water Separator
(4) Fuel Feed Pump
6. Check the Crankshaft Position Sensor
1. Refer to DTC P0335 and P0336, and implement checking of the
crankshaft position sensor.
OK
Go to "7. Check the Camshaft Position Sensor".
NG
Repair and replacement of the crankshaft position sensor-related parts.
(1) Crankshaft Position Sensor
(NE Sensor)
7. Check the Camshaft Position Sensor
1. Refer to DTC P0340 and P0341, and implement checking of the
camshaft position sensor.
OK
Go to "8. Check the Rail Pressure Sensor and Supply Pump".
NG
Repair and replacement of camshaft position sensor-related parts.
(1) Camshaft Position Sensor
(G Sensor)
