Set Software Trigger - HikRobot CoaXPress User Manual

External Trigger
Source
Link Trigger
Free Trigger
Click Trigger Selector > Trigger Source, and select Trigger Source according to actual demands.
The figure above is the graphical user interface from Matrox CoaXPress frame grabber client
software.

7.4.2 Set Software Trigger

Steps:
1. Click Acquisition Control > Trigger Selector.
2. Select On as Trigger Mode.
3. Select Software as Trigger Source, and click Execute in Trigger Software to send trigger
commands.
CoaXPress Area Scan Camera
Parameter
Acquisition Control >
Trigger Selector >
Trigger Source
Acquisition Control >
Trigger Selector >
Trigger Source

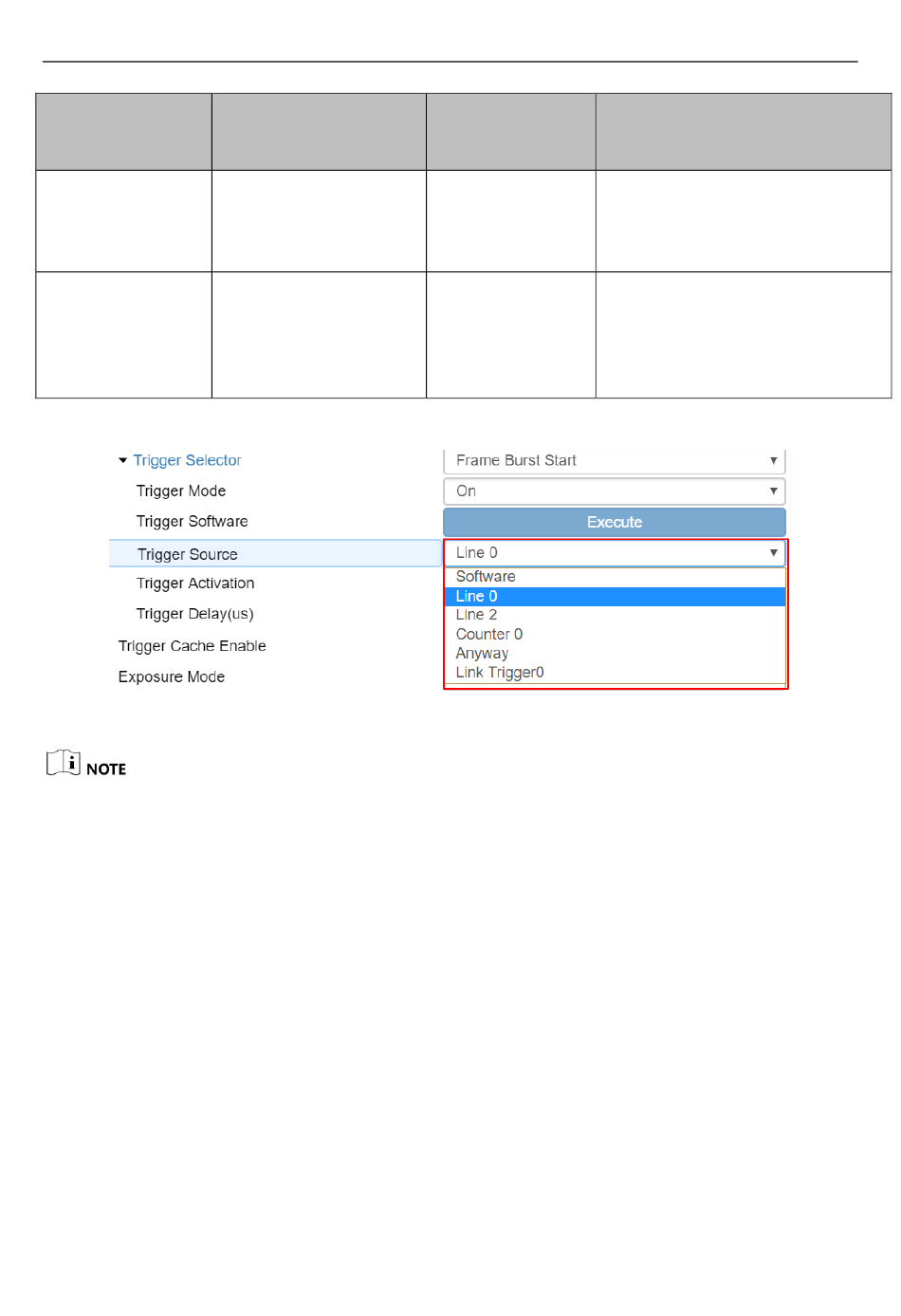

Figure 7-5 Select Trigger Source
User Manual
·
Parameter Value Principle
Link Trigger 0 The frame grabber sends trigger
signal to the camera to acquire
images.
Anyway Use software trigger, hardware
trigger, counter trigger and link
trigger to send signals to the
camera to acquire images.
