10.4 Set Pixel Format

The pixel format may differ by camera models.
The relation among ADC bit depth, pixel format and pixel size is shown below. Click Image Format
Control > Pixel Format, and set Pixel Format according to actual demands.
ADC Bit Depth
8
12
16
CoaXPress Area Scan Camera

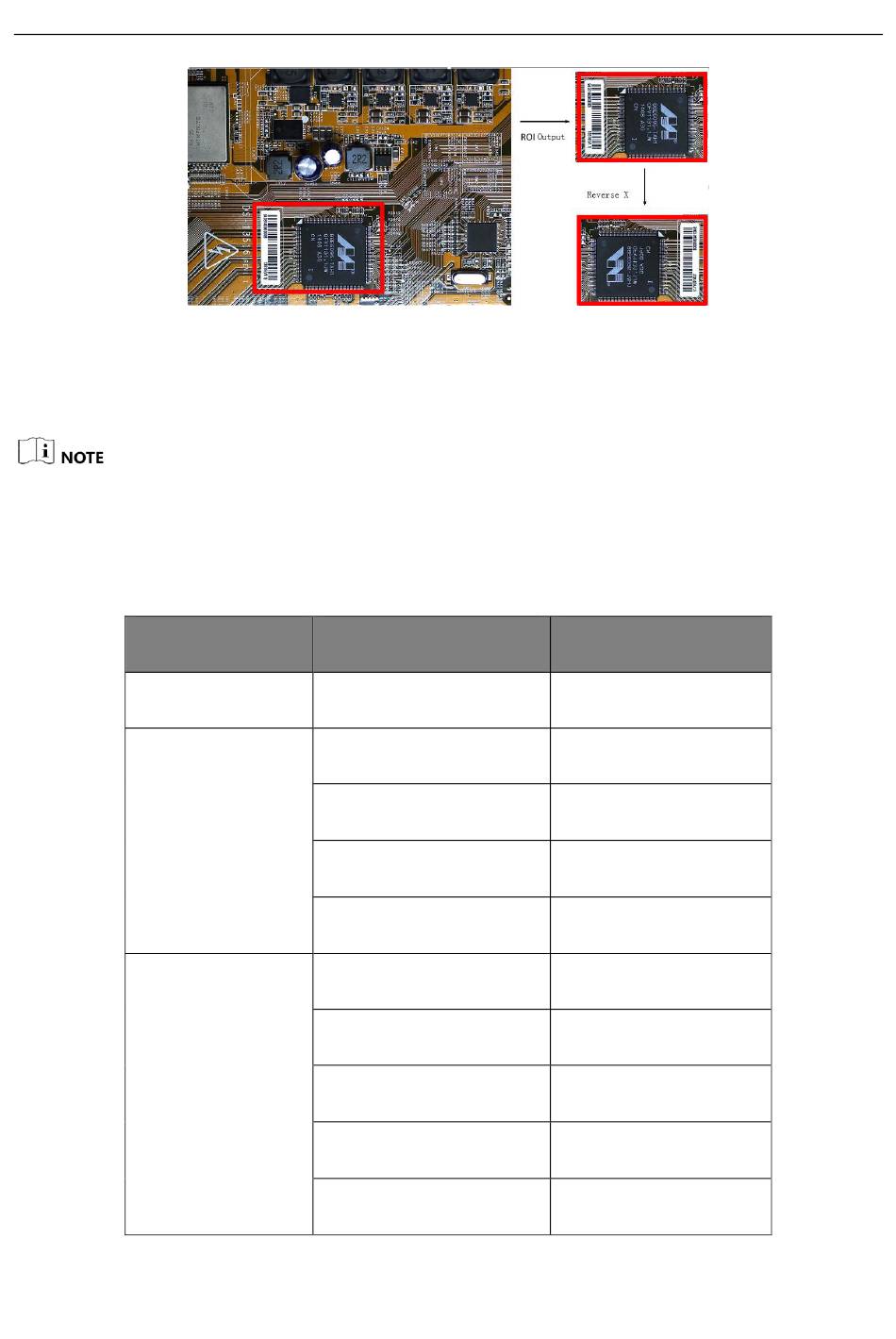

Figure 10-4 Image Reverse Comparison
Table 10-1 Description
Pixel Format
Mono 8
Mono 8, Bayer 8
Mono 10, Bayer 10
Mono 12, Bayer 12
RGB 8
Mono 8, Bayer 8
Mono 10, Bayer 10
Mono 12, Bayer 12
Mono 16, Bayer 16
RGB 8
User Manual
·
Pixel Size (Bits/Pixel)
8
8
10
12
24
8
10
12
16
24
