Chapter 3 Interface and Indicator

3.1 Interface Description

For different models of cameras, they all have a 12-pin Hirose connector, and pin definitions are as
follows.
You should refer to the table below and the label attached to the power and I/O cable to wire the
device.
No.
1 GND
2 DC_PWR
3 DC_PWR
4 OPT_IN-
5 OPT_OUT-
6 GND
7 GND
8 RS-232_RXD
9 RS-232_TXD
10 GPIO2
11 OPT_OUT+
12 OPT_IN+
CoaXPress Area Scan Camera

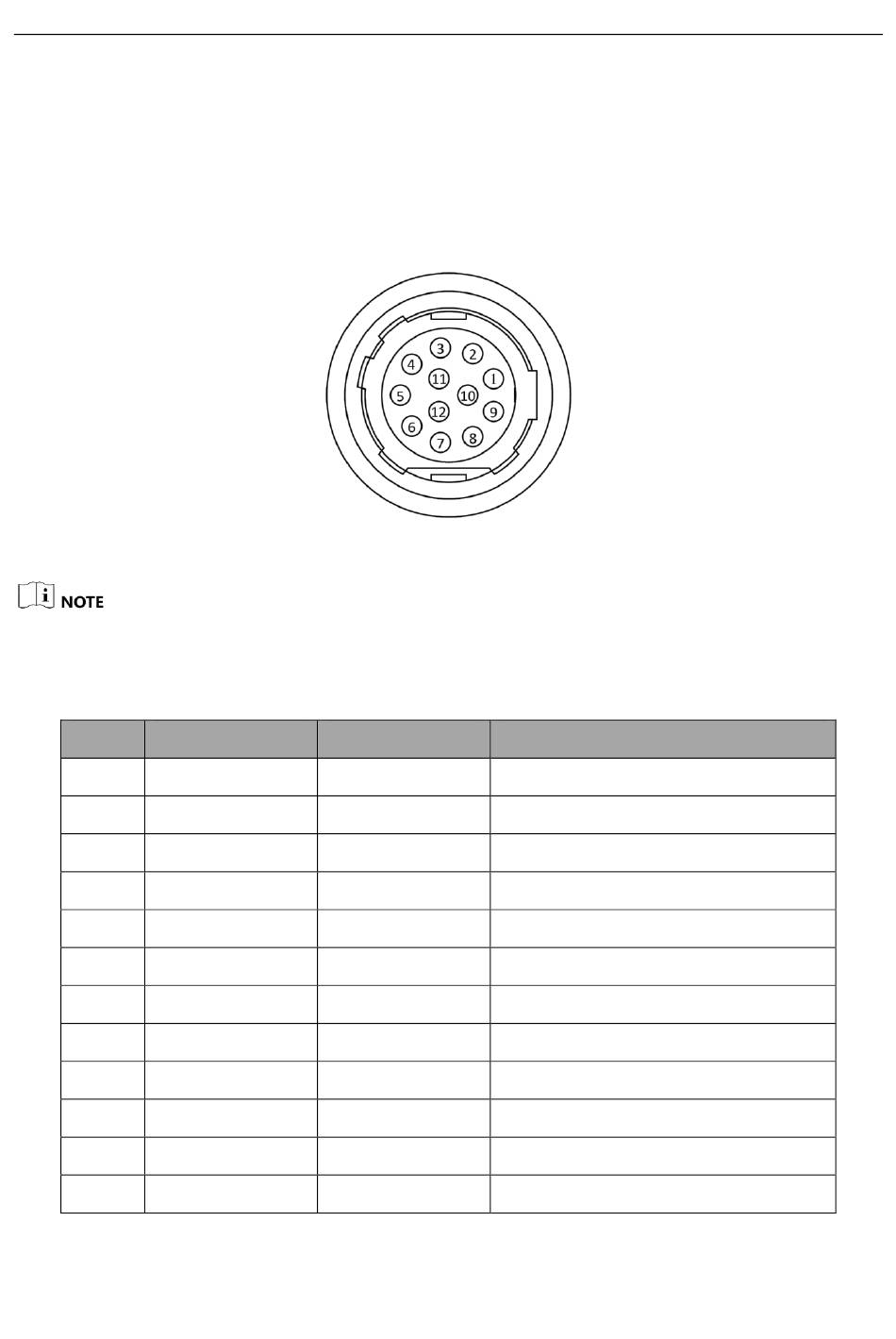

Figure 3-1 12-Pin Hirose Connector
Table 3-1 Pin Definitions
Signal I/O Signal Source
Line 2-
--
--
Line 0-
Line 1-
--
--
--
--
Line 2+
Line 1+
Line 0+
User Manual
·
Description
Camera power supply ground
Camera power supply
Camera power supply
Opto-isolated input signal ground
Opto-isolated output signal ground
Camera power supply ground
Camera power supply ground
RS-232 receives
RS-232 transmits
Input or output
Opto-isolated output
Opto-isolated input
