6.1 Global Shutter

For camera that supports global shutter, its exposure starts and ends in each line simultaneously.
After the exposure, data readout starts line by line. All pixels expose at the same time, then
readout at different time.

6.2 Rolling Shutter

For camera that supports rolling shutter, as soon as the exposure ends, the data readout starts
simultaneously. After the whole action, the rest of rows start to expose and read out one by one.
All pixels expose at the same time, then readout at different time.
CoaXPress Area Scan Camera

Chapter 6 Camera Features

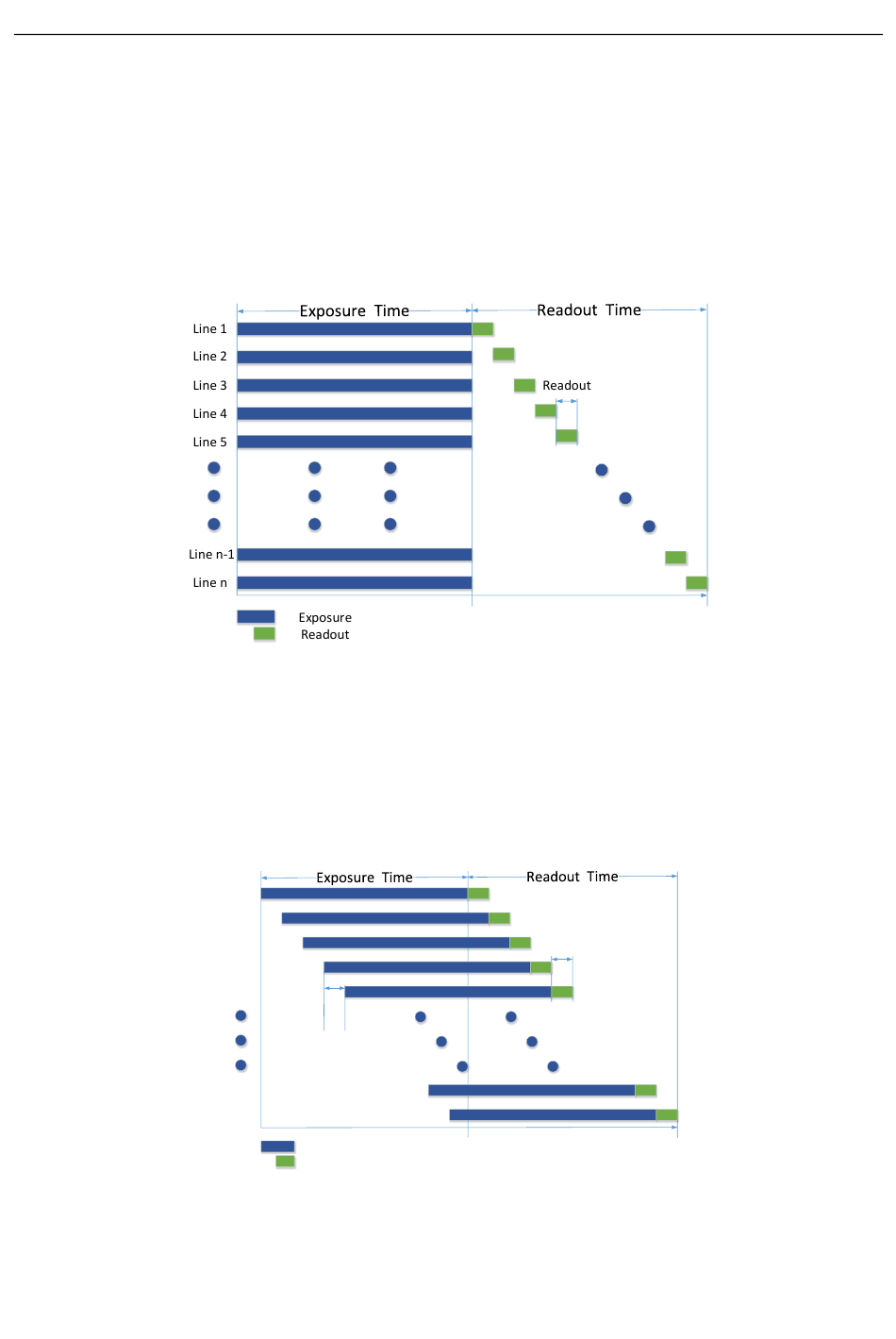

Figure 6-1 Global Shutter
