CoaXPress Area Scan Camera User Manual
·
You can set Trigger Delay according to actual demands, and its range is from 0 μs to 16000000 μs.
Figure 7-16 Set Trigger Delay

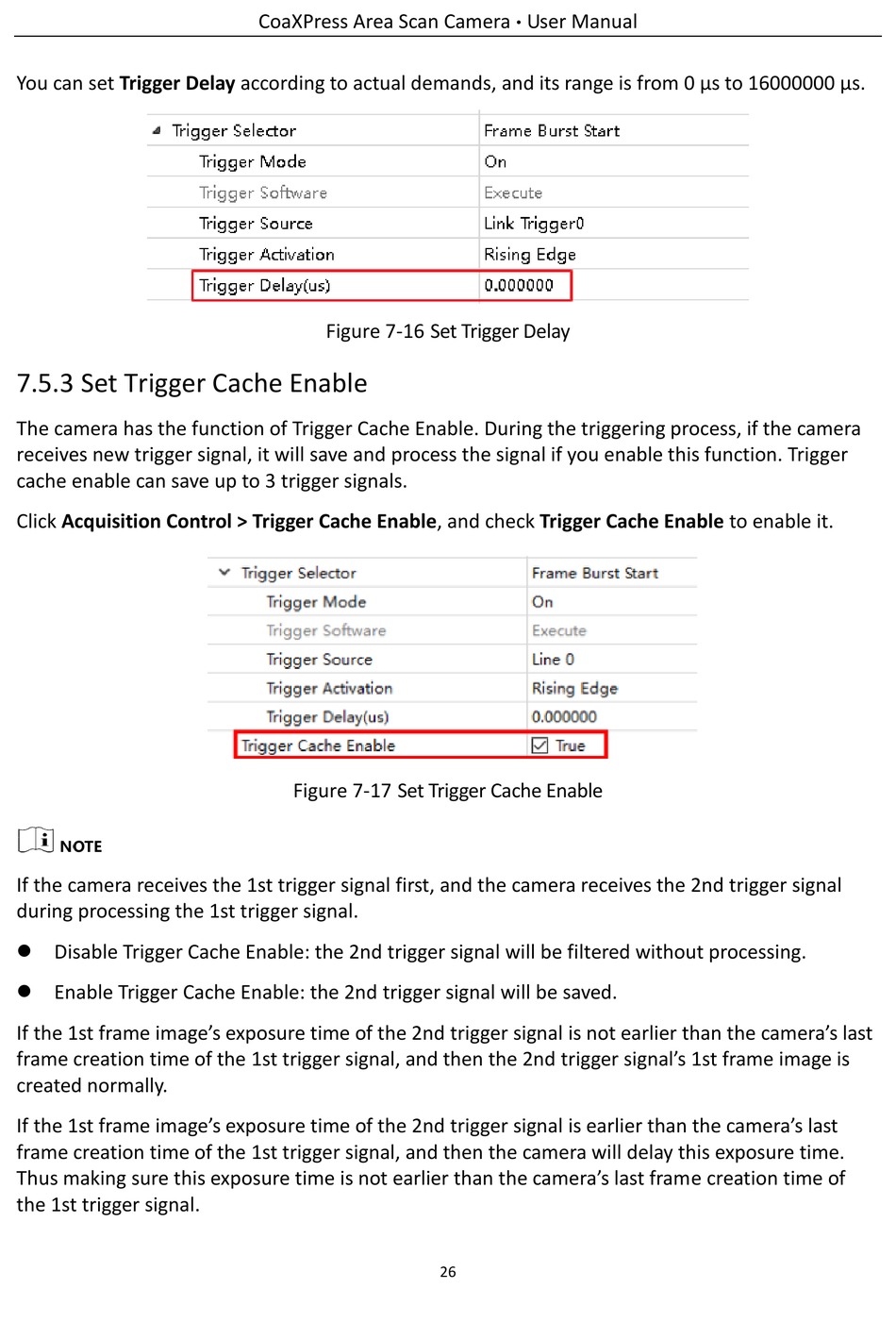

7.5.3 Set Trigger Cache Enable

The camera has the function of Trigger Cache Enable. During the triggering process, if the camera
receives new trigger signal, it will save and process the signal if you enable this function. Trigger
cache enable can save up to 3 trigger signals.
Click Acquisition Control > Trigger Cache Enable, and check Trigger Cache Enable to enable it.
Figure 7-17 Set Trigger Cache Enable
If the camera receives the 1st trigger signal first, and the camera receives the 2nd trigger signal
during processing the 1st trigger signal.
 Disable Trigger Cache Enable: the 2nd trigger signal will be filtered without processing.
 Enable Trigger Cache Enable: the 2nd trigger signal will be saved.
If the 1st frame image's exposure time of the 2nd trigger signal is not earlier than the camera's last
frame creation time of the 1st trigger signal, and then the 2nd trigger signal's 1st frame image is
created normally.
If the 1st frame image's exposure time of the 2nd trigger signal is earlier than the camera's last
frame creation time of the 1st trigger signal, and then the camera will delay this exposure time.
Thus making sure this exposure time is not earlier than the camera's last frame creation time of
the 1st trigger signal.
