10.5 Set Test Pattern

The test pattern may differ by camera models.
The camera supports test pattern function. When there is exception in real-time image, you can
check whether image of test mode have similar problem to determine the reason. This function is
disabled by default, and at this point, the outputted image by the camera is real-time image. If this
function is enabled, the outputted image by the camera is test image.

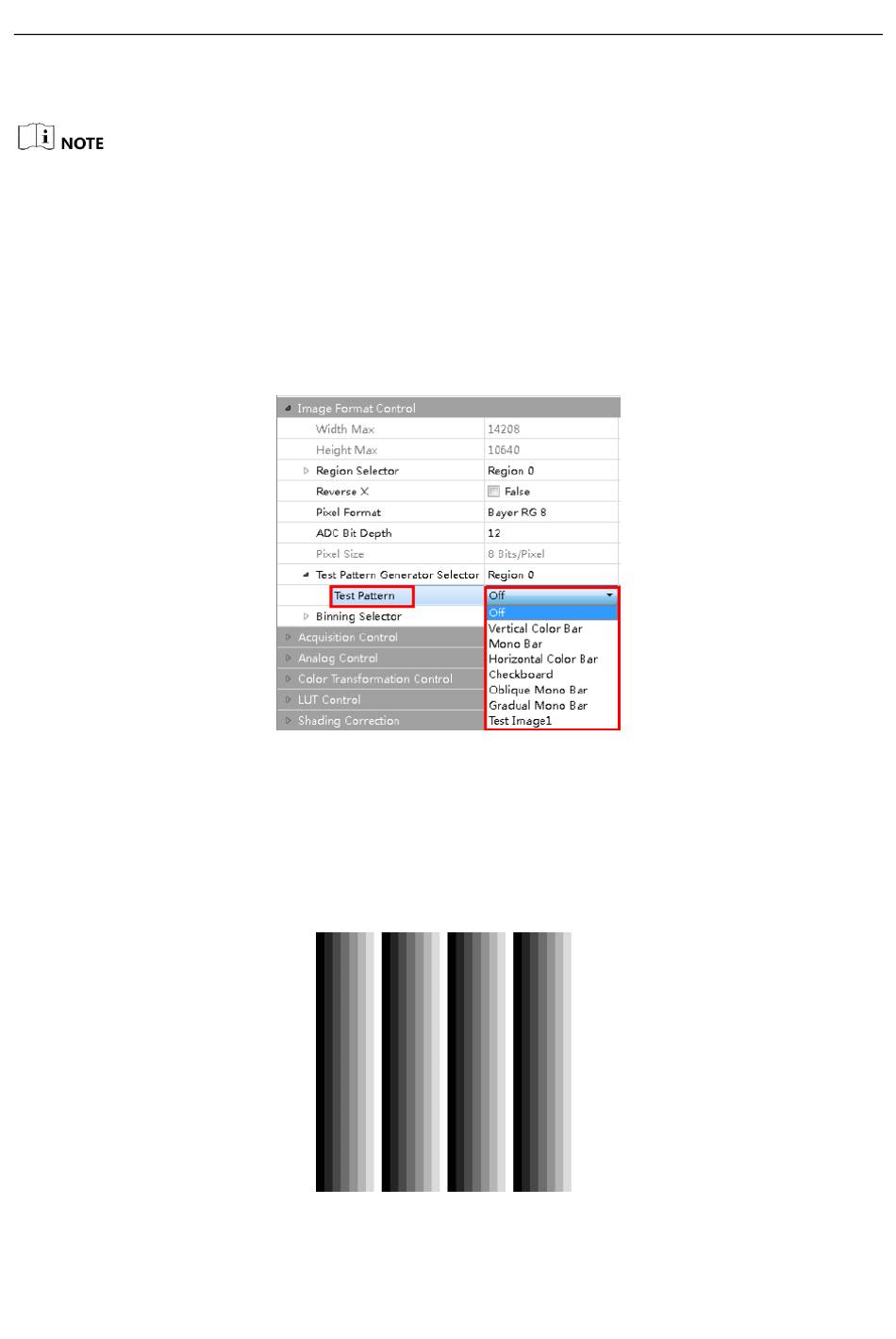

Click Image Format Control > Test Pattern Generator Selector > Test Pattern, and set Test Pattern
according to actual demands.
Figure 10-5 Test Pattern
The mono camera offers 4 test patterns, including Mono Bar, Checkboard, Oblique Mono Bar ,
Gradual Mono Bar, and Test Image 1.
The color camera offers 7 test patterns, including Mono Bar, Checkboard, Oblique Mono Bar,
Gradual Mono Bar, Vertical Color Bar, Horizontal Color Bar, and Test Image 1.
Figure 10-6 Mono Bar Test Pattern
