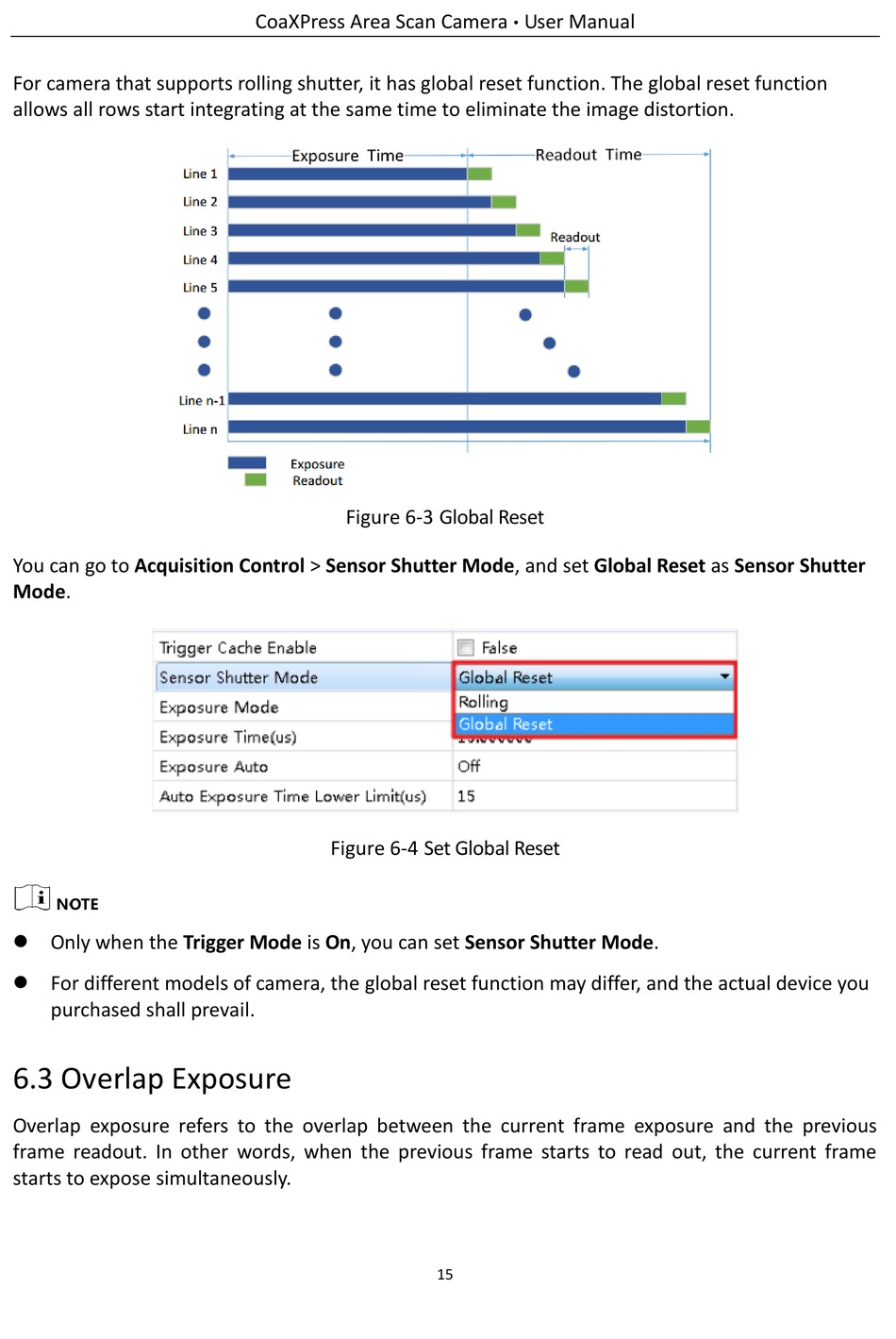

CoaXPress Area Scan Camera User Manual
·
For camera that supports rolling shutter, it has global reset function. The global reset function
allows all rows start integrating at the same time to eliminate the image distortion.
Figure 6-3 Global Reset
You can go to Acquisition Control > Sensor Shutter Mode, and set Global Reset as Sensor Shutter
Mode.
Figure 6-4 Set Global Reset
 Only when the Trigger Mode is On, you can set Sensor Shutter Mode.
 For different models of camera, the global reset function may differ, and the actual device you
purchased shall prevail.

6.3 Overlap Exposure

Overlap exposure refers to the overlap between the current frame exposure and the previous
frame readout. In other words, when the previous frame starts to read out, the current frame
starts to expose simultaneously.
