When using counter trigger, you need to set relevant parameters of Counter And Timer Control.
Parameter
Counter Selector
Counter Event Source
Counter Reset Source
Counter Reset
Counter Value
Counter Current Value
CoaXPress Area Scan Camera

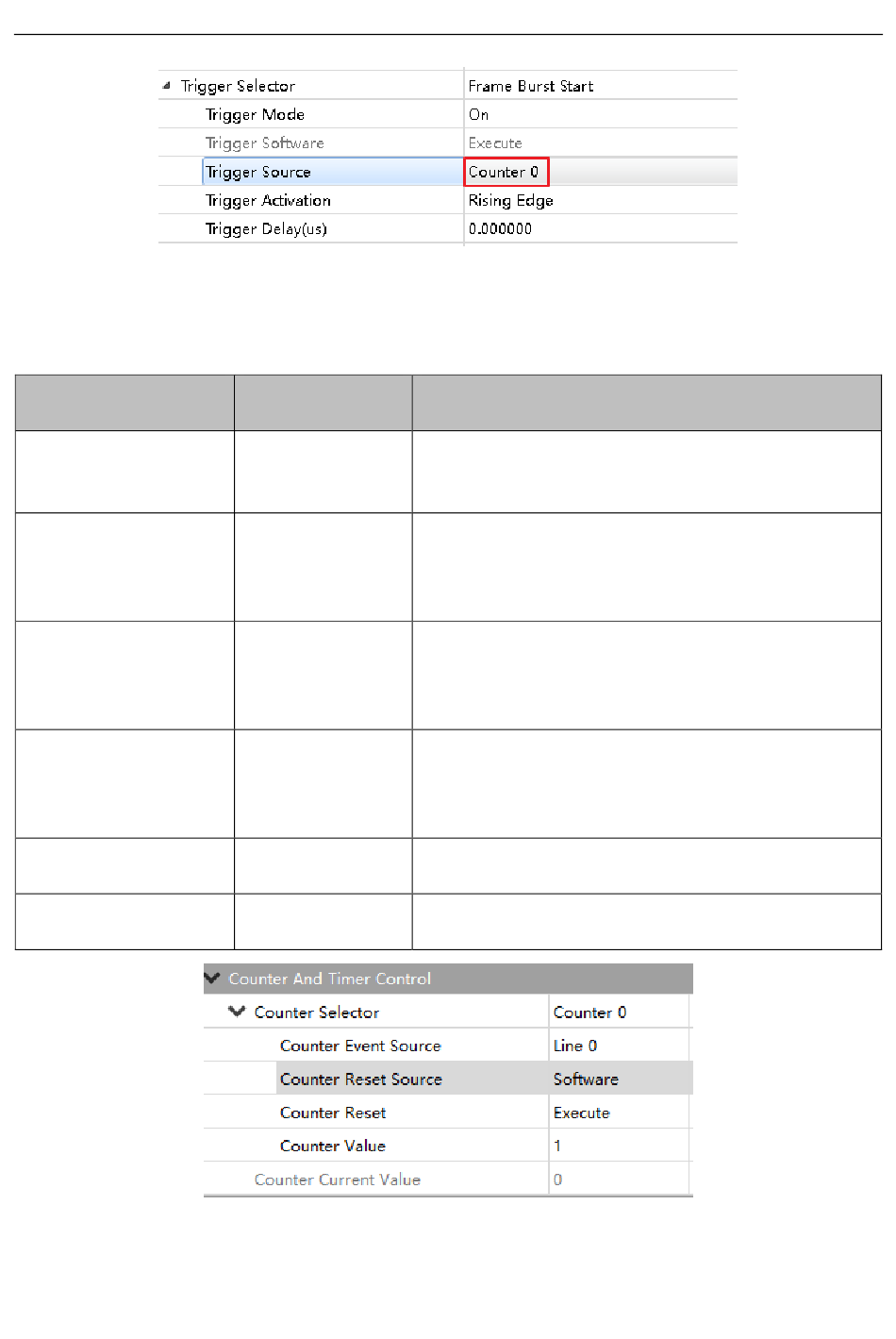

Figure 7-9 Set Counter Trigger
Table 7-2 Description of Counter And Timer Control
Read/Write
Read and write
Read and write
Read and write
Write is available
under certain
condition
Read and write
Read only
Figure 7-10 Counter And Timer Control
User Manual
·
Description
It selects counter source. Counter 0 is available
only at present.
It selects the signal source of counter trigger. Line
0, Line 2 or Link Trigger 0 is available. This
parameter is disabled by default.
It selects the signal source of resetting counter.
Software is available only. This parameter is
disabled by default.
It resets counter and it can be executed when
selecting Software as Counter Reset Source.
It is the counter value with the range of 1 to 1023.
It displays the number of executed external trigger.
