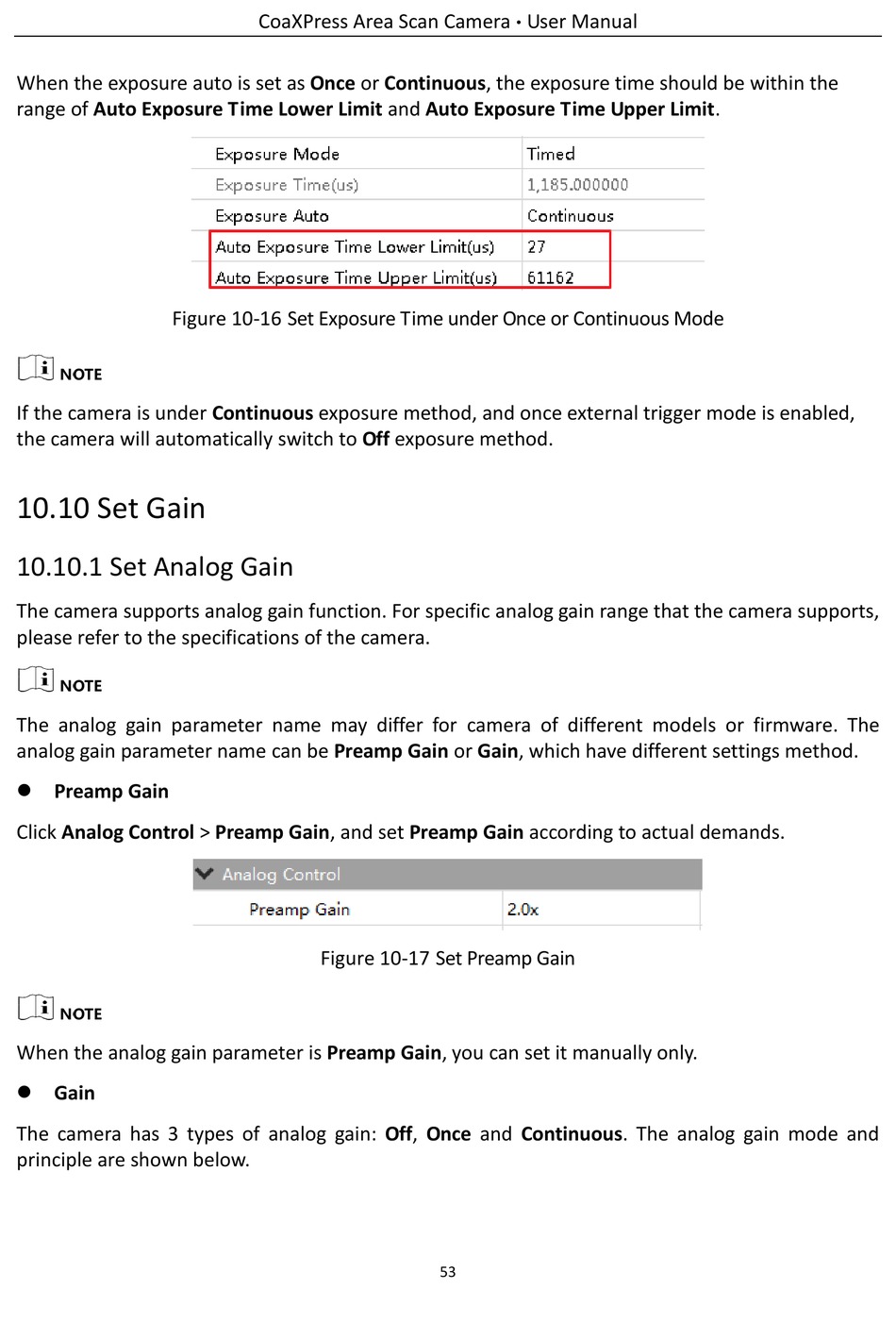

When the exposure auto is set as Once or Continuous, the exposure time should be within the
range of Auto Exposure Time Lower Limit and Auto Exposure Time Upper Limit.
Figure 10-16 Set Exposure Time under Once or Continuous Mode
If the camera is under Continuous exposure method, and once external trigger mode is enabled,
the camera will automatically switch to Off exposure method.

10.10 Set Gain

10.10.1 Set Analog Gain

The camera supports analog gain function. For specific analog gain range that the camera supports,
please refer to the specifications of the camera.
The analog gain parameter name may differ for camera of different models or firmware. The
analog gain parameter name can be Preamp Gain or Gain, which have different settings method.
 Preamp Gain
Click Analog Control > Preamp Gain, and set Preamp Gain according to actual demands.
Figure 10-17 Set Preamp Gain
When the analog gain parameter is Preamp Gain, you can set it manually only.
 Gain
The camera has 3 types of analog gain: Off, Once and Continuous. The analog gain mode and
principle are shown below.
