External Supported
Trigger Trigger Mode
Source
Shaft encoder Line trigger
control
Frequency Frame trigger or
converter line trigger
control
Frame Frame trigger or
grabber line trigger
trigger control
 These 5 trigger sources are valid only when the Trigger Mode is On.
 For different models of cameras, the specific parameters mentioned above may differ, and the
actual product you purchased shall prevail.

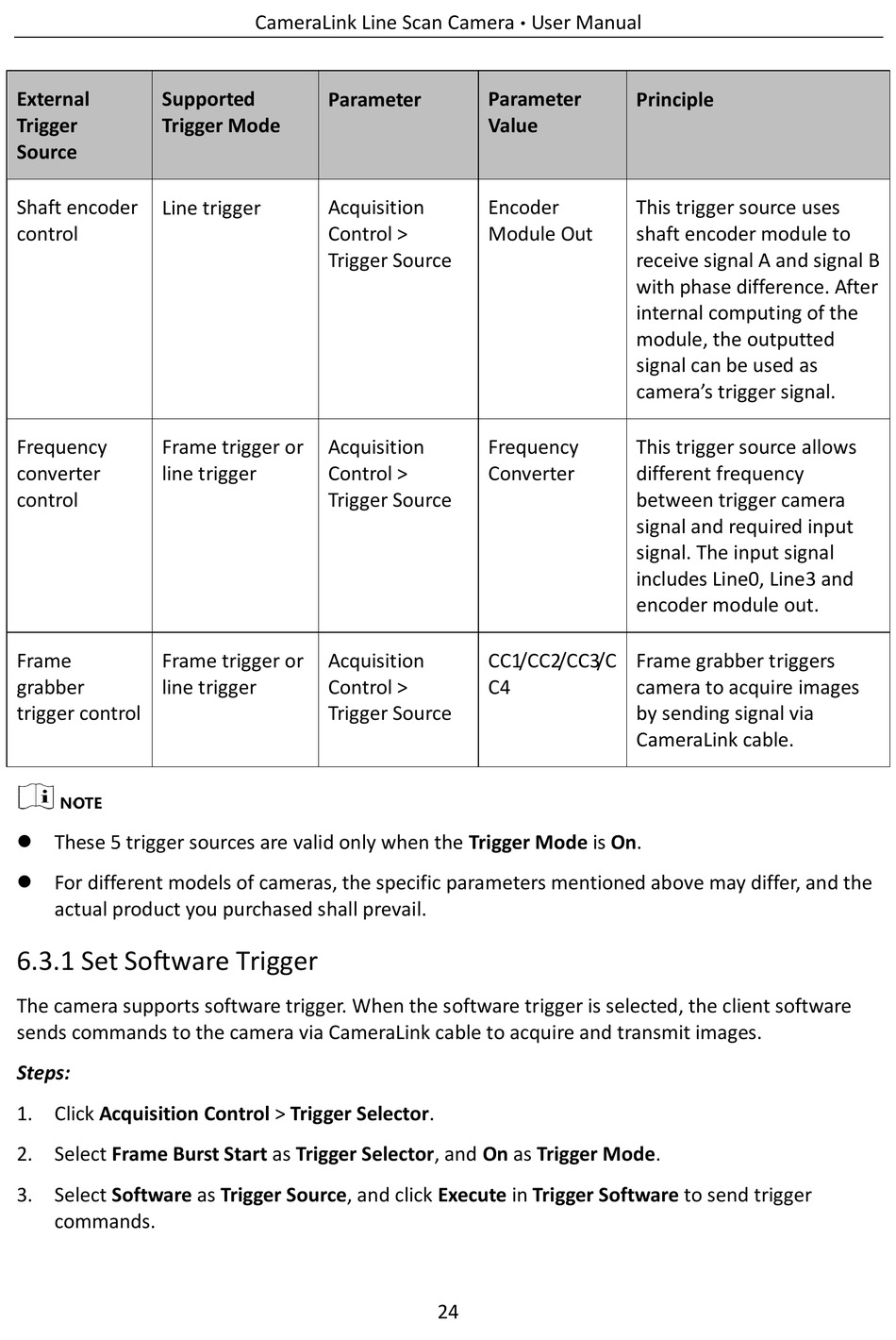

6.3.1 Set Software Trigger

The camera supports software trigger. When the software trigger is selected, the client software
sends commands to the camera via CameraLink cable to acquire and transmit images.
Steps:
1. Click Acquisition Control > Trigger Selector.
2. Select Frame Burst Start as Trigger Selector, and On as Trigger Mode.
3. Select Software as Trigger Source, and click Execute in Trigger Software to send trigger
commands.
CameraLink Line Scan Camera
Parameter
Acquisition
Control >
Trigger Source
Acquisition
Control >
Trigger Source
Acquisition
Control >
Trigger Source
User Manual
·
Parameter
Value
Encoder
Module Out
Frequency
Converter
CC1/CC2/CC3/C
C4
24
Principle
This trigger source uses
shaft encoder module to
receive signal A and signal B
with phase difference. After
internal computing of the
module, the outputted
signal can be used as
camera's trigger signal.
This trigger source allows
different frequency
between trigger camera
signal and required input
signal. The input signal
includes Line0, Line3 and
encoder module out.
Frame grabber triggers
camera to acquire images
by sending signal via
CameraLink cable.
