Set Software Trigger - HikRobot USB3.0 User Manual

External Trigger
Source
Hardware trigger
Counter trigger
The specific parameter value of hardware trigger may differ by camera models.
Click Acquisition Control > Trigger Source, and select Trigger Source according to actual demands.
These 3 external trigger sources are valid only when the Trigger Mode is On.

8.5.2 Set Software Trigger

Steps:
1. Click Acquisition Control > Trigger Mode, and select On as Trigger Mode.
2. Select Software as Trigger Source, and click Execute in Trigger Software to send trigger
commands.
USB3.0 Board Level Camera
Parameter
Trigger Source

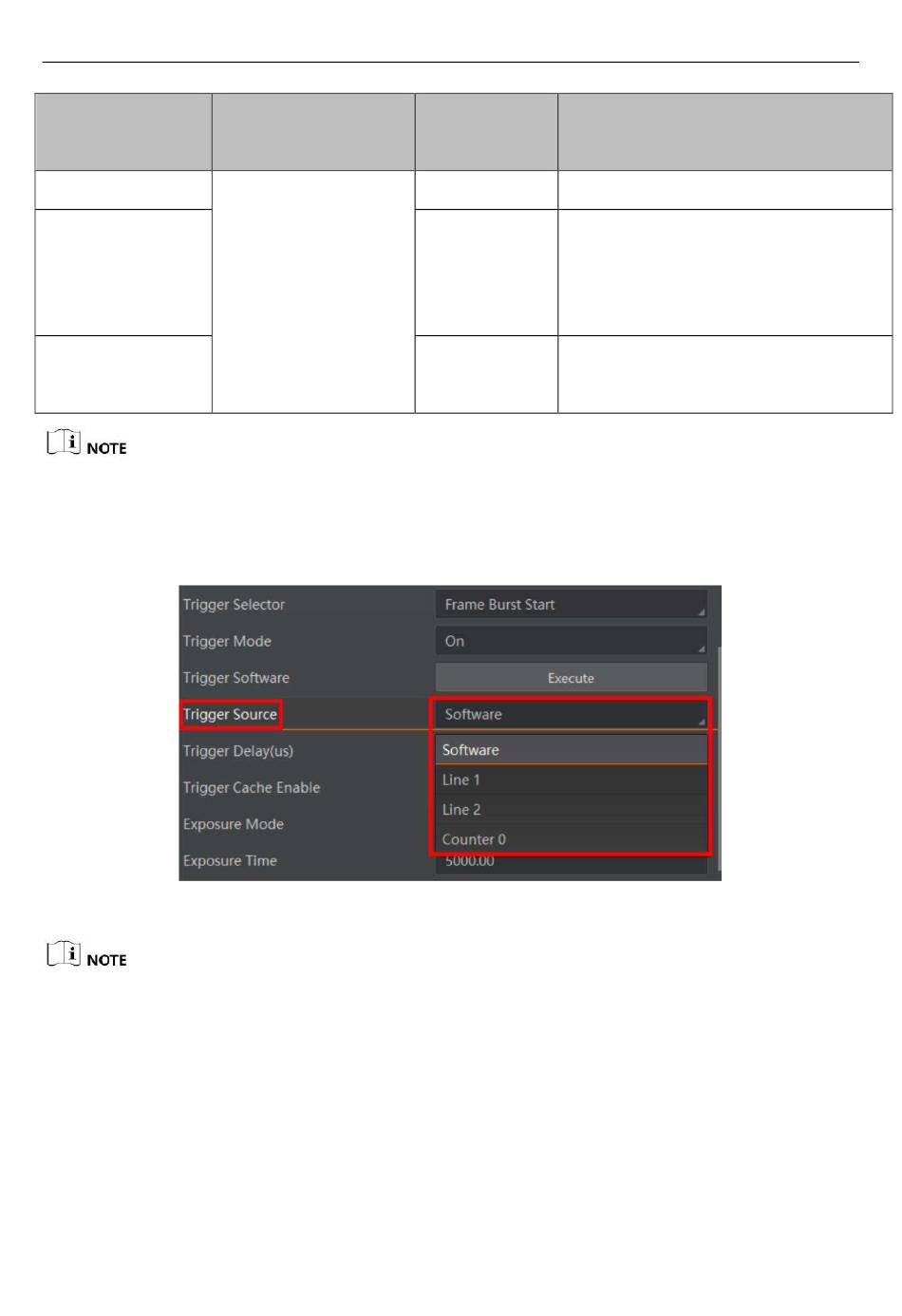

Figure 8-6 Set Trigger Source
User Manual
·
Parameter Principle
Value
acquire images.
Line 1, Line 2 External device connects camera via
camera I/O interface. External device
sends trigger signal to camera to
acquire images.
Counter 0 The counter sends trigger signal to the
camera to acquire images.
