Click in the camera's feature name of cameras tab to unfold the specific camera parameters,
and set them according to actual demands.
For specific parameters, please refer to the actual device you purchased.
CoaXPress Area Scan Camera

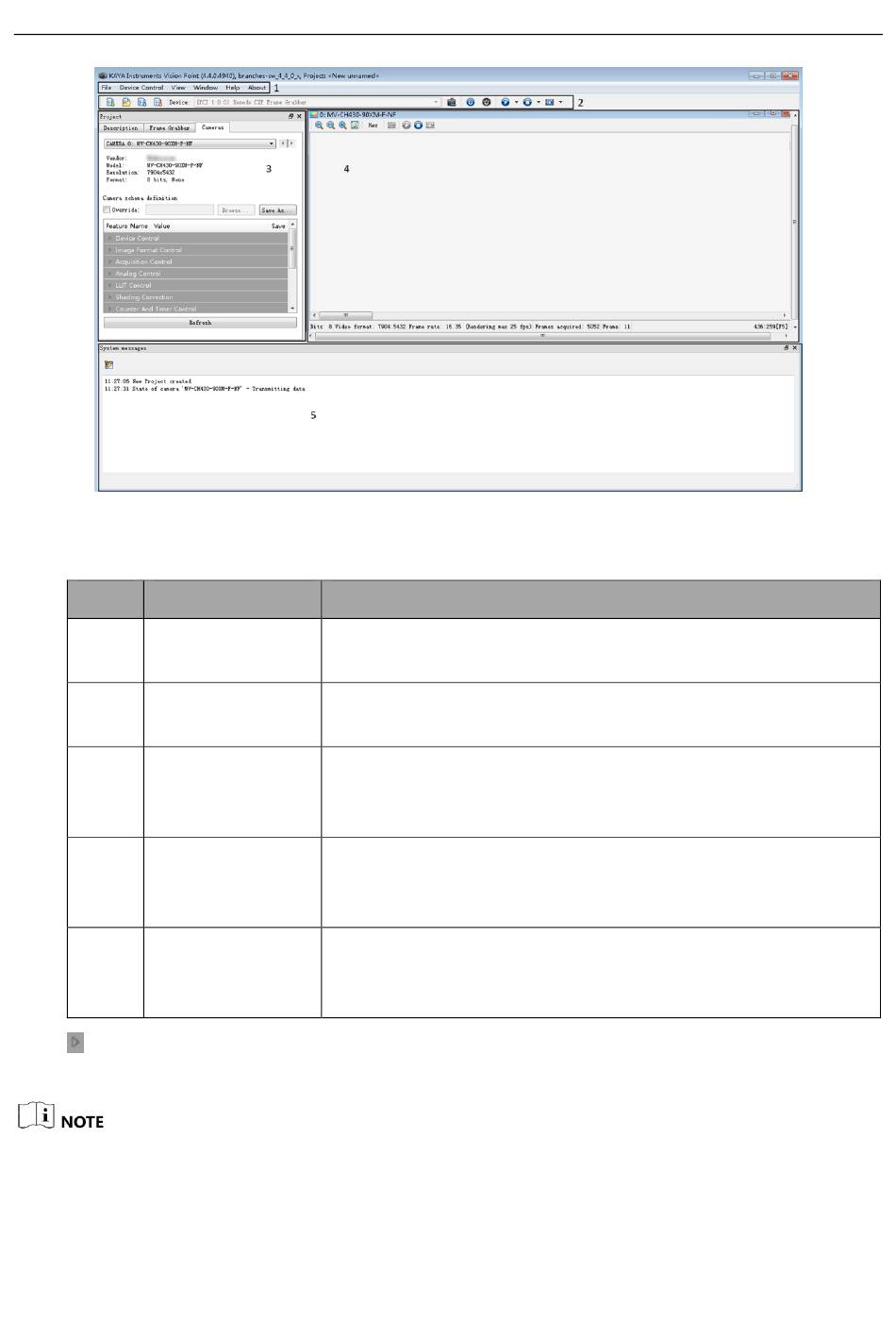

Figure 5-3 Main Window
Table 5-1 Description of the Main Window
Description
The menu bar displays function modules, including File,
Device Control, View, Window, Help, and About.
The control toolbar provides project operation buttons,
hardware selection and stream acquisition control buttons.
The project navigator allows configuring and controlling the
camera via standard GenlCam interface. It includes
Description tab, Frame Grabber tab, and Cameras tab.
The acquisition picture window displays the last frame that
has been grabbed. Information on frame rate and image
format can be found at the bottom of the window.
The system messages window displays general, runtime
information and error messages regarding the state of stream
grabbing and changes to various components.
