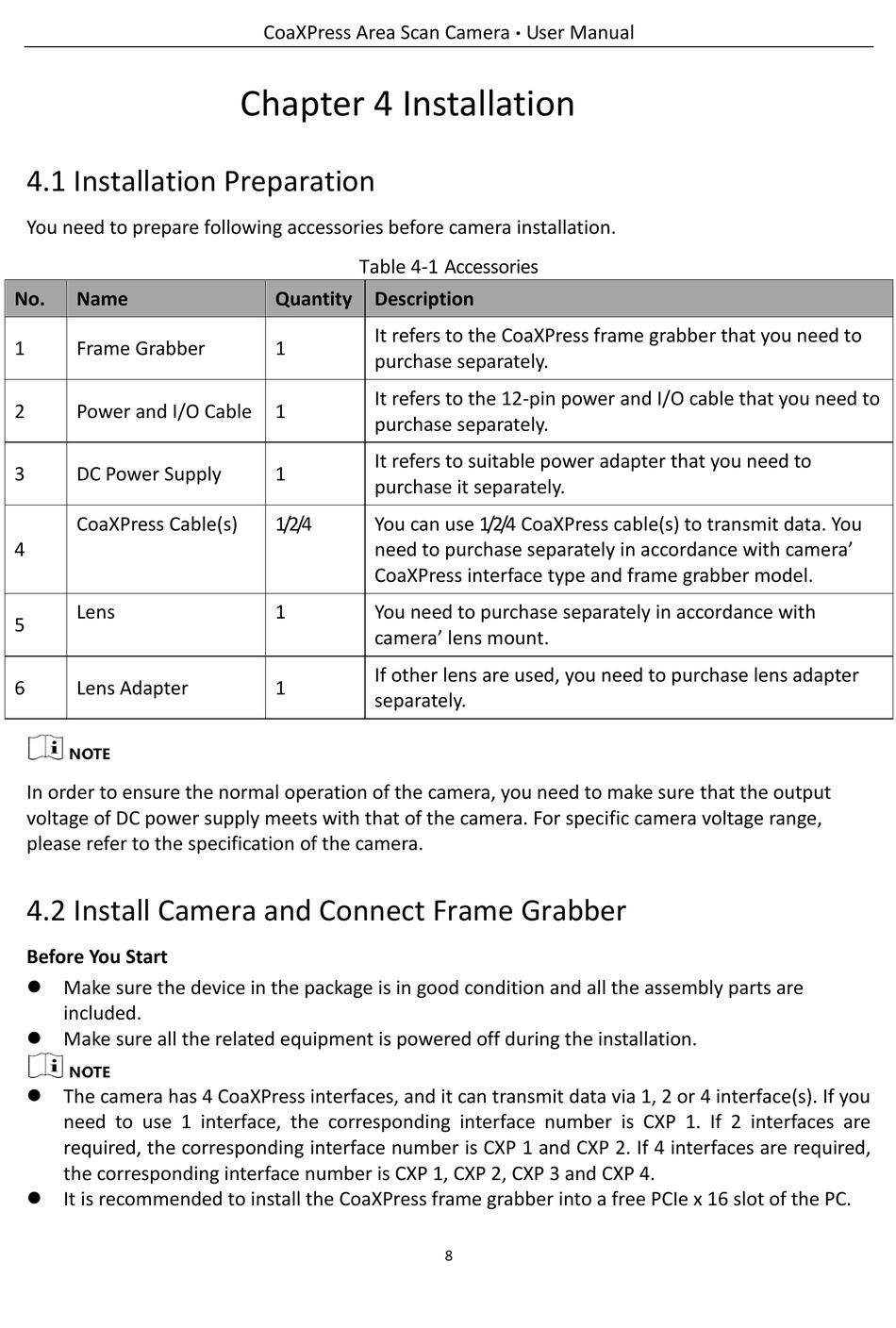

4.1 Installation Preparation

You need to prepare following accessories before camera installation.
No. Name
1 Frame Grabber
2 Power and I/O Cable
3 DC Power Supply
CoaXPress Cable(s)
4
Lens
5
6 Lens Adapter
In order to ensure the normal operation of the camera, you need to make sure that the output
voltage of DC power supply meets with that of the camera. For specific camera voltage range,
please refer to the specification of the camera.

4.2 Install Camera and Connect Frame Grabber

Before You Start
 Make sure the device in the package is in good condition and all the assembly parts are
included.
 Make sure all the related equipment is powered off during the installation.
 The camera has 4 CoaXPress interfaces, and it can transmit data via 1, 2 or 4 interface(s). If you
need to use 1 interface, the corresponding interface number is CXP 1. If 2 interfaces are
required, the corresponding interface number is CXP 1 and CXP 2. If 4 interfaces are required,
the corresponding interface number is CXP 1, CXP 2, CXP 3 and CXP 4.
 It is recommended to install the CoaXPress frame grabber into a free PCIe x 16 slot of the PC.
CoaXPress Area Scan Camera

Chapter 4 Installation

Table 4-1 Accessories
Quantity Description
It refers to the CoaXPress frame grabber that you need to
1
purchase separately.
It refers to the 12-pin power and I/O cable that you need to
1
purchase separately.
It refers to suitable power adapter that you need to
1
purchase it separately.
1/2/4 You can use 1/2/4 CoaXPress cable(s) to transmit data. You
need to purchase separately in accordance with camera'
CoaXPress interface type and frame grabber model.
1 You need to purchase separately in accordance with
camera' lens mount.
If other lens are used, you need to purchase lens adapter
1
separately.
