Top Select Maintenance Guide

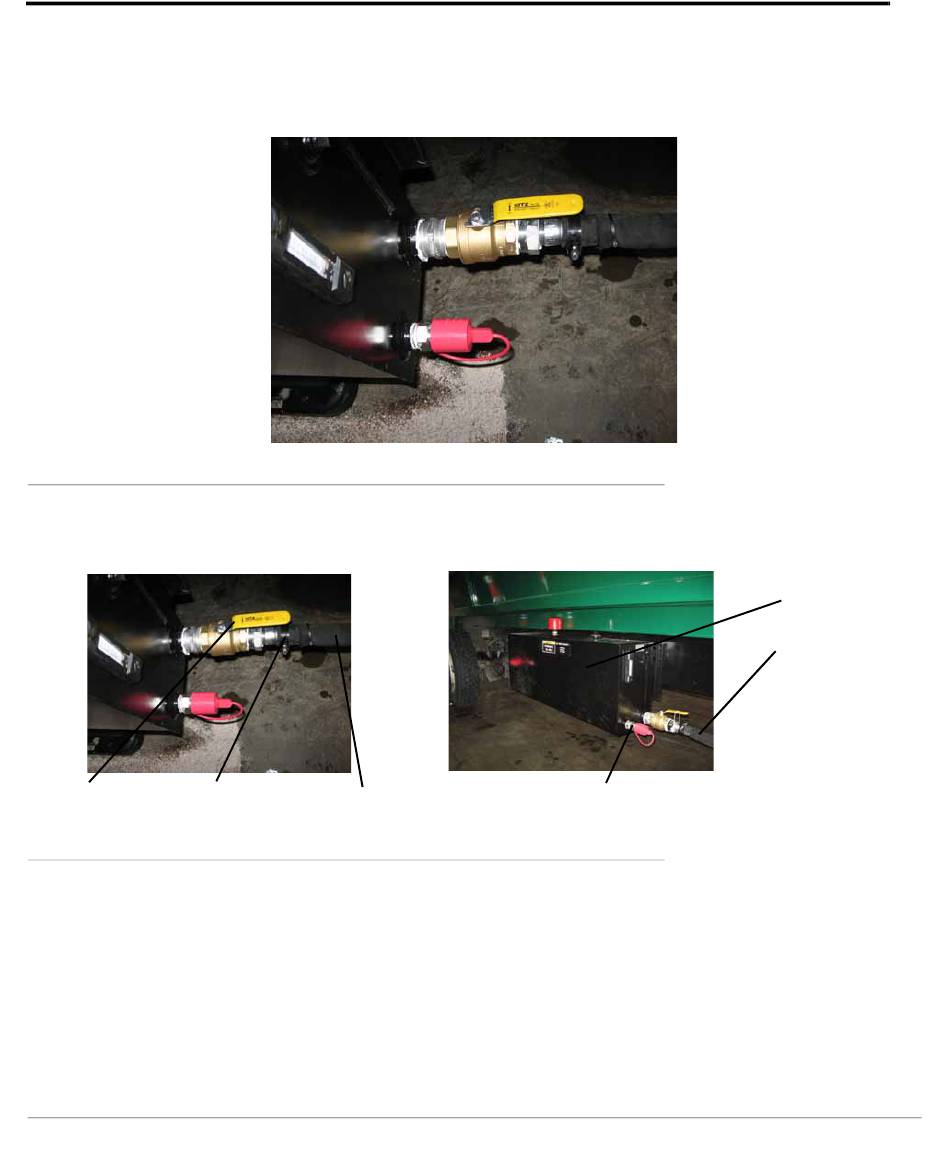

FIGURE 1-73. Hydraulic tank
9. Remove both hose clamps from the suction hose and slide the hose over the pipe
until it clears the ball valve (slide towards the front of the vehicle).
B
ALL VALVE
H
OSE CLAMPS
FIGURE 1-74. Suction hose and strainer removal
10.Disconnect the bulkhead of the return hose to allow the ball-valve assembly to turn
freely when the strainer is loosened.
11. Remove the strainer from the tank port. The strainer has to be turned counterclokwise
to be removed.
12.Once the strainer is removed, clean it using solvant, and inspect for damage; replace
if needed.
1-76
S
UCTION HOSE
D
RAIN PLUG
Top Select Maintenance Manual
H
YDRAULIC TANK
S
UCTION HOSE
O
PTIONAL
STRAINER INCLUDED
