Top Select Maintenance Guide
3. Install the loading bucket safety pin. See
A
LWAYS WEAR A SAFETY HARNESS WHEN PERFORMING ANY MAINTENANCE ON THE ROOF
4. On the one end remove the snap ring and the pin.

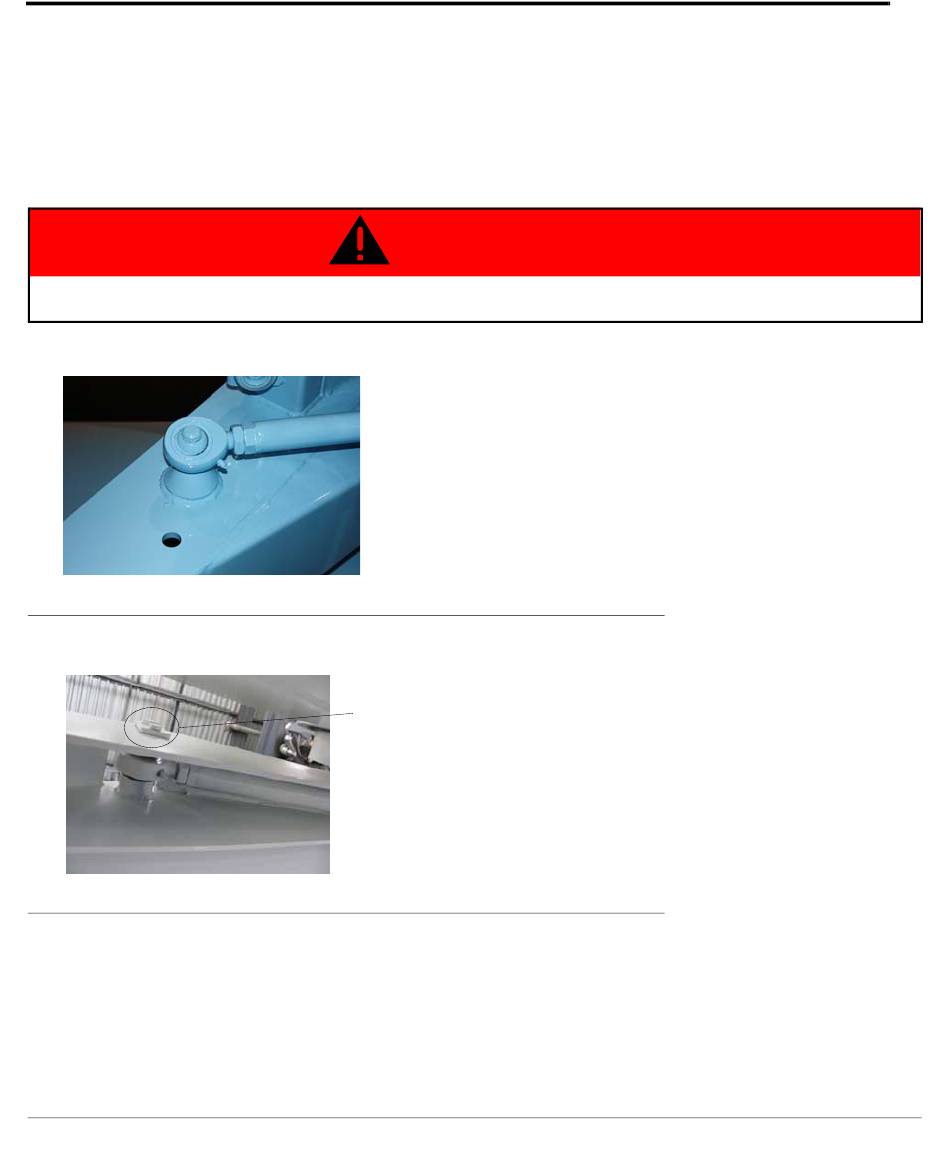

FIGURE 1-41. Roof mechanism rod end A
5. On the other end, remove the lock bolt and the pin to release the rod.
FIGURE 1-42. Roof mechanism rod end B
6. Remove the rod and perform the necessary adjustment or replacement.
7. Reverse the removal steps to reinstall the rod.
1-48
section 1.3.7 on page
DANGER
B
OLT AND PIN
14.
