Replacing the Maximizer

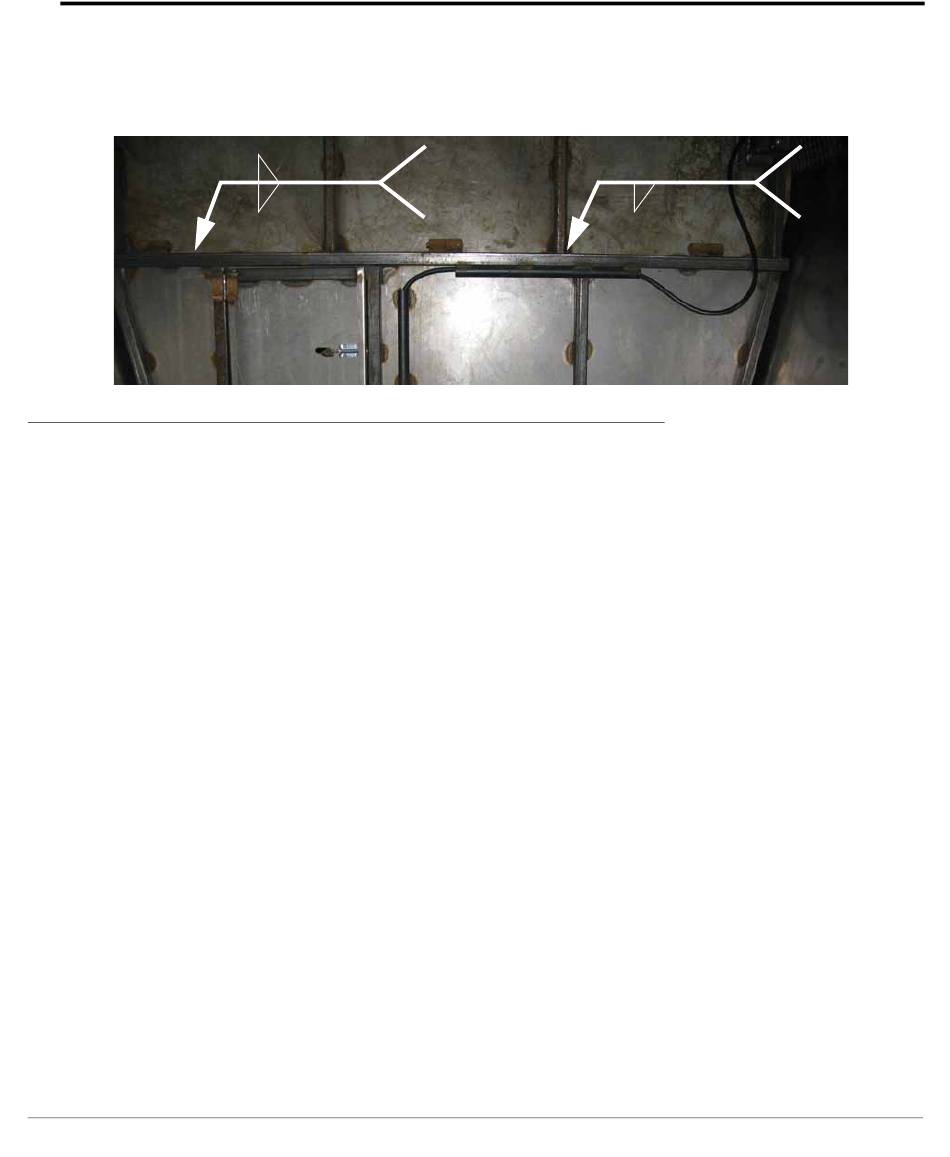

FIGURE 2-11. Weld codes for the Maximizer head
6. Reisntall all air hoses.
7. Reinstall the cylinder. See
2.6.1

Replacing the Maximizer Extensible Air Hose

There is an extensible air hose inside a mechanism that moves along the upper beam to
provide air supply as the Maximizer moves back and forth.
To remove the extensible air hose:
1. With the Maximizer completely retracted, remove the cover that provides access to
the hose connector leading to the Maximizer.
2. Fully extend the Maximizer to gain access to the cover of the hose connector on the
other end leading to the air system and remove it.
3. Remove the cover on the side that will provide access to the hose.
4. Once you've gaind access to the hose connectors and the hose, disconnect the hose
on both ends and pull it out from the side.
Top Select Maintenance Manual
1/8 1 - 8
section 2.5.3 on page
TYP
13.
1/8
TYP
2-17
