Loading Container Maintenance

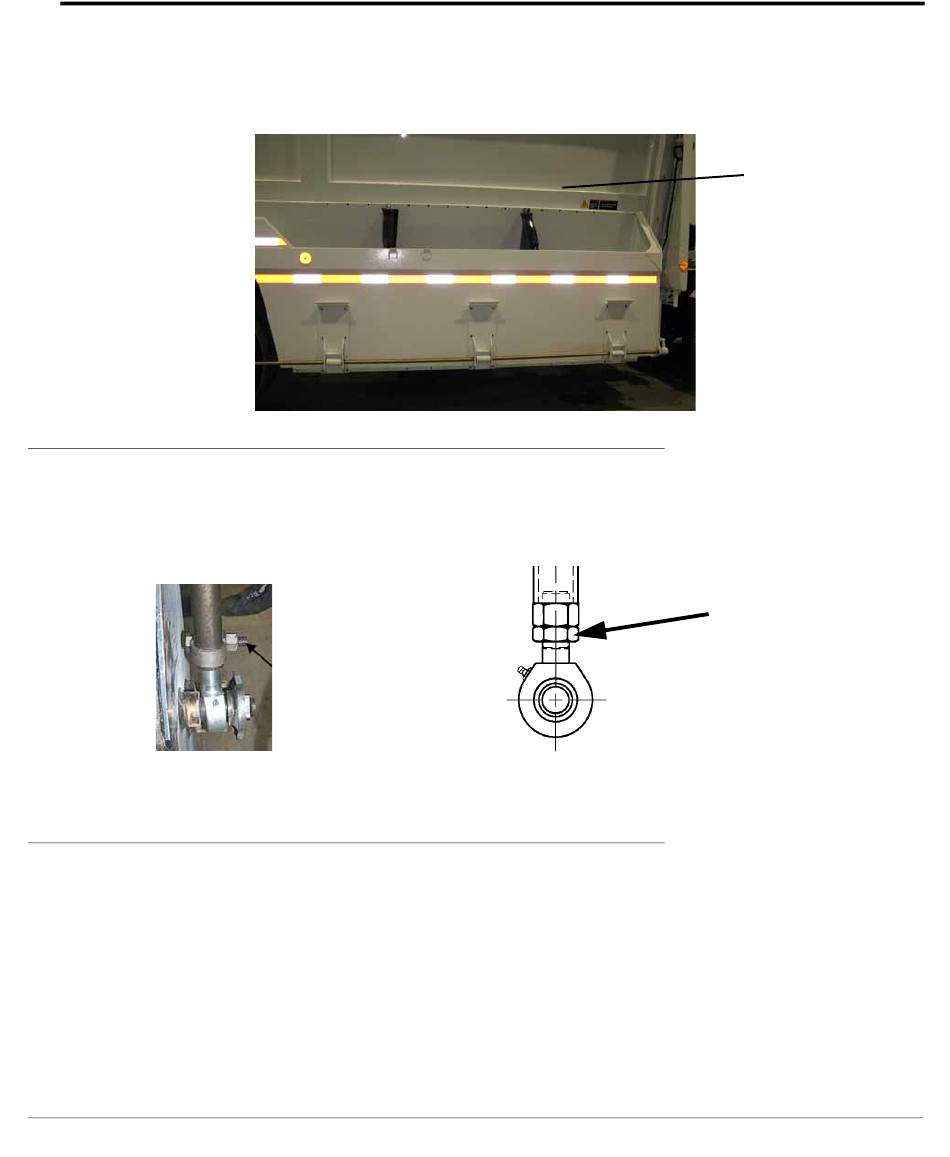

FIGURE 1-35. Setting the bucket in horizontal position
2. Make sure the stoppers are installed and leveled on the roof.
3. Set the rods length by loosening the lock nut or clamp at both the upper and lower
ends.
M
ODEL WITH A CLAMP
FIGURE 1-36. Lock nuts and clamp on two types of rod
N : I
OTE N THE MODEL WITH A CLAMP
N : I
OTE N THE MODEL WITH A LOCK NUT
4. Turn the rods to adjust the length until both rods convey the horizontal alignment of
the bucket.
Top Select Maintenance Manual
M
ODEL WITH A COUNTERNUT
,
IT IS IMPORTANT TO SET THE LOCK NUT FACING OUT
,
IT IS NECESSARY TO CUT THE WELD OF THE NUT
H
ORIZONTAL
REFERENCE
L
OCK NUT
.
.
