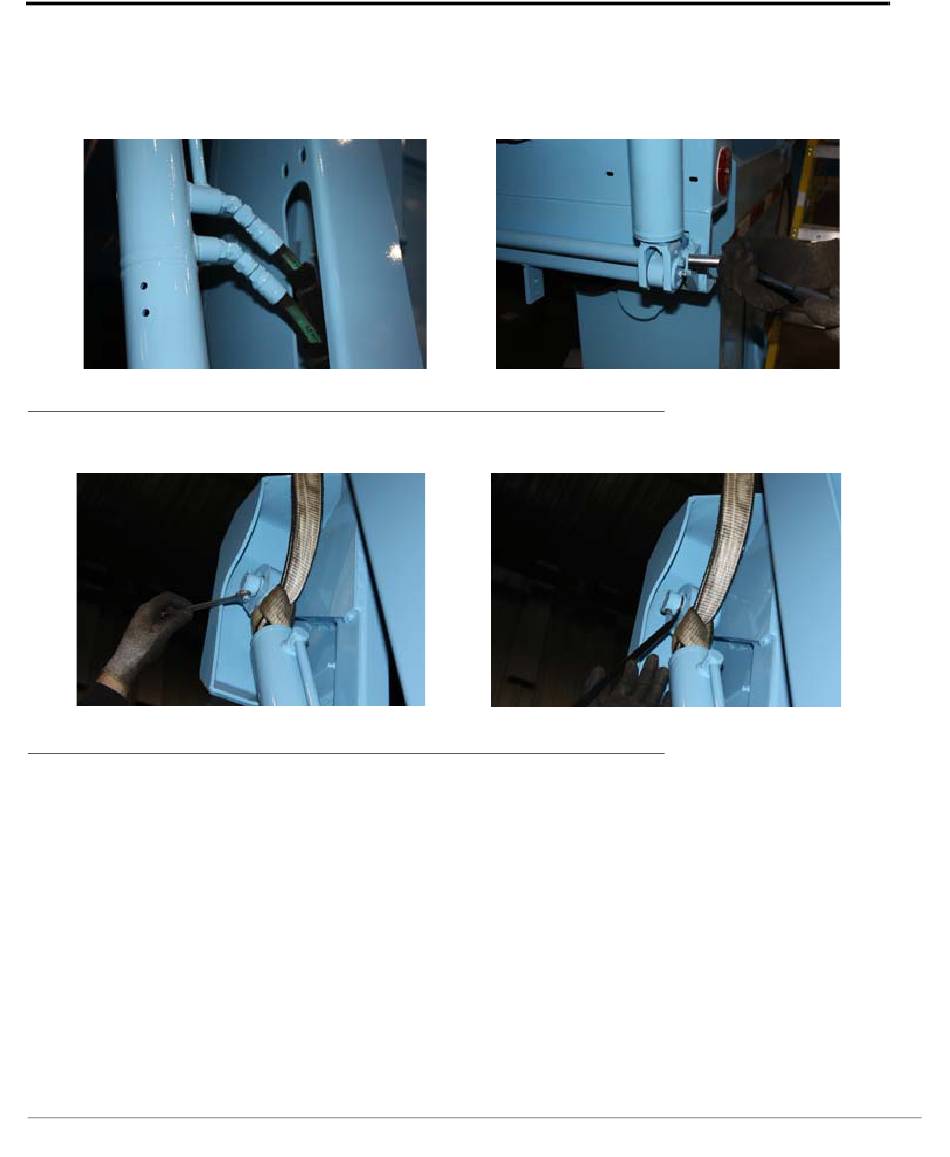

FIGURE 1-58. Tailgate hydraulic hoses and cylinder base pin
5. Attach the cylinder head to a safe lifting device.
FIGURE 1-59. Tailgate cylinder head attached
6. On the cylinder head, remove the lock bolt and pin to release the cylinder.
7. Carefully lift the cylinder and move it to the maintenance area.
8. Bring the new cylinder and set it in place.
9. Reverse the removal steps to reinstall the new cylinder.
