Limit Switch Arm Adjustment - Labrie Top Select Maintenance Manual

Loading Container Maintenance
A
DJUST THE LIMIT
4½ "
SWITCH AT ABOUT
FROM THE RAIL
.
BOTTOM

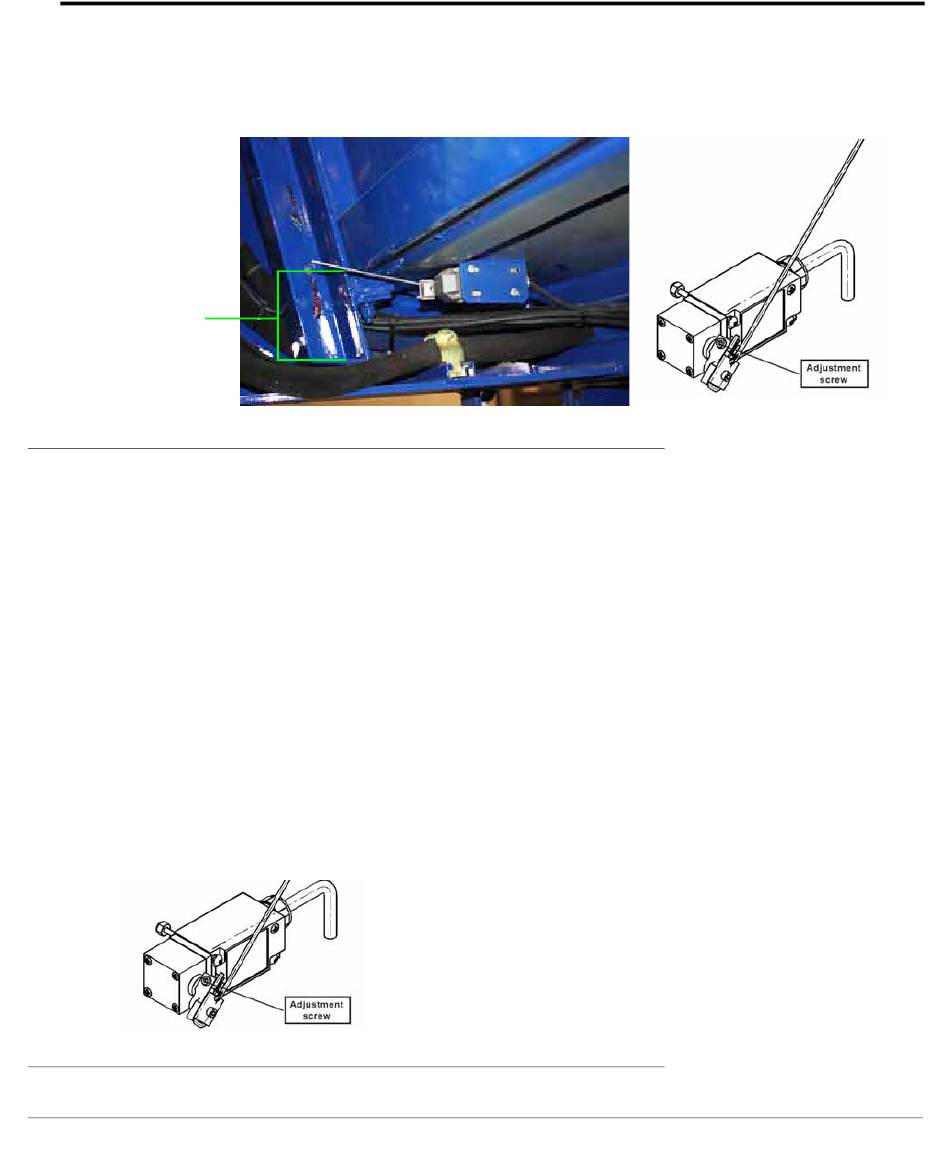

FIGURE 1-37. Bucket limit switch
3. Lower and raise the bucket a few times to test.
4. Readjust if necessary.
1.6.8

Limit Switch Arm Adjustment

There are three limit switches in the Top Select's body. The first one is for the loading
bucket movement, the second one is used to signal the tailgate movement and the third
one is used to find out if the body is rising.
To adjust the limit switch arm:
1. Use an Allen key to adjust the length and angle for the limit switch arm to the
necessary settings.
The click of the limit switch setting must be felt at the point where the moving part
(body, tailgate or loading bucket) would clearly indicate it is moving and the safety
warning is necessary.
FIGURE 1-38. Limit switch
