T
HERE MUST NOT BE ANYBODY ON THE ROOF OR IN THE BODY WHEN THE ENGINE IS ON AND
THE HYDRAULIC SYSTEM ENGAGED
12.Repeat the adjustment on both cylinders to obtain the desired cushion.
1.6.15

Loading Bucket Partition Adjustment

The loading bucket is equipped with "readily movable" partitions. The bottom lock is held
by a vertical pin going through the bottom of the bucket while two side pins hold them at
the top.
Loading bucket partitions adjustment procedure:
1. Pull the handle.
2. Rotate the partition towards the right to release the top side pin.

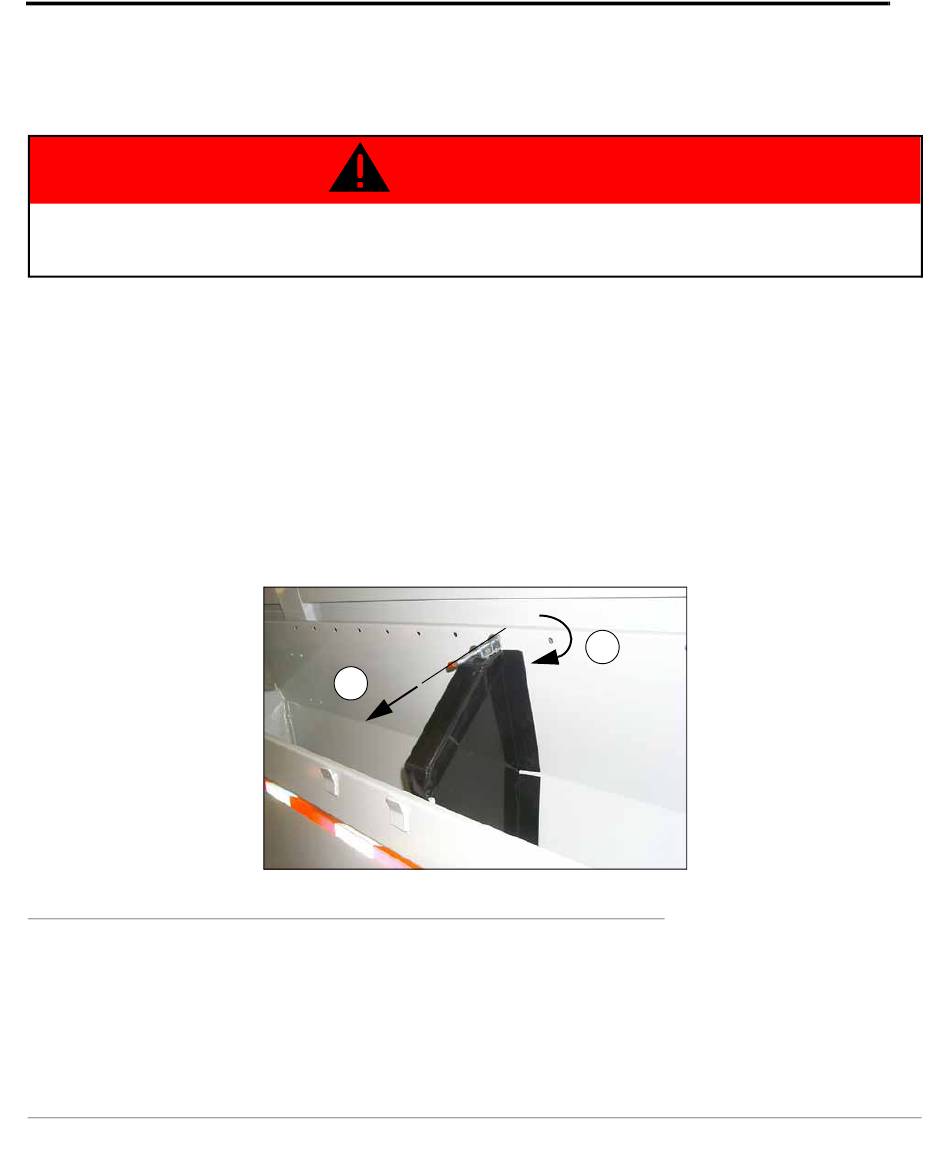

FIGURE 1-53. Adjusting partitions
3. Slide up the partition to free the bottom pin.
4. Move it to the desired position.
1-58
DANGER
.
1
2
