Maximizer Maintenance
2.5.2

Removing the Cylinder

Once you have freed the cylinder from the guard, it is time to remove it from the body.
To remove the cylinder from the body:
1. Access the cylinder head area through the separator door.
2. Remove the bolts from the cover and lift the cover to gain access to the cylinder head.
R
EMOVE BOLTS AND LIFT PANEL
TO ACCESS THE CYLINDER AREA

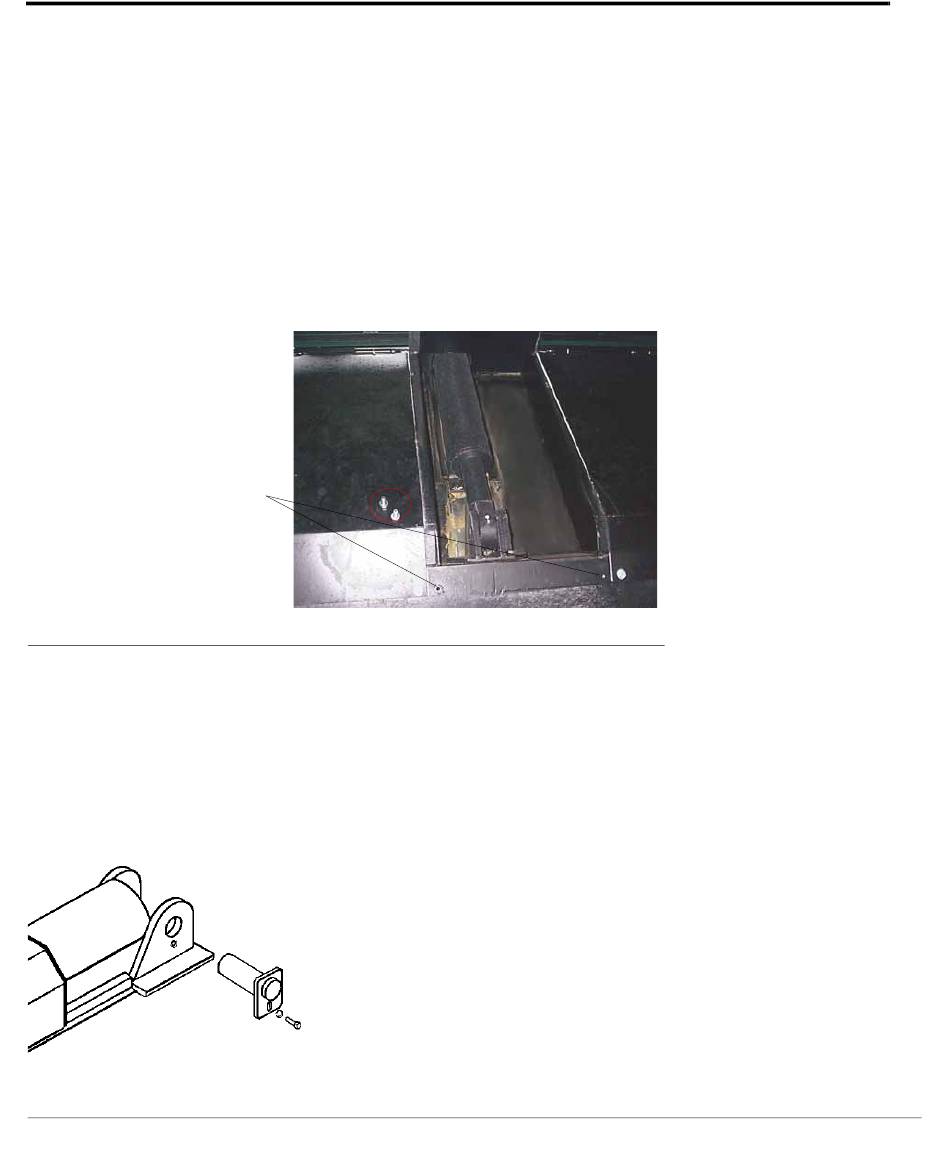

FIGURE 2-7. Accessing the Maximizer cylinder head
3. Remove the head pin.
4. Completely retract the cylinder.
5. Disconnect all hydraulics from the cylinder.
6. At the cylinder base, remove the bolt retaining the pin to the pillow block.
7. Remove the pin.
