Loading Container Maintenance

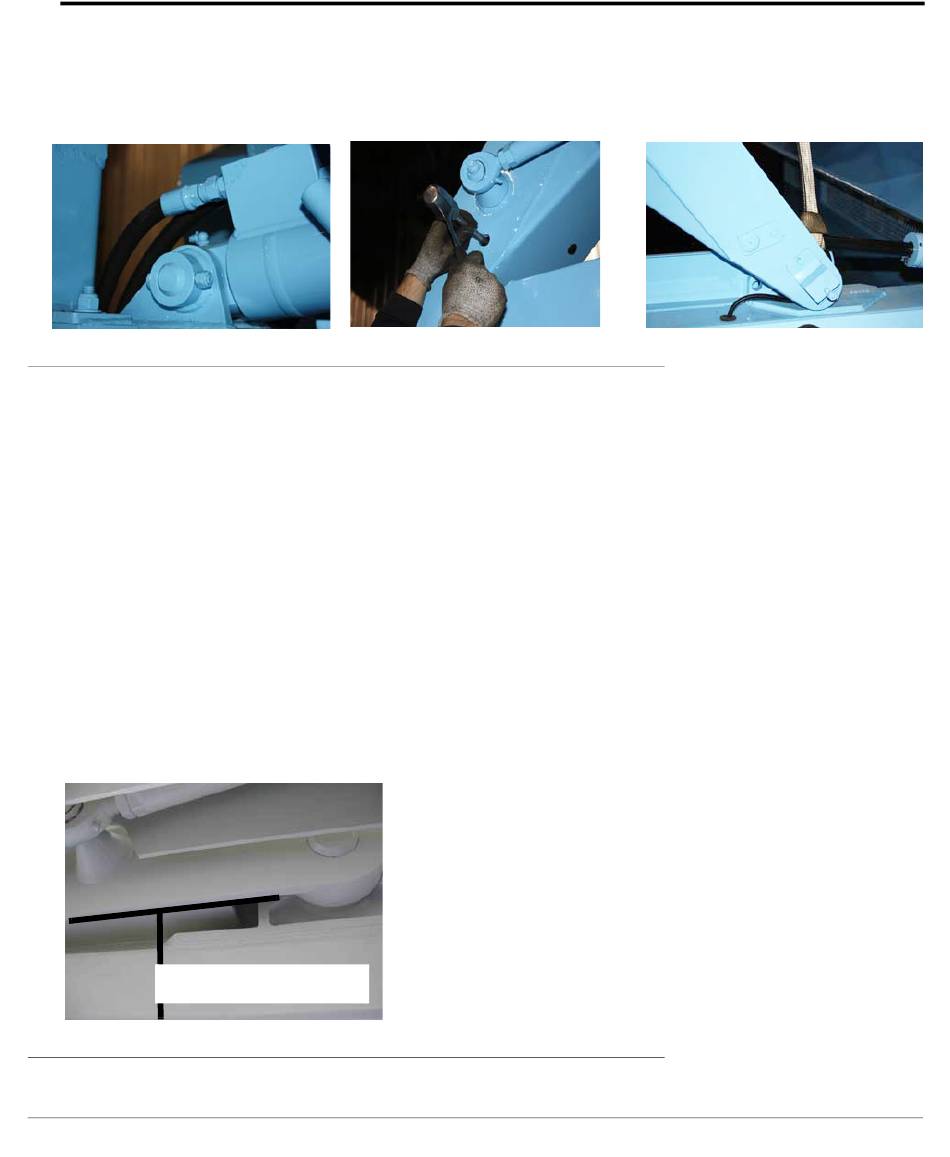

FIGURE 1-44. Base pin and head pin removal
9. Carefully lift the cylinder and move it to the maintenance area.
10.With the same safe lifting device, bring the new cylinder and set it in place.
11. Reverse the removal steps to reinstall the new cylinder.
1.6.13

Removing the Roof Mechanism Pivot

It may be necessary to remove the roof pivot to perform maintenance or replacement.
To remove the roof pivot:
1. Ensure that the parking brake is applied and the vehicle is tagged out for
maintenance purposes. Refer to
2. Safely remove the loading bucket rod of the side corresponding to the pivot. See
section 1.6.5 on page
3. Use a jack or any safe device that can support the roof on one end near the pivot.
H
AVE ROOF REST ON A JACK
FIGURE 1-45. Roof need to safely rest on a jack
Top Select Maintenance Manual
"1.3.5 Lockout/Tagout Procedure" on page
40.
10.
1-51
