Microscan VS-1 Getting Started page 9

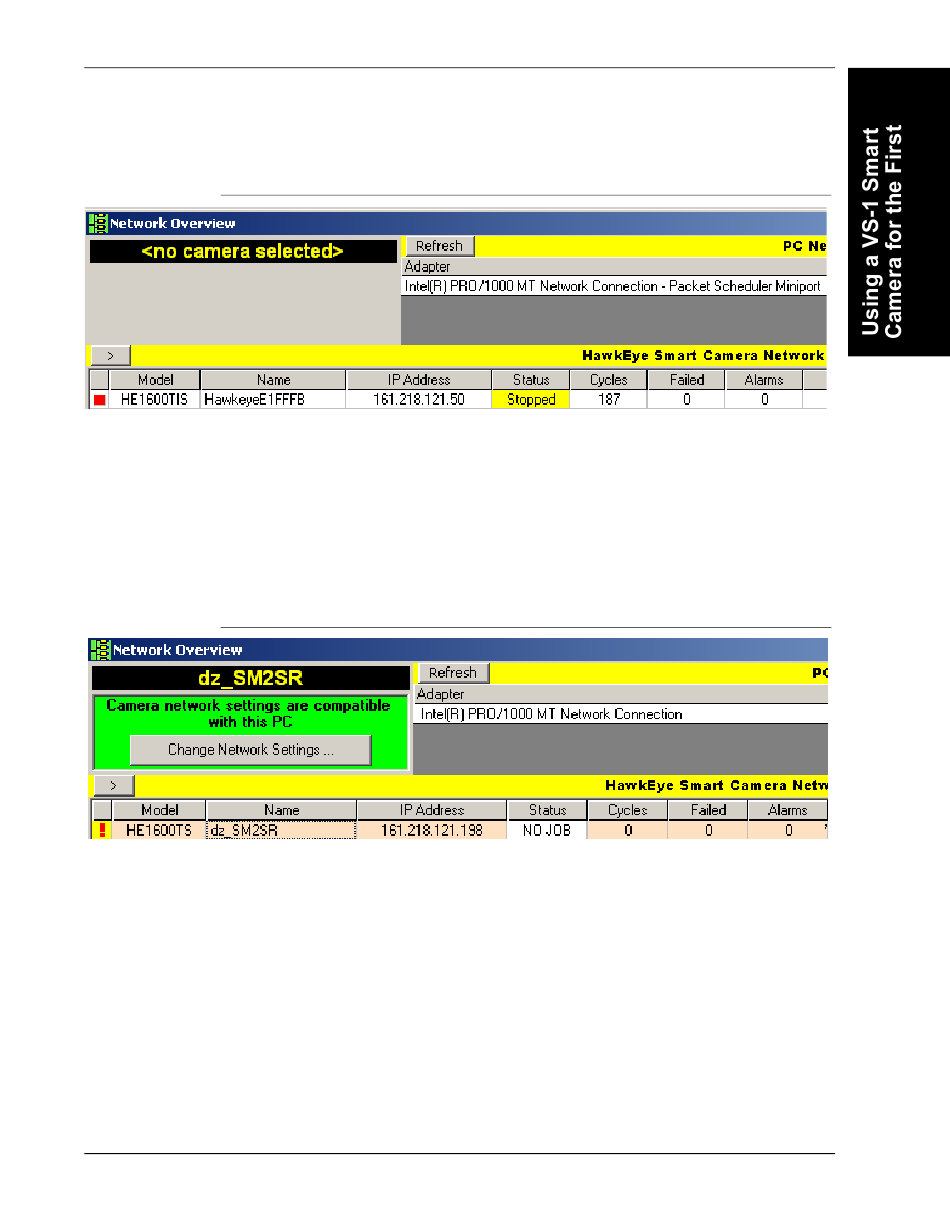

FIGURE 1–2.
Your camera should appear in the network overview list. The camera
name will be of the form HawkeyeXXXXXX, where the X's represent
the last part of the camera's MAC address.
Click on the row that lists your camera. The network information area
5.
should update and display the Change Network Settings ... button, as
shown in Figure 1–3.
FIGURE 1–3.
If the info area displays a red background identifying a camera
6.
communication problem, it means that the camera and the PC, even
though connected to the same network, are not using the same
logical IP addressing. See "Setting Up Network Communications" in
the Visionscape® Smart Camera Guide to correct the communication
problem.
Click the Change Network Settings button, which displays the login
7.
screen. Enter the default user name (hawkeye) and password
("vision") and click OK. You will see the Change HawkEye Network
Settings dialog box (Figure 1–4), which allows you to change the
name of your camera.
v4.1.0, February 2010
Establishing a Network Connection and Making a FrontRunner™ Device
Network Overview Screen — No Camera Selected
Network Overview Screen — Camera Selected
Getting Started with the VS-1 Smart Camera
1
1-3
