Chapter 2
The VS-1 Smart Camera in Action - Simple Examples
FIGURE 2–5.
Continue clicking
22.
Notice that the value for NumBlobs changes as the image changes.
Now, let's display output information.
23.
Maximize the Editor.
24.
In the left pane of the Editor, highlight Blob Tool.
25.
In the right pane of the Editor, click the Show Output Datums button,
26.
as shown in Figure 2–6.
2-8 Getting Started with the VS-1 Smart Camera

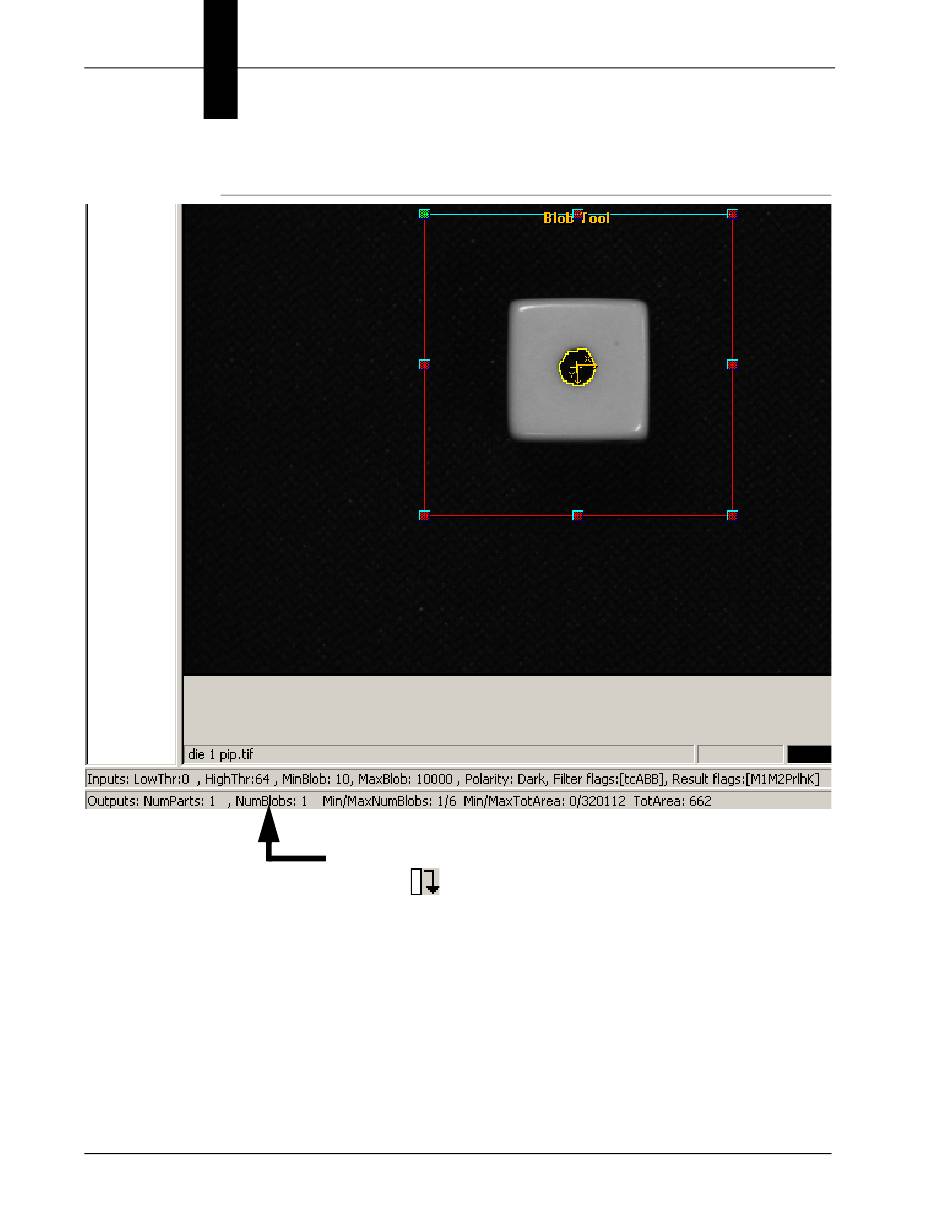

NumBlobs Displays Number of Pips on the Die
to display the remaining images.
