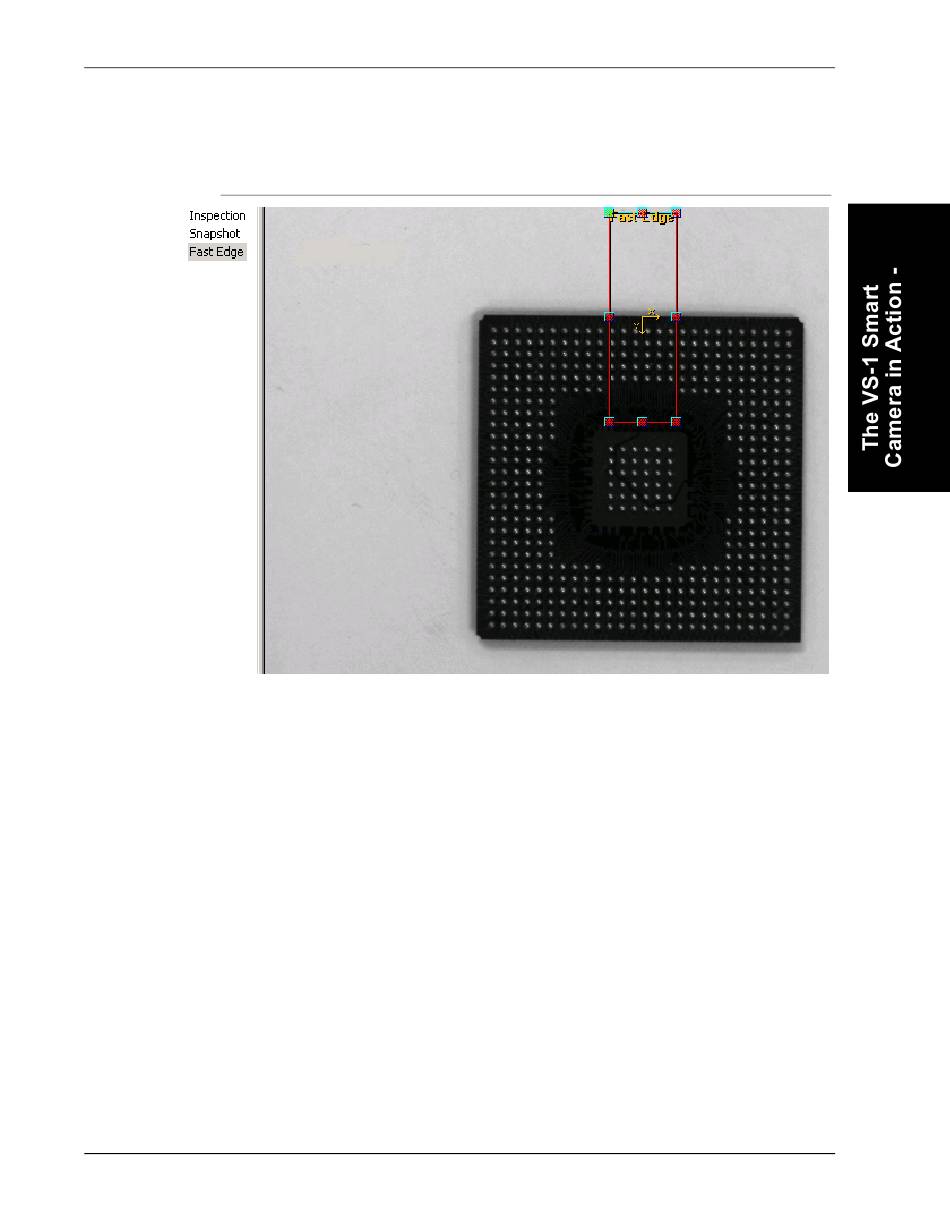

FIGURE 2–20.
Highlight Top Fast Edge in the Step Tree (left pane).
16.
Adjust the following Top Fast Edge properties:
17.
–
–
–
Highlight Snapshot in the Step Tree (left pane). Right click Snapshot
18.
and click Insert Into. FrontRunner™ displays the Insert Step window.
Double click on Fast Edge Tool to insert a second one into the
Snapshot.
Highlight the second Fast Edge in the Step Tree (left pane), right
19.
click, and then click Rename. Rename it to Left Fast Edge.
Adjust the ROI for Left Fast Edge so that it looks like the image in
20.
Figure 2–21.
v4.1.0, February 2010
Chip01.tif with One Fast Edge Tool Adjusted
Scan Direction — Set to Top to Bottom
Transition color — Set to Light to Dark
Gradient Threshold — Set to 50
