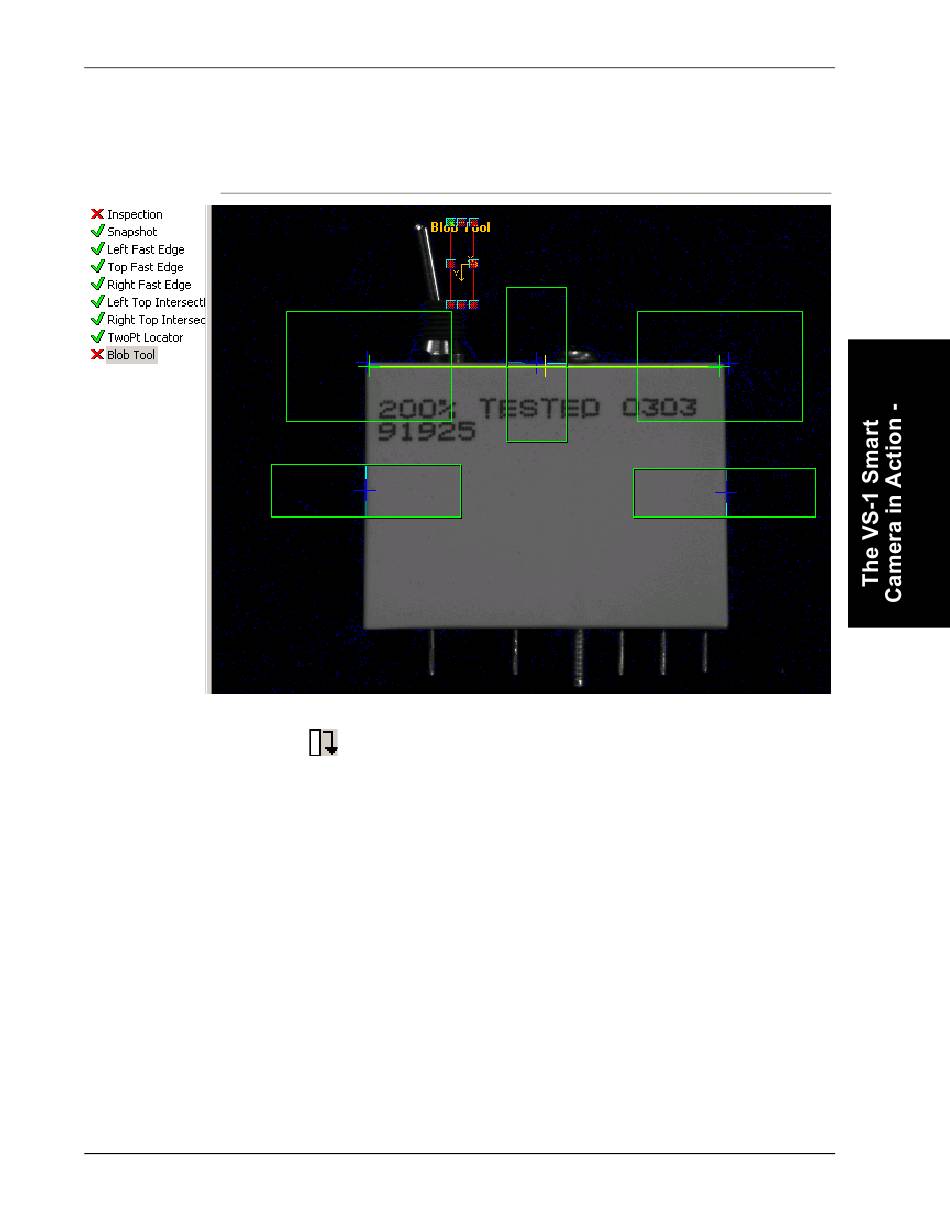

FIGURE 3–21.
Click
57.
Because we used a TwoPt Locator in this Job, FrontRunner™ can
find the switch even when the opto is rotated.
In Figure 3–22, even though the opto is rotated to the left a couple of
degrees, the Job finds the switch. The Job passes, because the
switch is in the correct position for a pass.
v4.1.0, February 2010
Job Fails
again.
Getting Started with the VS-1 Smart Camera
Advanced Example Using Multiple Tools
3
3-17
