Chapter 2
The VS-1 Smart Camera in Action - Simple Examples
FIGURE 2–33.
FIGURE 2–34.
Select Point:Pt from Left Top IntersectLines Meas.
53.
Click OK.
54.

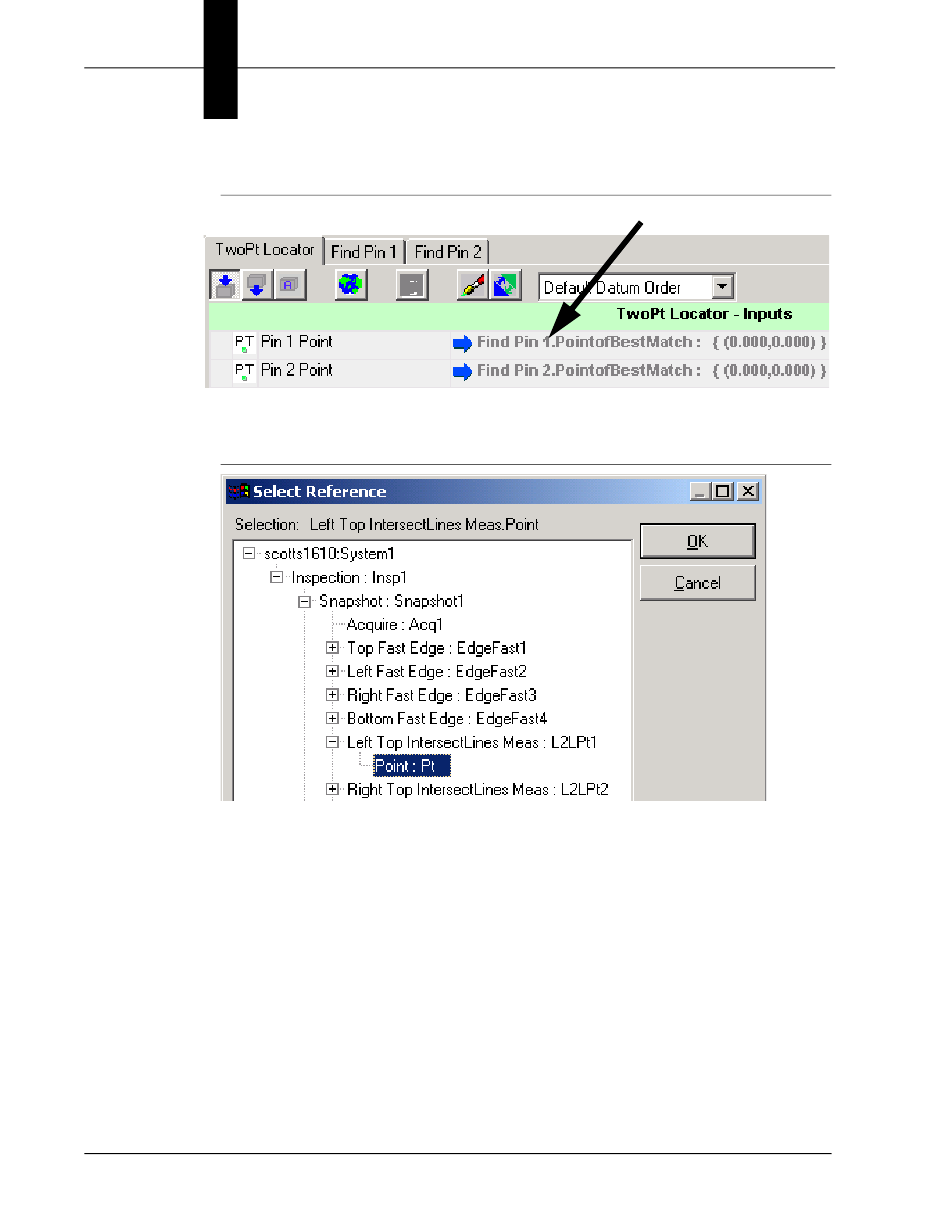

To select the reference for Pin 2 Point, click in the area to the right of
55.
the blue arrow (Figure 2–35), and click on the three dots, which
displays the Select Reference window, as shown in Figure 2–36.
2-32 Getting Started with the VS-1 Smart Camera
Selecting Reference for Pin 1 Point
Select Reference Window
Click Here
