Chapter 3
The VS-1 Smart Camera in Action - Advanced Example

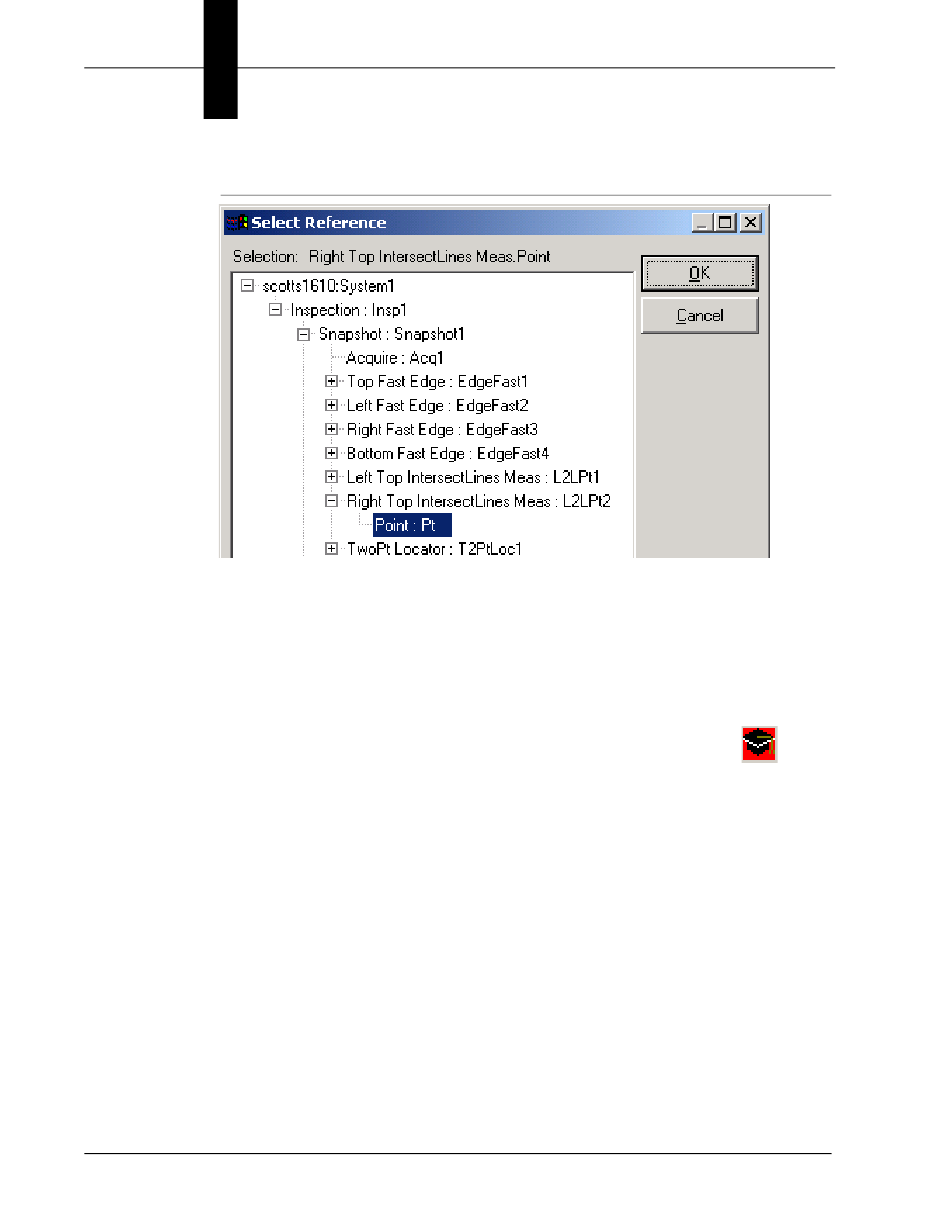

FIGURE 3–18.
Select Point:Pt from Right Top IntersectLines Meas.
48.
Click OK.
49.
In the FrontRunner™ Edit window, TwoPt Locator and the Train
button will display a red box until you train the tool. Also, the boxes
around the untrained tool will remain dotted lines until trained.
To train the Two Pt Locator tool, highlight it and then click
50.
Your setup should appear as shown in Figure 3–19.
