Microscan VS-1 Getting Started page 43

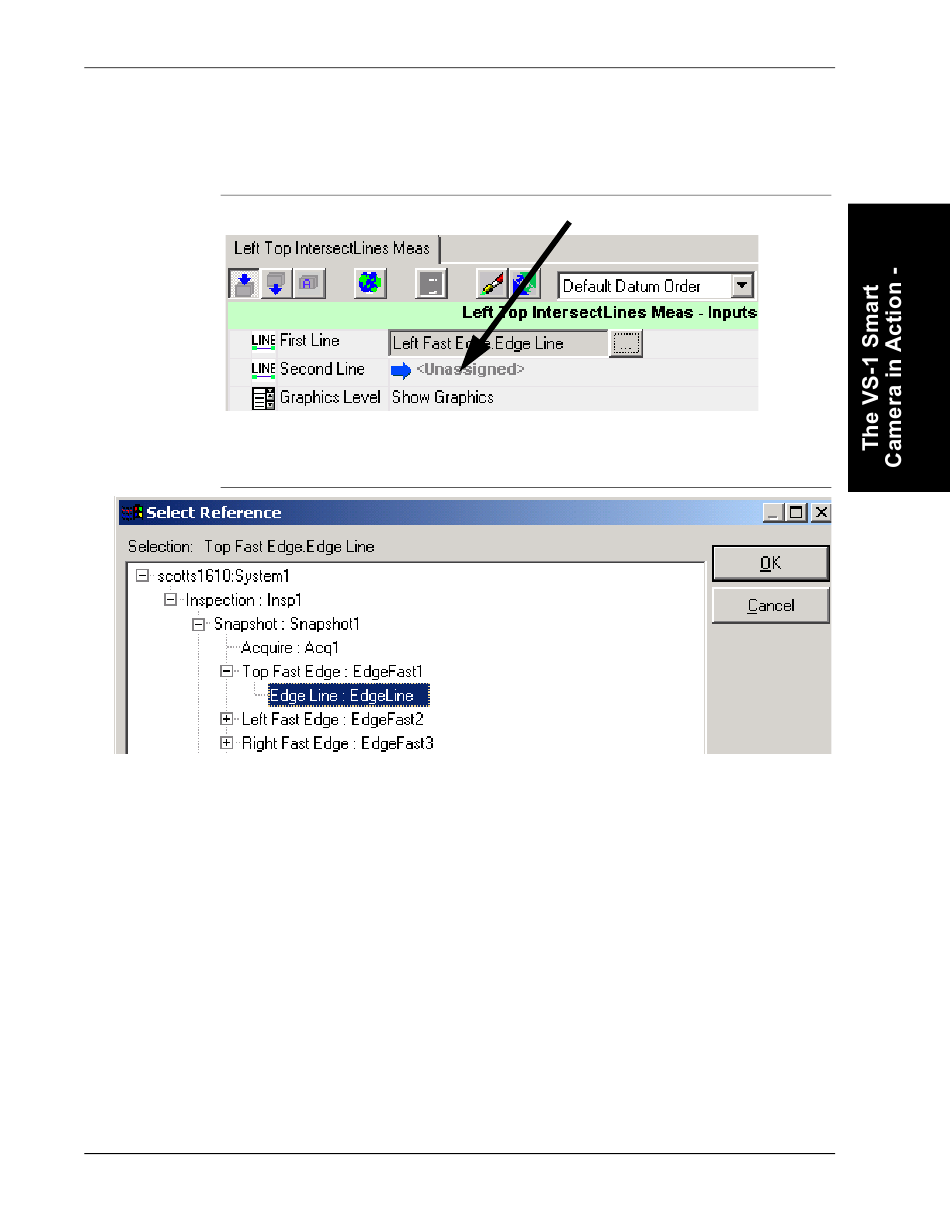

FIGURE 2–27.
FIGURE 2–28.
Select Edge Line:EdgeLine from Top Fast Edge.
42.
Click OK.
43.
Highlight Right Top IntersectLines Meas in the Step Tree (left pane).
44.
To select the reference for First Line, click in the area to the right of
45.
the blue arrow (Figure 2–29), and click on the three dots, which
displays the Select Reference window, as shown in Figure 2–30.
v4.1.0, February 2010
Selecting Reference for Second Line
Select Reference Window
Getting Started with the VS-1 Smart Camera
Simple Fast Edge Tool
Click Here
2
2-29
