The VS-1 Smart Camera in Action - Simple Examples
Start creating a new Job by clicking Create New Program, and then
6.

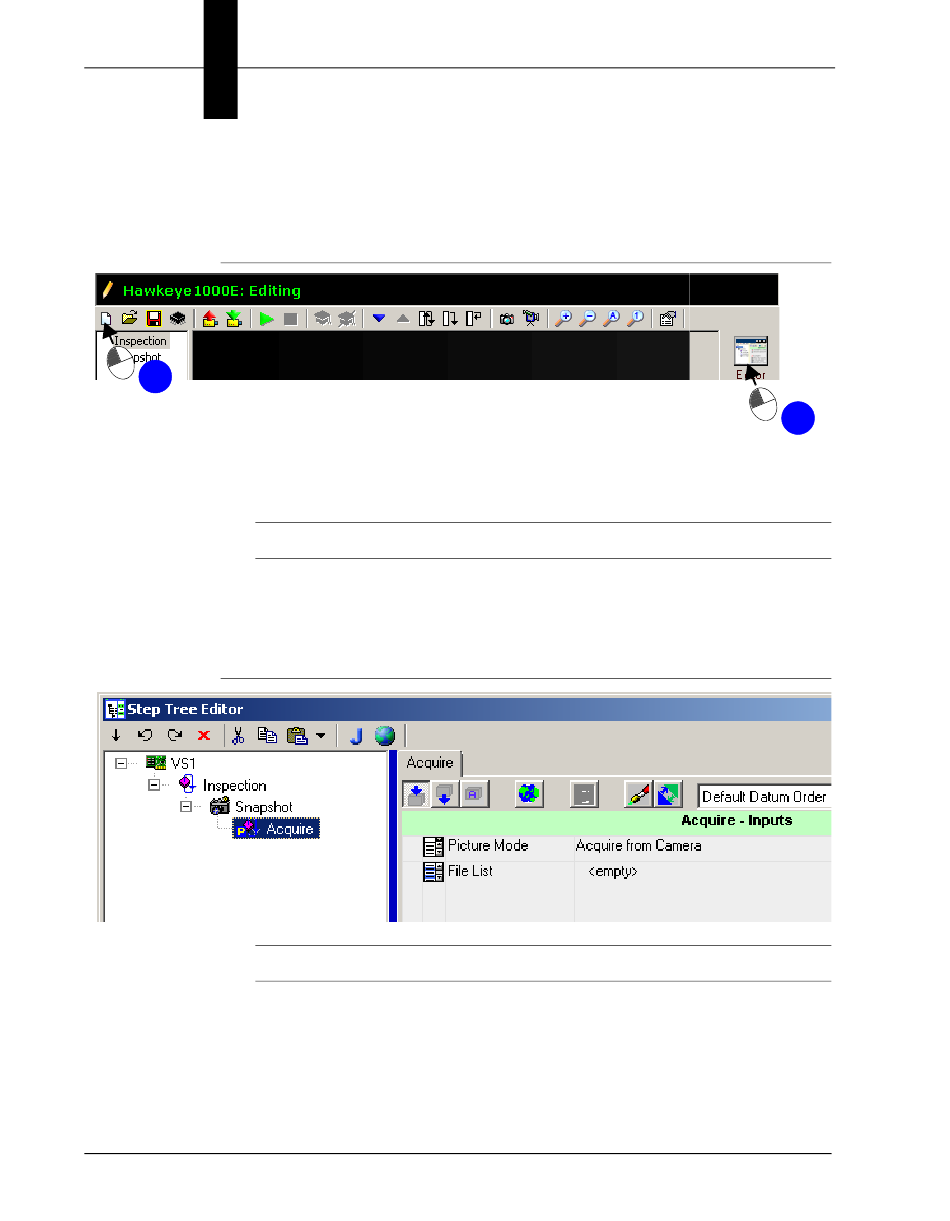

Editor, as shown in Figure 2–1.
FIGURE 2–1.
1
The camera will change to Edit Mode (indicated by the pencil next to
the camera icon).
Note: Maximize or minimize the Editor as needed.
In the left pane of the Step Tree Editor window, click on the Step
7.
named "Acquire".
FIGURE 2–2.
Note: You may have to click the Acquire tab in the properties window.
FrontRunner™ displays the Acquire properties page.
Adjust the following Acquire properties:
8.
–
2-4 Getting Started with the VS-1 Smart Camera
Start Creating New Job
Acquire Step
Picture Mode — Set to Load Images from File.
