Microscan VS-1 Getting Started page 64

Chapter 3
The VS-1 Smart Camera in Action - Advanced Example
Highlight TwoPt Locator in the Step Tree (left pane). Right click TwoPt
27.
Locator and click Insert Into. FrontRunner™ displays the Insert Step
window. Double click on Blob Tool to insert it into the TwoPt Locator.
Right click on the Blob Filter and select Delete. Click yes to confirm
28.
the deletion of the Blob Filter.

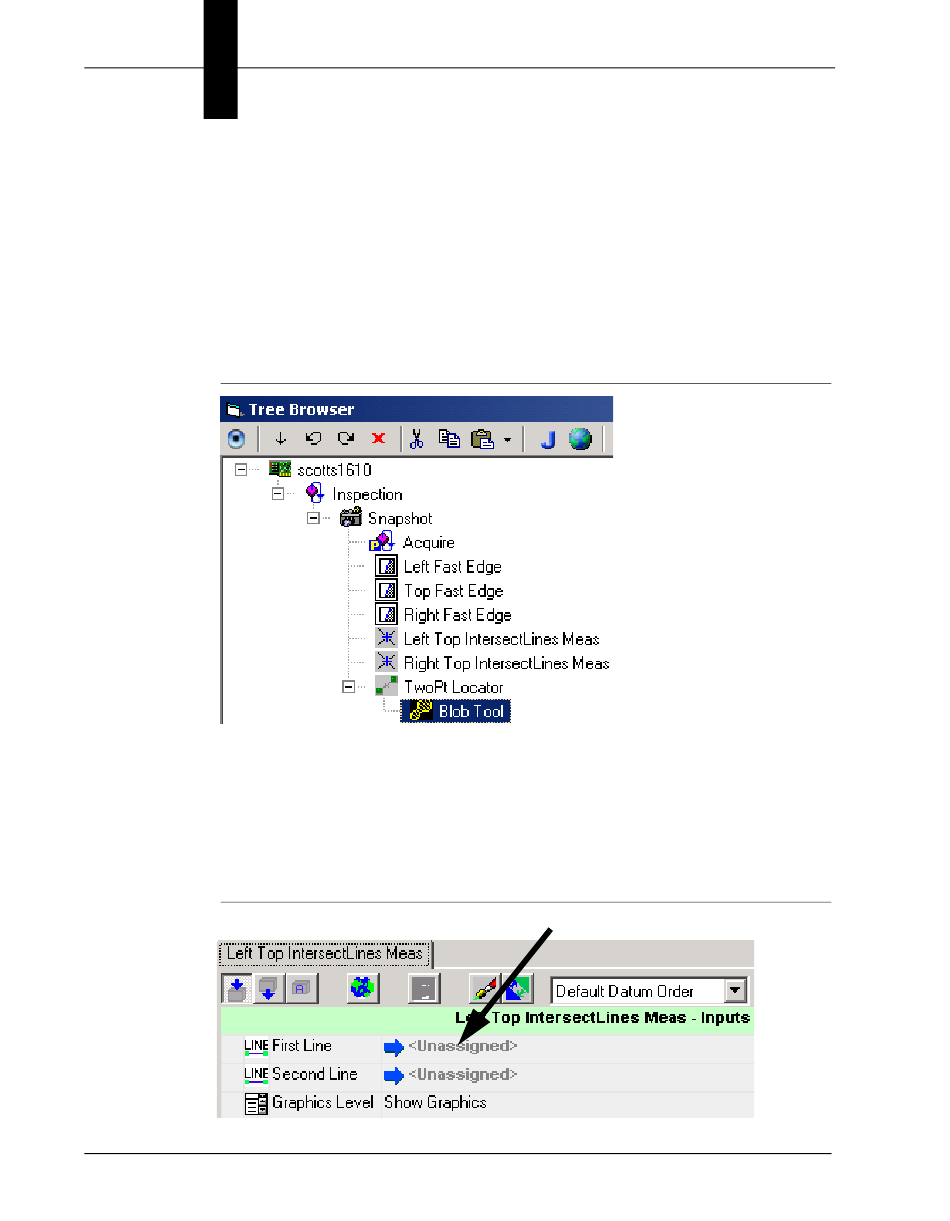

When you are finished, the Job should look like the Job in Figure 3–6.
FIGURE 3–6.
Highlight Left Top IntersectLines Meas in the Step Tree (left pane).
29.
To select the reference for First Line, click in the area to the right of
30.
the blue arrow (Figure 3–7), and click on the three dots, which
displays the Select Reference window, as shown in Figure 3–8.
FIGURE 3–7.
3-8 Getting Started with the VS-1 Smart Camera
Step Tree
Selecting Reference for First Line
Click Here
v4.1.0, February 2010
