FIGURE 2–35.
FIGURE 2–36.

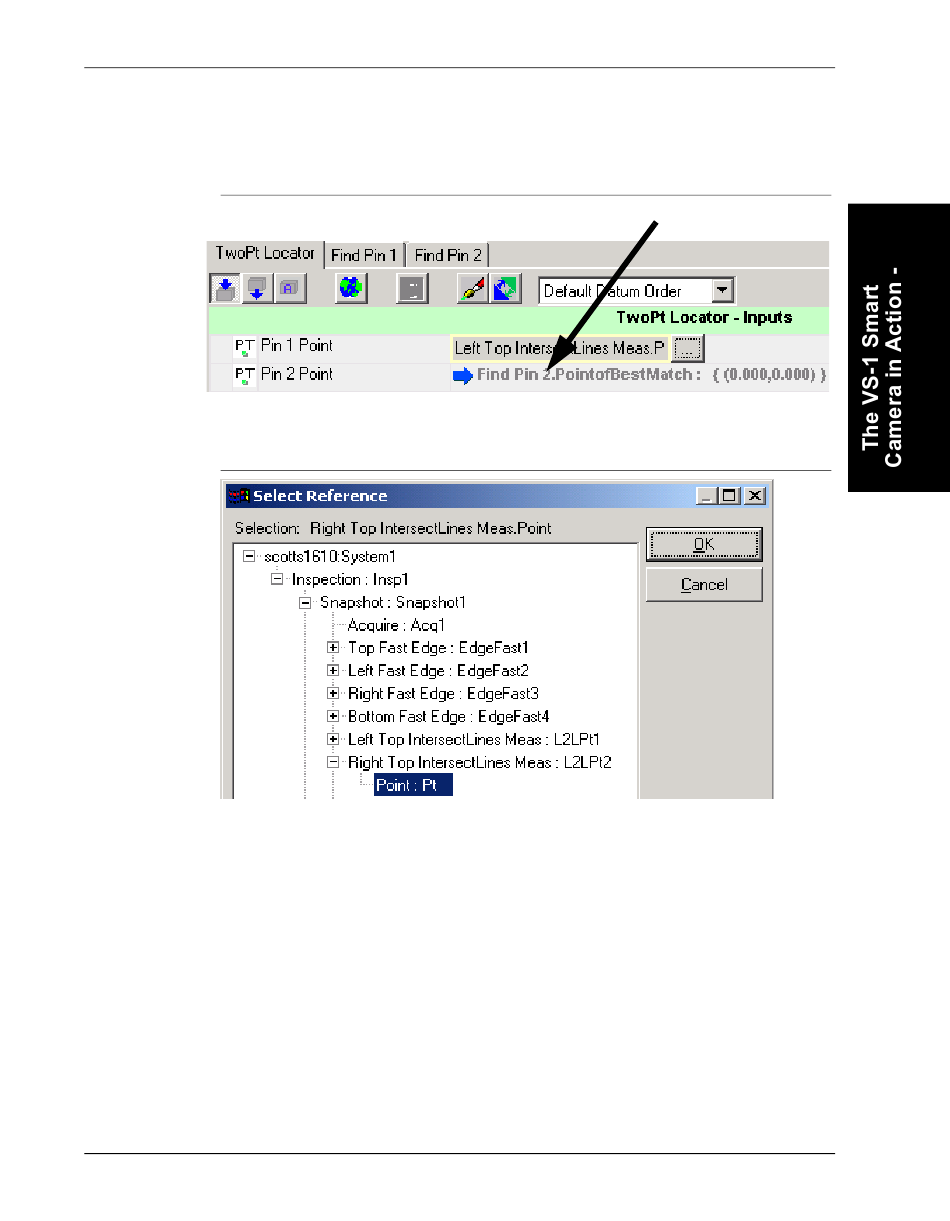

Select Point:Pt from Right Top IntersectLines Meas.
56.
Click OK.
57.
Your setup for TwoPt Locator should appear as shown in
58.
Figure 2–37.
