Microscan VS-1 Getting Started page 13

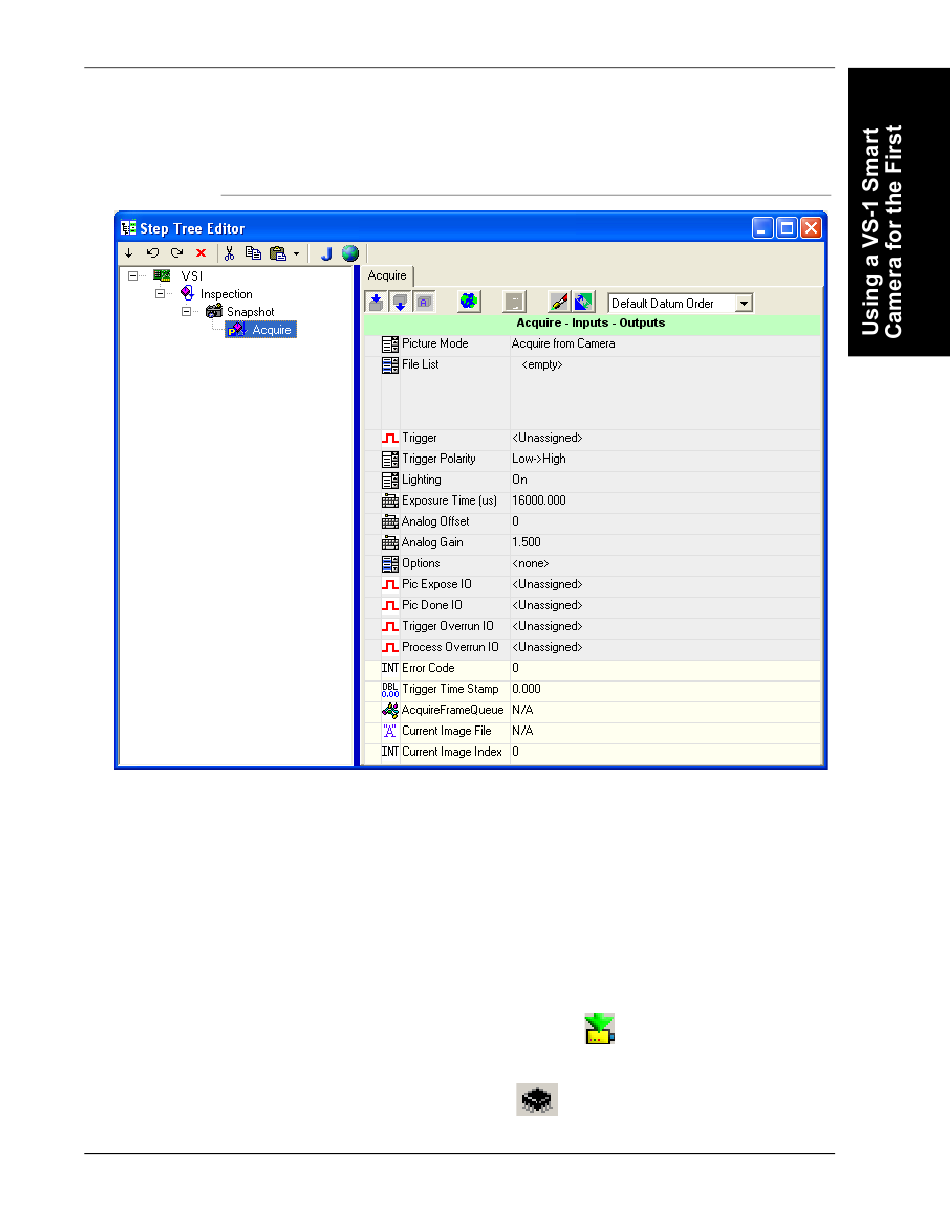

FIGURE 1–7.
Select the step named "Acquire". After you select the Acquire step,
7.
the right hand side of the editor will display the various parameters
and settings that can be modified. Of immediate interest is Exposure
Time. You can click on the spreadsheet cell with the current Exposure
Time value to change it. Reducing the exposure time will darken the
image, while increasing it will make the image brighter.
So far, the Job you are manipulating exists only on the PC. You are
using the Job in "Setup Mode", which allows you to create, edit, and
debug Jobs on the PC.
To transfer the Job to the camera, click
8.
If you want the Job to be non-volatile (still be loaded on the camera
when it is rebooted), then click
v4.1.0, February 2010
Hierarchy of Steps
Getting Started with the VS-1 Smart Camera
Creating a New Job to Acquire Images
1
1-7
