Microscan VS-1 Getting Started page 44

Chapter 2
The VS-1 Smart Camera in Action - Simple Examples
FIGURE 2–29.
FIGURE 2–30.
Select Edge Line:EdgeLine from Right Fast Edge.
46.
Click OK.
47.

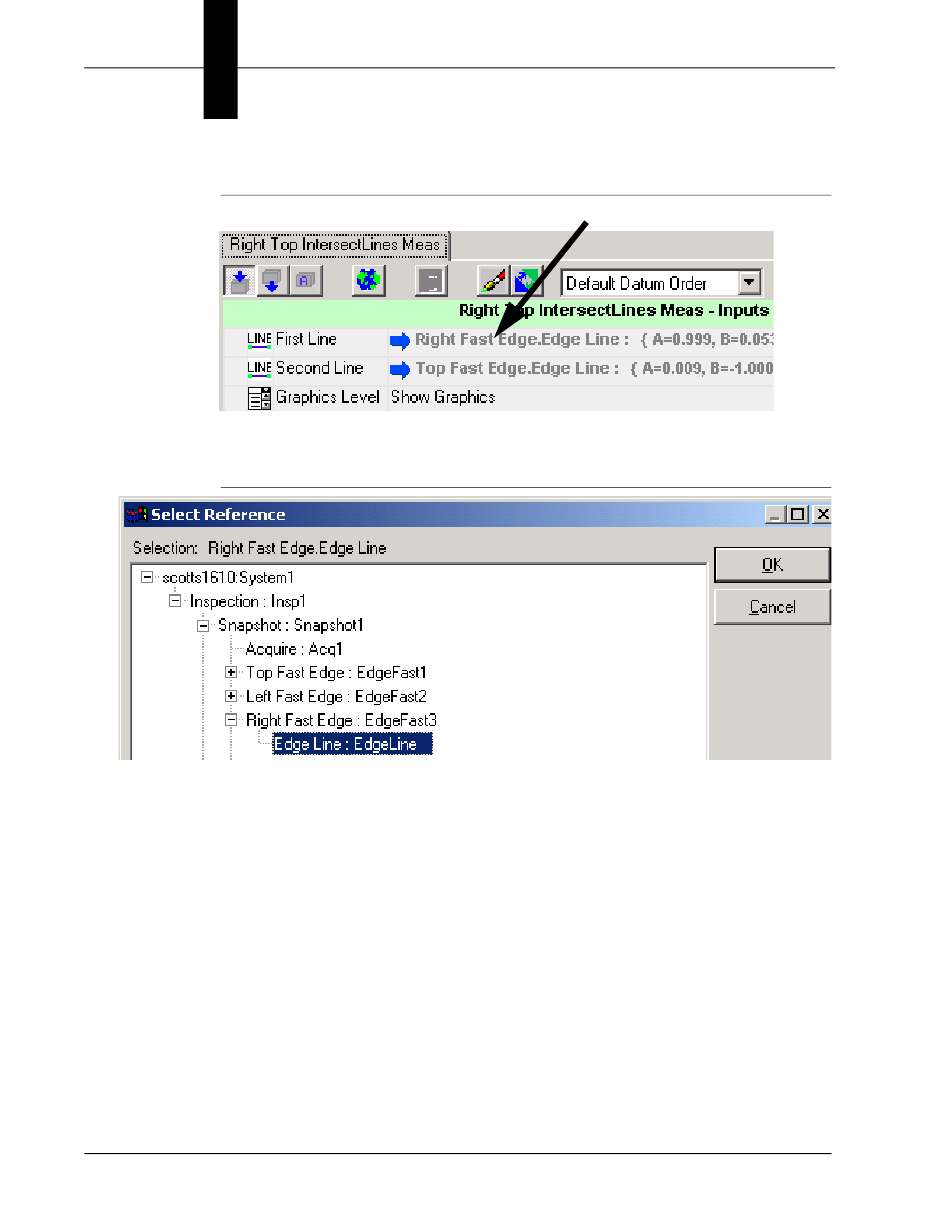

To select the reference for Second Line, click in the area to the right
48.
of the blue arrow (Figure 2–31), and click on the three dots, which
displays the Select Reference window, as shown in Figure 2–32.
2-30 Getting Started with the VS-1 Smart Camera
Selecting Reference for First Line
Select Reference Window
Click Here
