Chapter 2
The VS-1 Smart Camera in Action - Simple Examples

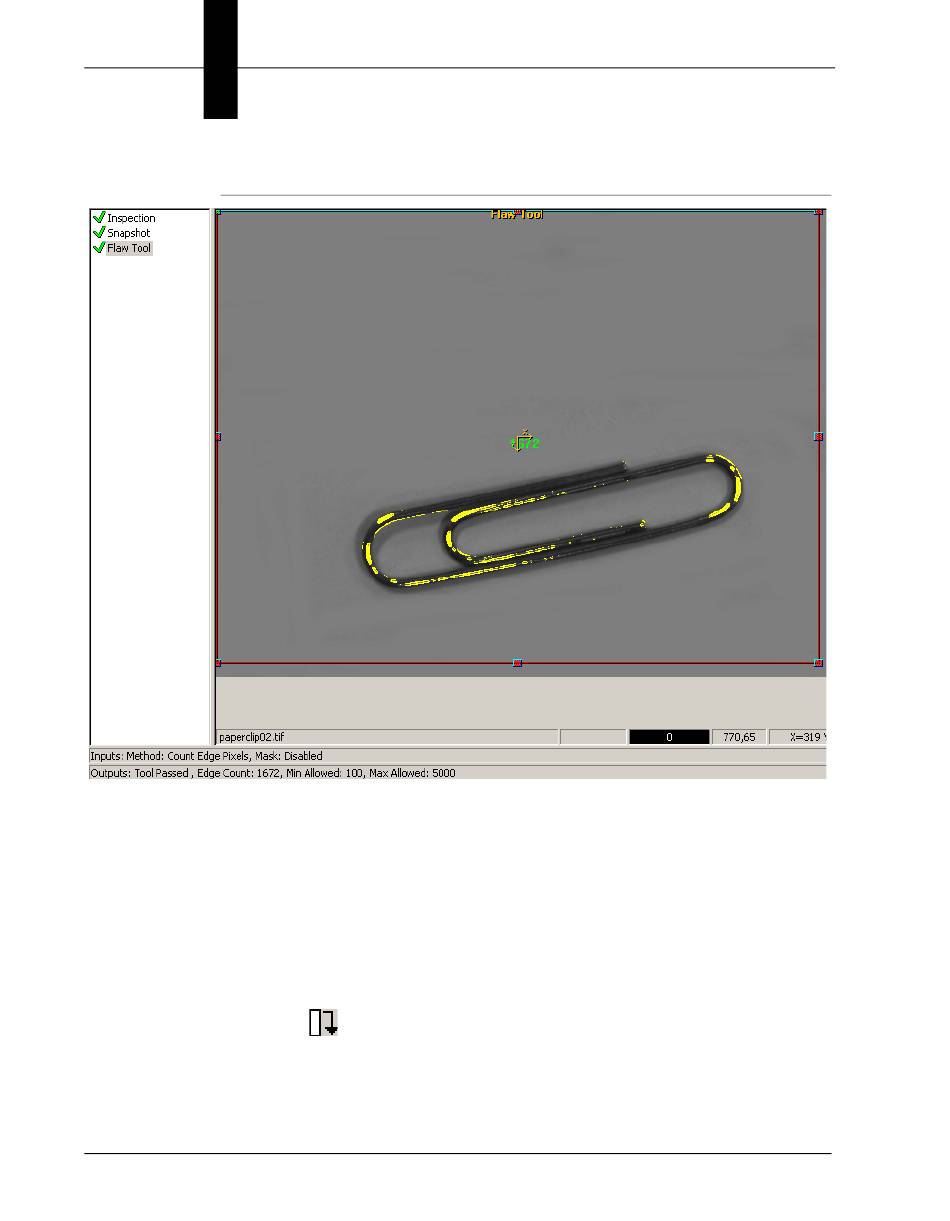

FIGURE 2–14.
Notice the following properties and their values:
–
–
–
The inspection passed because the Edge Count was between the
minimum and maximum allowed.
Click
18.
FrontRunner™ displays the empty window and the information that
the Flaw Tool failed, as shown in Figure 2–15.
2-16 Getting Started with the VS-1 Smart Camera
Paperclip 02 Passes Inspection
Edge Count — 1672
Min Allowed — 100
Max Allowed — 5000
again.
