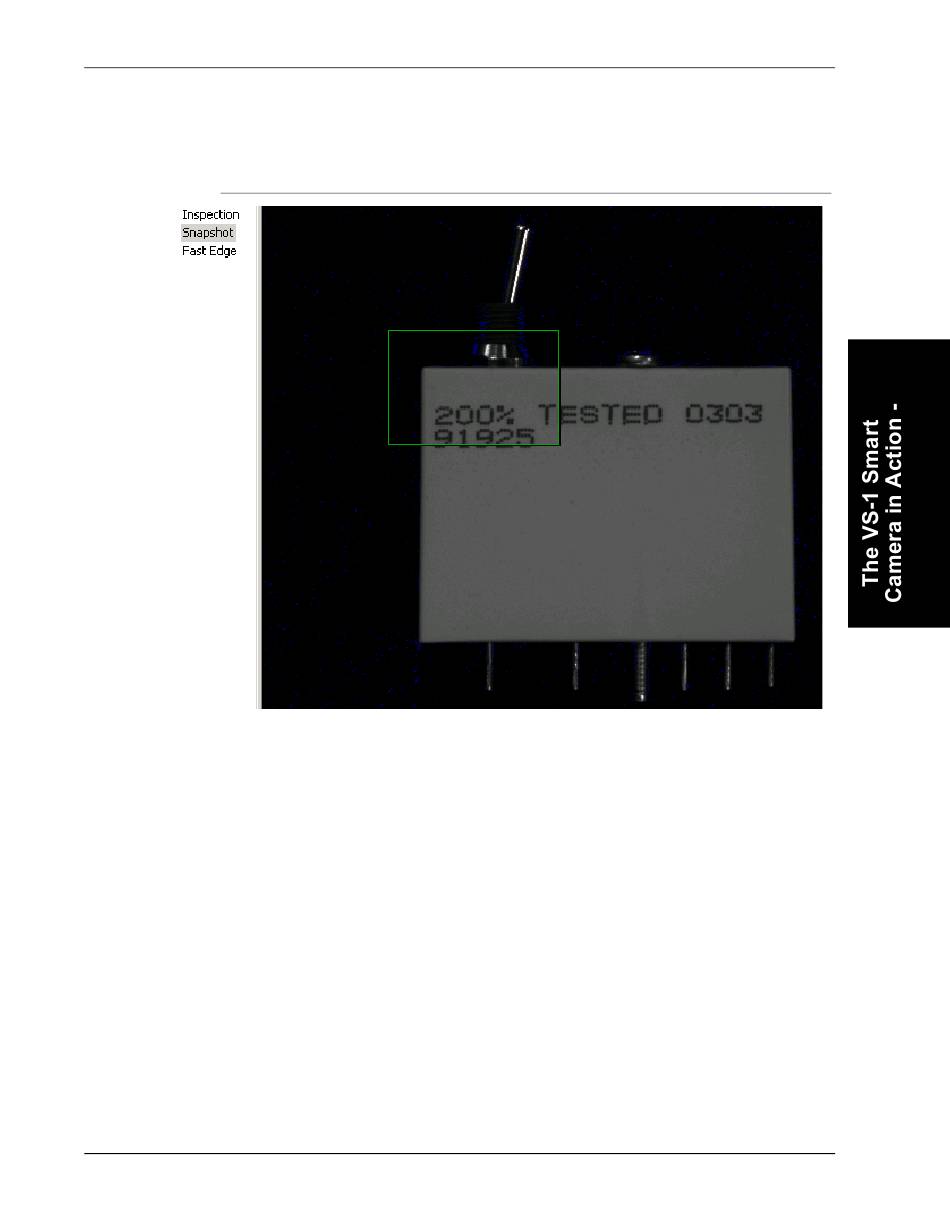

FIGURE 3–4.
Highlight Snapshot in the Step Tree (left pane). Right click Snapshot
15.
and click Insert Into. FrontRunner™ displays the Insert Step window.
Double click on Fast Edge to insert a second Fast Edge into the
Snapshot.
Highlight Snapshot in the Step Tree (left pane). Right click Snapshot
16.
and click Insert Into. FrontRunner™ displays the Insert Step window.
Double click on Fast Edge to insert a third Fast Edge into the
Snapshot.
Rename the three Fast Edge tools:
17.
a.
v4.1.0, February 2010
Opto01.tif
Highlight the first Fast Edge in the Step Tree (left pane), right
click, and then click Rename. Rename the first Fast Edge to Left
Fast Edge.
