Chapter 2
The VS-1 Smart Camera in Action - Simple Examples

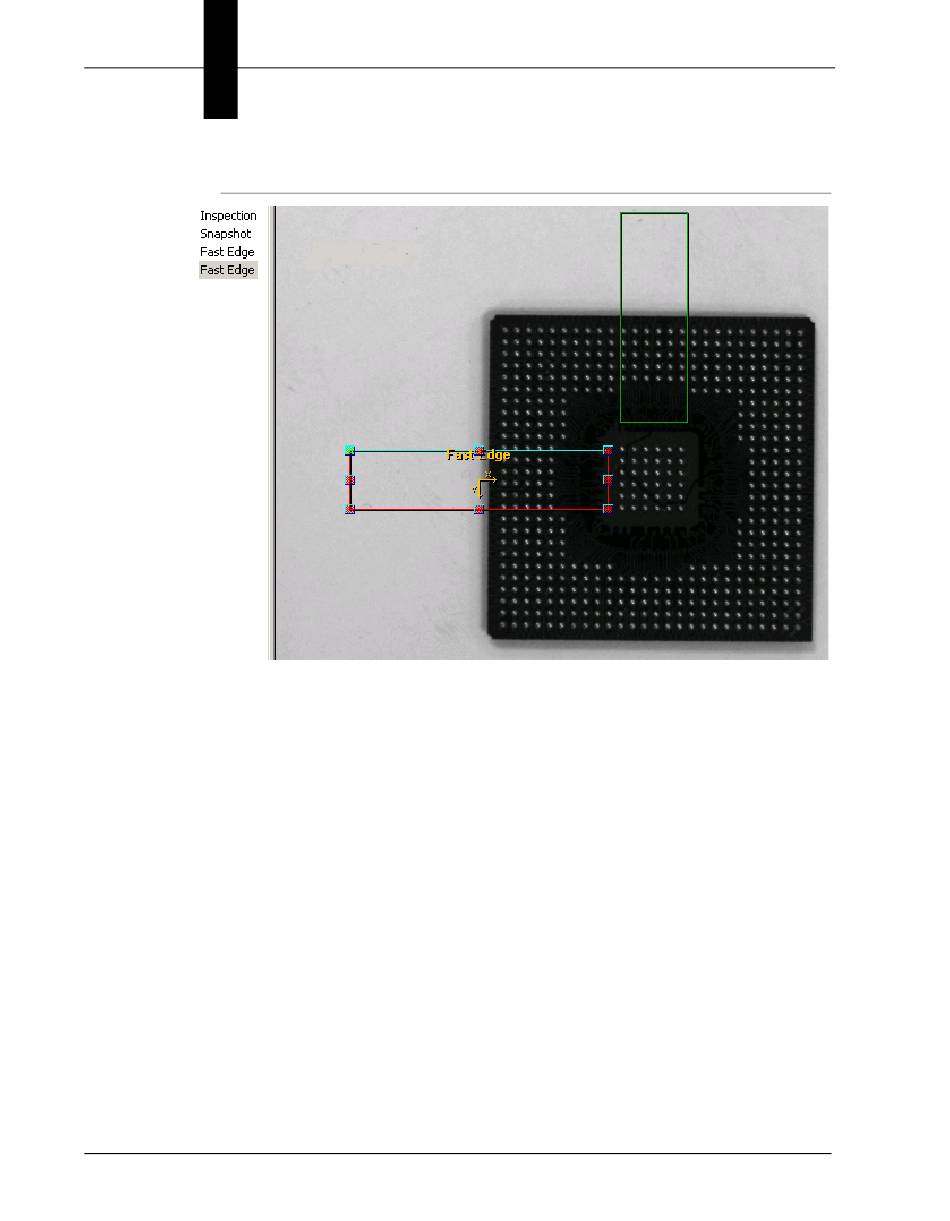

FIGURE 2–21.
Highlight Left Fast Edge in the Step Tree (left pane).
21.
Adjust the following Left Fast Edge properties:
22.
–
–
–
Highlight Snapshot in the Step Tree (left pane). Right click Snapshot
23.
and click Insert Into. FrontRunner™ displays the Insert Step window.
Double click on Fast Edge Tool to insert a third one into the Snapshot.
Highlight Fast Edge in the Step Tree (left pane), right click, and then
24.
click Rename. Rename it to Right Fast Edge.
Adjust the ROI for Right Fast Edge so that it looks like the image in
25.
Figure 2–22.
2-24 Getting Started with the VS-1 Smart Camera
Chip01.tif with Two Fast Edge Tool Adjusted
Scan Direction — Set to Left to Right
Transition color — Set to Light to Dark
Gradient Threshold — Set to 50
