Microscan VS-1 Getting Started page 69

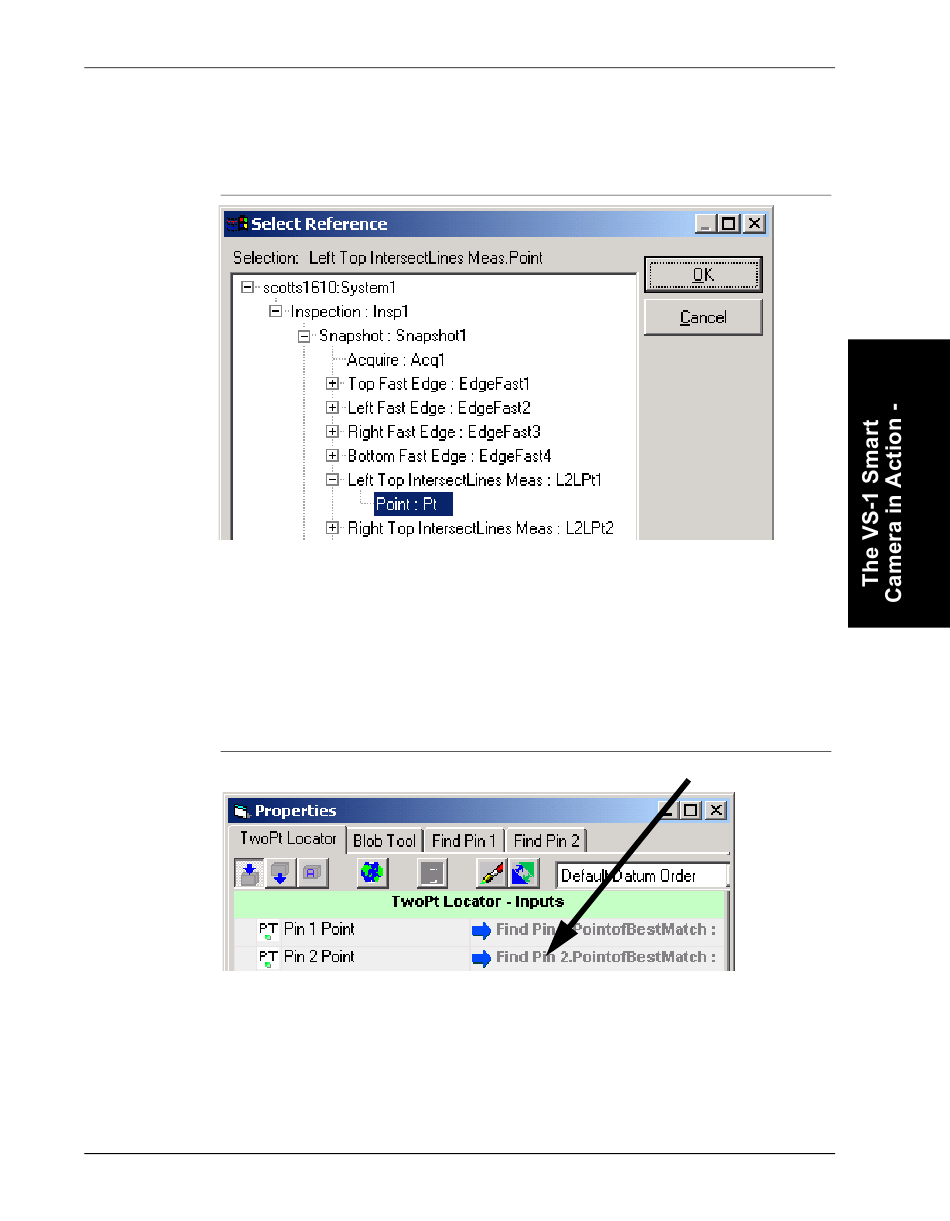

FIGURE 3–16.
Select Point:PT from Left Top IntersectLines Meas.
45.
Click OK.
46.
To select the reference for Pin 2 Point, click in the area to the right of
47.
the blue arrow (Figure 3–17), and click on the three dots, which
displays the Select Reference window, as shown in Figure 3–18.
FIGURE 3–17.
v4.1.0, February 2010
Select Reference Window
Selecting Reference for Second Line
Getting Started with the VS-1 Smart Camera
Advanced Example Using Multiple Tools
Click Here
3
3-13
