Microscan VS-1 Getting Started page 41

a.
b.
Highlight Snapshot in the Step Tree (left pane). Right click Snapshot
36.
and click Insert Into. FrontRunner™ displays the Insert Step window.
Click the Analysis Tools tab. Double click on TwoPt Locator to insert it
into the Snapshot.

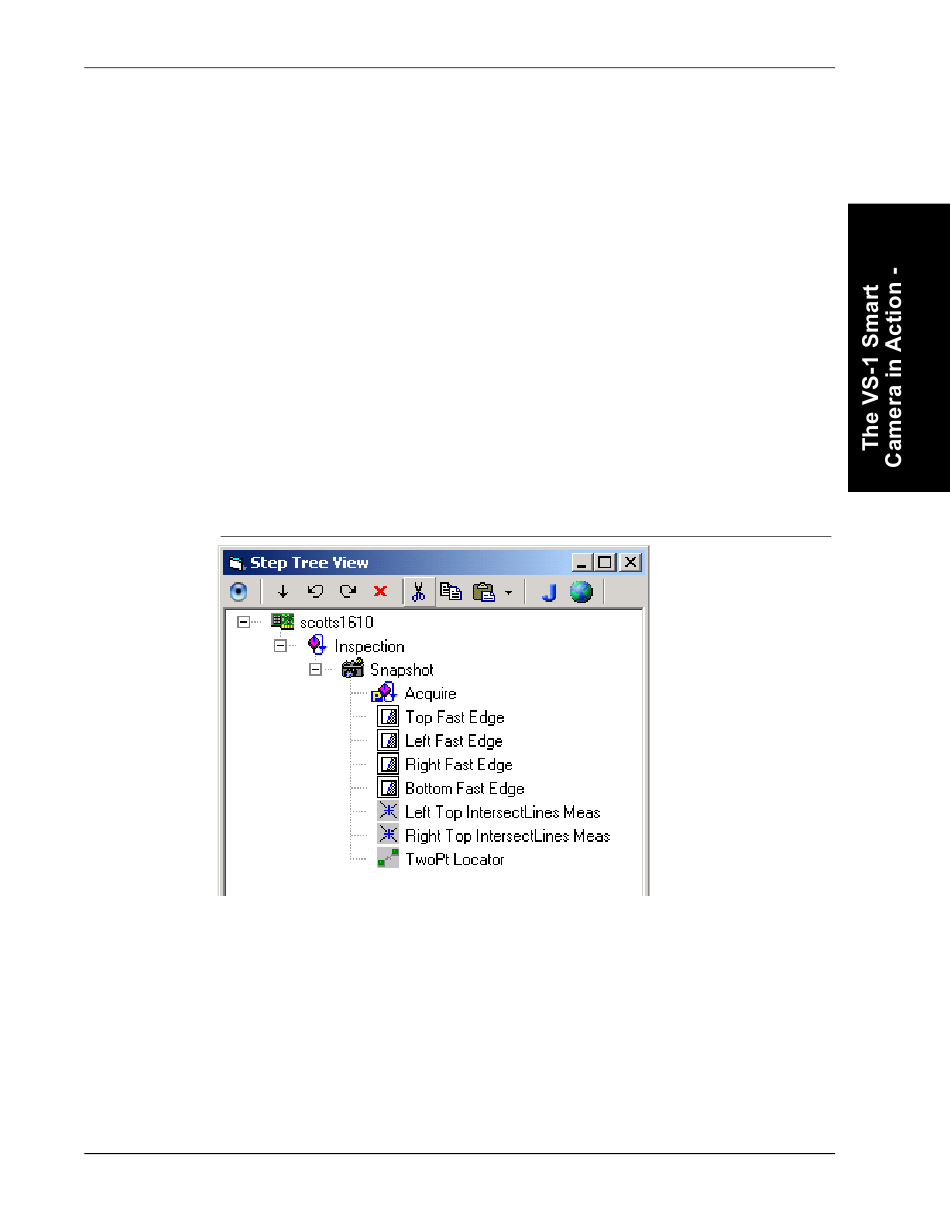

When you are finished, the Job should look like the Job in
Figure 2–24.
FIGURE 2–24.
Highlight Left Top IntersectLines Meas in the Step Tree (left pane).
37.
To select the reference for First Line, click in the area to the right of
38.
the blue arrow (Figure 2–25), and click on the three dots, which
displays the Select Reference window, as shown in Figure 2–26.
v4.1.0, February 2010
Highlight the first IntersectLines Meas, right click, and then click
Rename. Rename the first IntersectLines Meas to Left Top
IntersectLines Meas.
Highlight the second IntersectLines Meas, right click, and then
click Rename. Rename the second IntersectLines Meas to Right
Top IntersectLines Meas.
Step Tree
Getting Started with the VS-1 Smart Camera
Simple Fast Edge Tool
2-27
2
