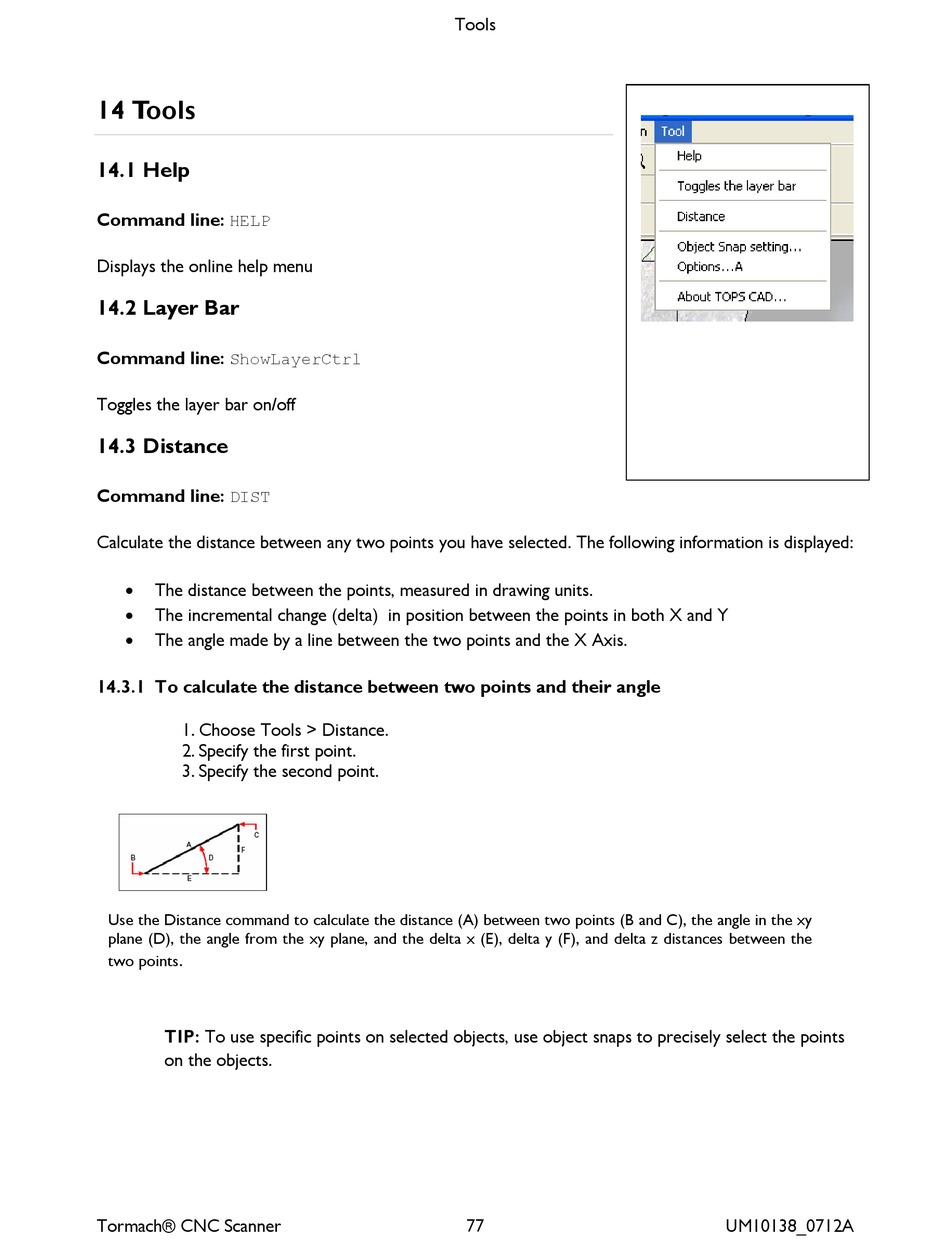

14 Tools

14.1 Help

Command line: HELP
Displays the online help menu

14.2 Layer Bar

Command line: ShowLayerCtrl
Toggles the layer bar on/off

14.3 Distance

Command line: DIST
Calculate the distance between any two points you have selected. The following information is displayed:

The distance between the points, measured in drawing units.

The incremental change (delta) in position between the points in both X and Y

The angle made by a line between the two points and the X Axis.

14.3.1 To calculate the distance between two points and their angle

1. Choose Tools > Distance.
2. Specify the first point.
3. Specify the second point.
Use the Distance command to calculate the distance (A) between two points (B and C), the angle in the xy
plane (D), the angle from the xy plane, and the delta x (E), delta y (F), and delta z distances between the
two points.
TIP: To use specific points on selected objects, use object snaps to precisely select the points
on the objects.
