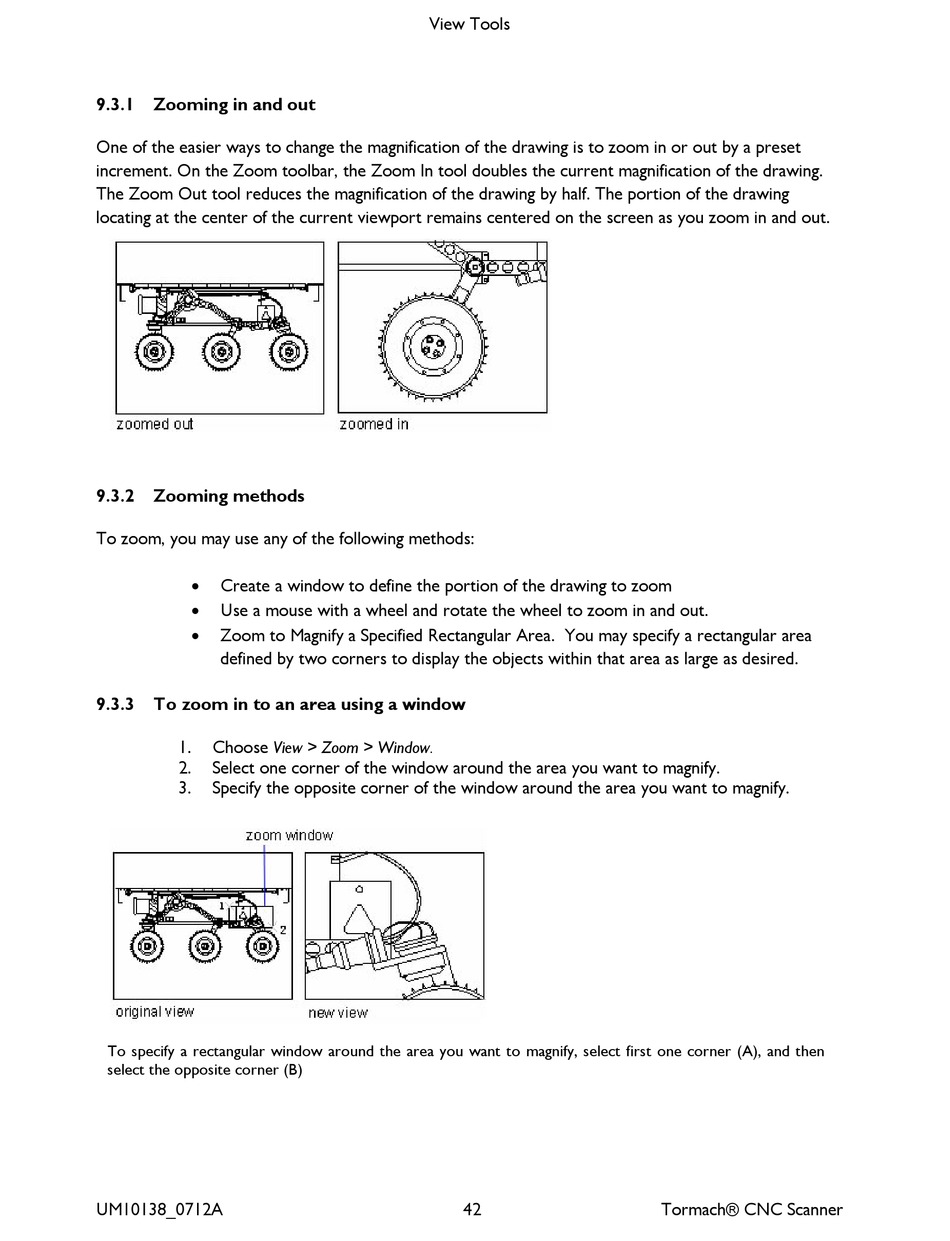

Zooming in and out

One of the easier ways to change the magnification of the drawing is to zoom in or out by a preset
increment. On the Zoom toolbar, the Zoom In tool doubles the current magnification of the drawing.
The Zoom Out tool reduces the magnification of the drawing by half. The portion of the drawing
locating at the center of the current viewport remains centered on the screen as you zoom in and out.
9.3.2

Zooming methods

To zoom, you may use any of the following methods:

Create a window to define the portion of the drawing to zoom

Use a mouse with a wheel and rotate the wheel to zoom in and out.

Zoom to Magnify a Specified Rectangular Area. You may specify a rectangular area
defined by two corners to display the objects within that area as large as desired.
9.3.3

To zoom in to an area using a window

1. Choose View > Zoom > Window.
2. Select one corner of the window around the area you want to magnify.
3. Specify the opposite corner of the window around the area you want to magnify.
To specify a rectangular window around the area you want to magnify, select first one corner (A), and then
select the opposite corner (B)
