10.7 Move Objects

Command line MOVE
You may move objects to a new place without changing the objects. You may type a coordinate value
for the new position in the dynamic input box. In addition to specifying base point or displacement point
on the drawing, You may also type coordinate value on the command line. The Vector option can also
be used to define a new position.

10.7.1 To move entities

1. Choose Modify > Move.
2. Select the objects, and then press Enter.
3. Specify the base point.
4. Specify the displacement point.

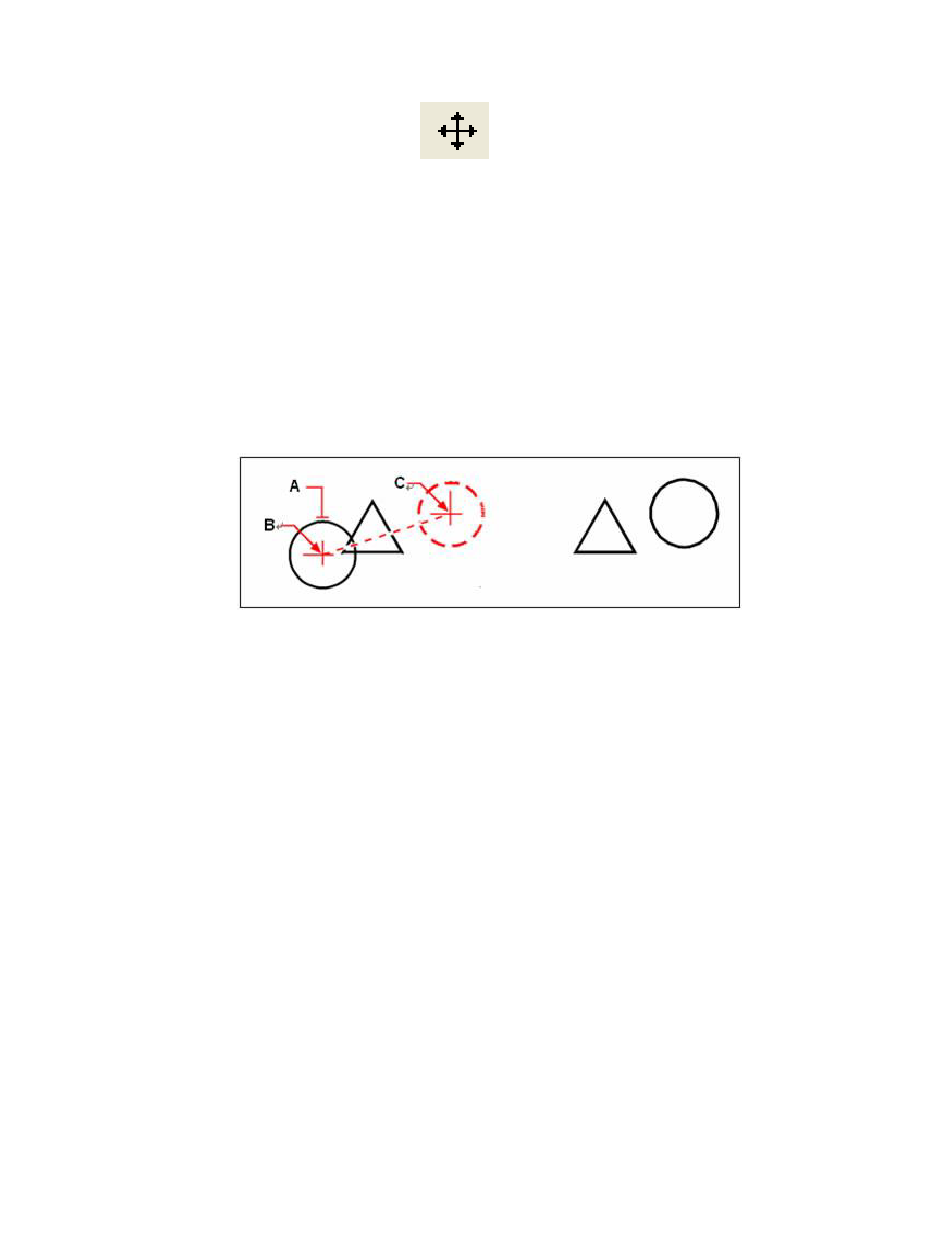

To move an object, select it (A), and then specify the base point (B) and the displacement point (C)
You may also move objects using grips. To move an object by dragging its grips, select the object to
highlight its grips, and then click the desired grip and drag it to a new position. The grip one selects
depends on the type of object the user is going to move For example, to move a line object, select the
midpoint grip. To move a curved object, such as an arc, circle, or ellipse, select the center point grip.
Not all objects can be moved using grips.

10.7.2 To move an object using grips

1. Select the object.
2. Click a grip to select it.
3. Drag the object to where it needs to be relocated.
4. Click to release.

10.8 Rotate Objects

Command line ROTATE
Rotate objects around a specified point. You may specify the rotated angle by specifying a point on the
drawing or entering the angle value directly. The direction that objects rotate depends on whether the
