7.2.2.1 To select objects using Window Polygon
1.
Activate an object modification command.
2.
On the command line, type wpolygon.
3.
Specify the vertices of the polygon.
4.
To complete the selection polygon, press Enter.

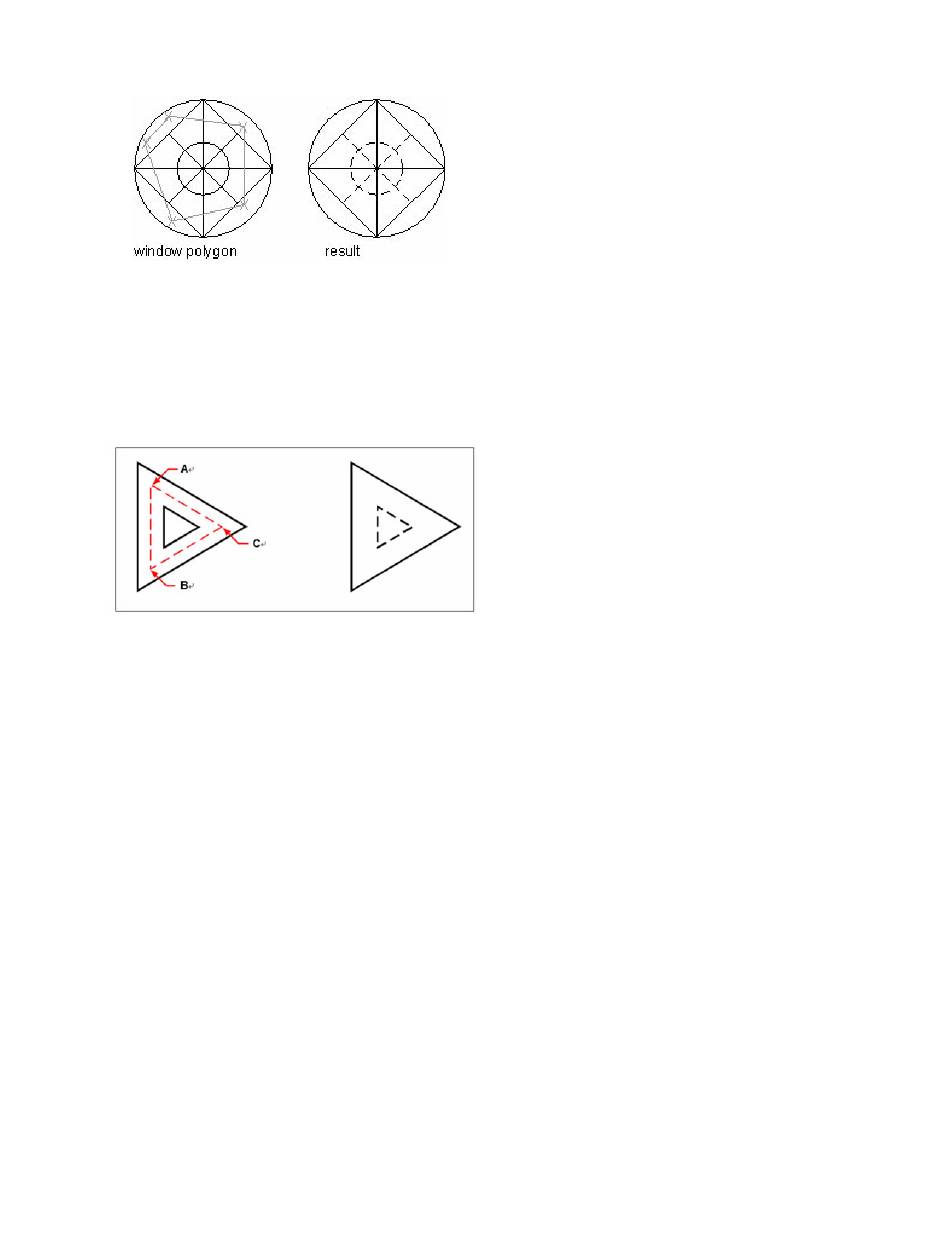

Window Polygon by specifying the vertices of the polygon (A, B, and C)
7.2.3
Specify a Selection Fence
It may be much easier to select entities in a complex drawing by using a selection fence. A selection
fence appears like a polyline and chooses only the entities it passes through.
7.2.3.1 To select objects using Fence
1. Activate an object modification command.
2. On the command line, type f.
3. Specify the endpoints of the Fence segments.
4. To complete the Fence, press Enter.
UM10138_0712A
Working with Drawing Objects
38
Tormach® CNC Scanner
